Accessories

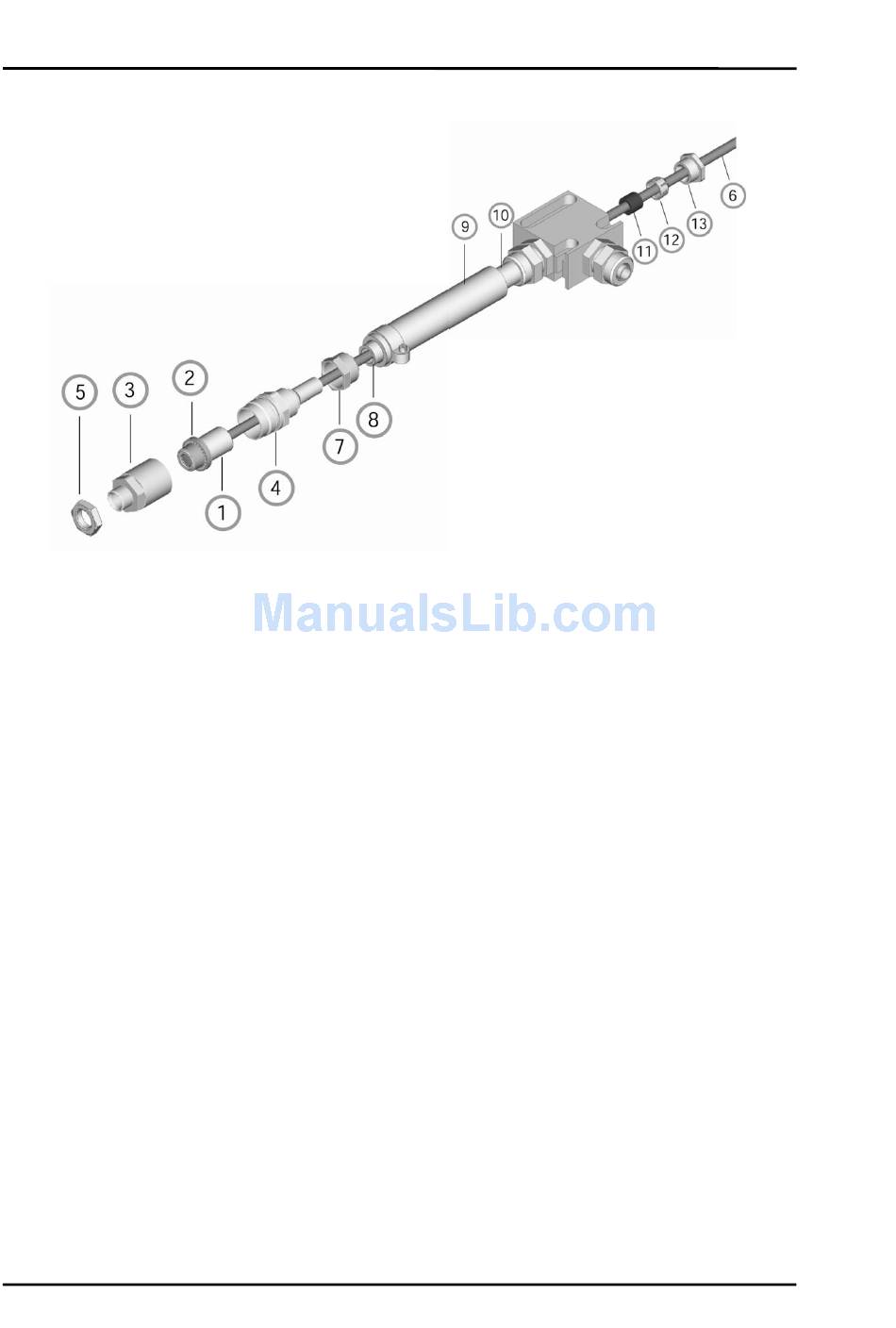

Figure 61: Air Cooling System: Purging Jacket and T-Adapter
The Air Cooling System consists of:
①
sensing head
②
inner plastic fitting (air purge jacket)
③
front part of the air-purging jacket
④
back part of the air-purging jacket
⑤
mounting nut
⑥
preinstalled cable between sensor and box, leading through the T-adapter
⑦
hose connecting nut
⑧
inner hose
⑨
outer hose
⑩
T-adapter
⑪
rubber washer
⑫
plastic compression fitting
⑬
cap
74
Rev. G Nov/2015
