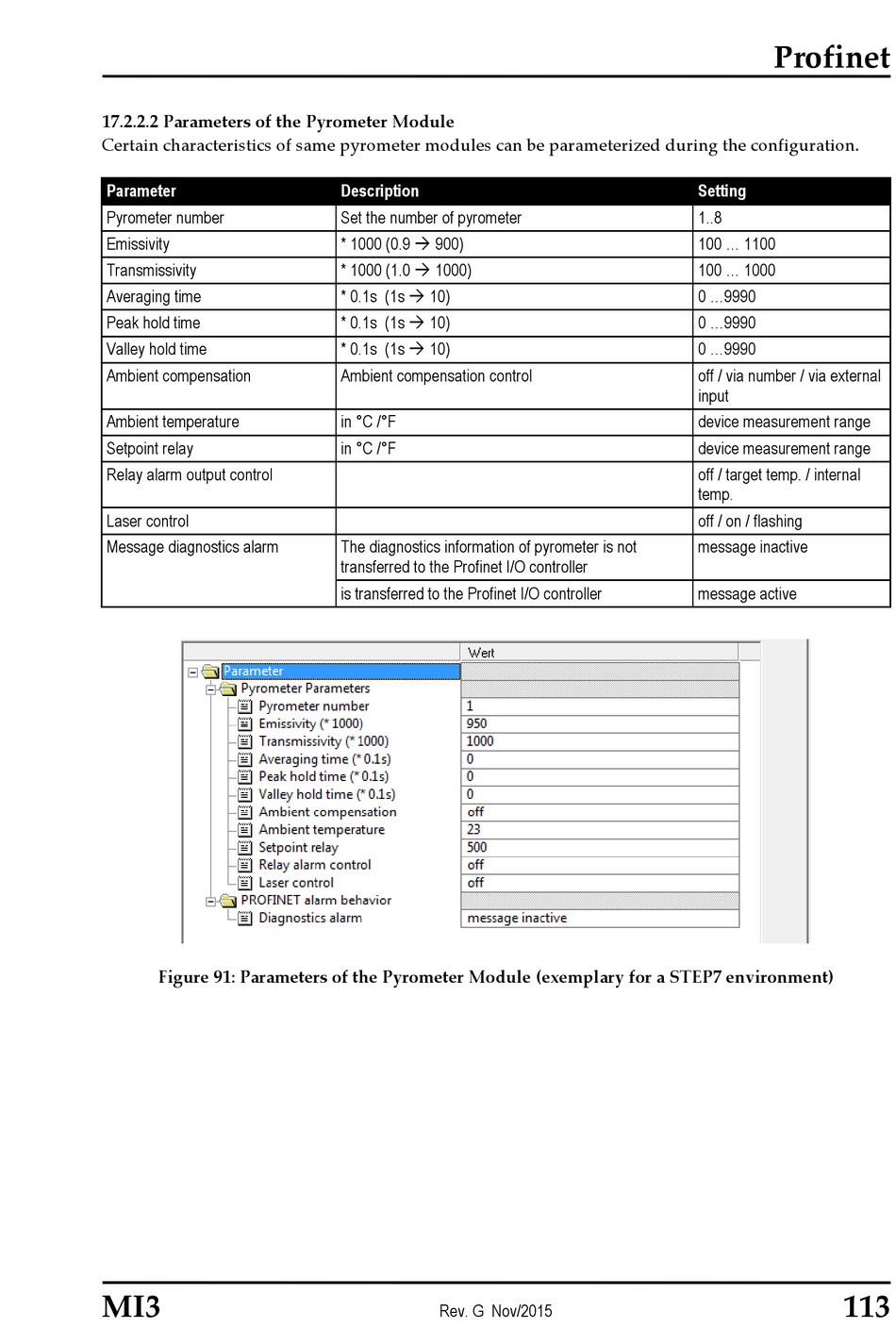

17.2.2.2 Parameters of the Pyrometer Module
Certain characteristics of same pyrometer modules can be parameterized during the configuration.
Parameter
Pyrometer number
Emissivity
Transmissivity
Averaging time
Peak hold time
Valley hold time
Ambient compensation
Ambient temperature
Setpoint relay
Relay alarm output control
Laser control
Message diagnostics alarm
Figure 91: Parameters of the Pyrometer Module (exemplary for a STEP7 environment)
MI3
Description
Set the number of pyrometer
* 1000 (0.9 900)
* 1000 (1.0 1000)
* 0.1s (1s 10)
* 0.1s (1s 10)
* 0.1s (1s 10)
Ambient compensation control
in °C /°F
in °C /°F
The diagnostics information of pyrometer is not
transferred to the Profinet I/O controller
is transferred to the Profinet I/O controller
Rev. G Nov/2015
Profinet
Setting
1..8
100 ... 1100
100 ... 1000
0 ...9990
0 ...9990
0 ...9990
off / via number / via external
input
device measurement range
device measurement range
off / target temp. / internal
temp.
off / on / flashing
message inactive
message active
