10.2.2 Fixed Mounting Bracket
10.2.3 Air Purge Jacket
For LTH sensing heads, the Air Purge Jacket is only available pre-mounted from the
factory (XXXMIACAJI)!
The air purge jacket is used to keep dust, moisture, airborne particles, and vapors away from the
sensing head. Clean, oil free air is recommended. The air purge jacket withstands ambient
temperatures up to 180°C (356°F) and has limited use for cooling purposes. The recommended air
flow rate is 30 to 60 l / min (0.5 to 1 cfm). The max. pressure is 5 bar (73 PSI).
70

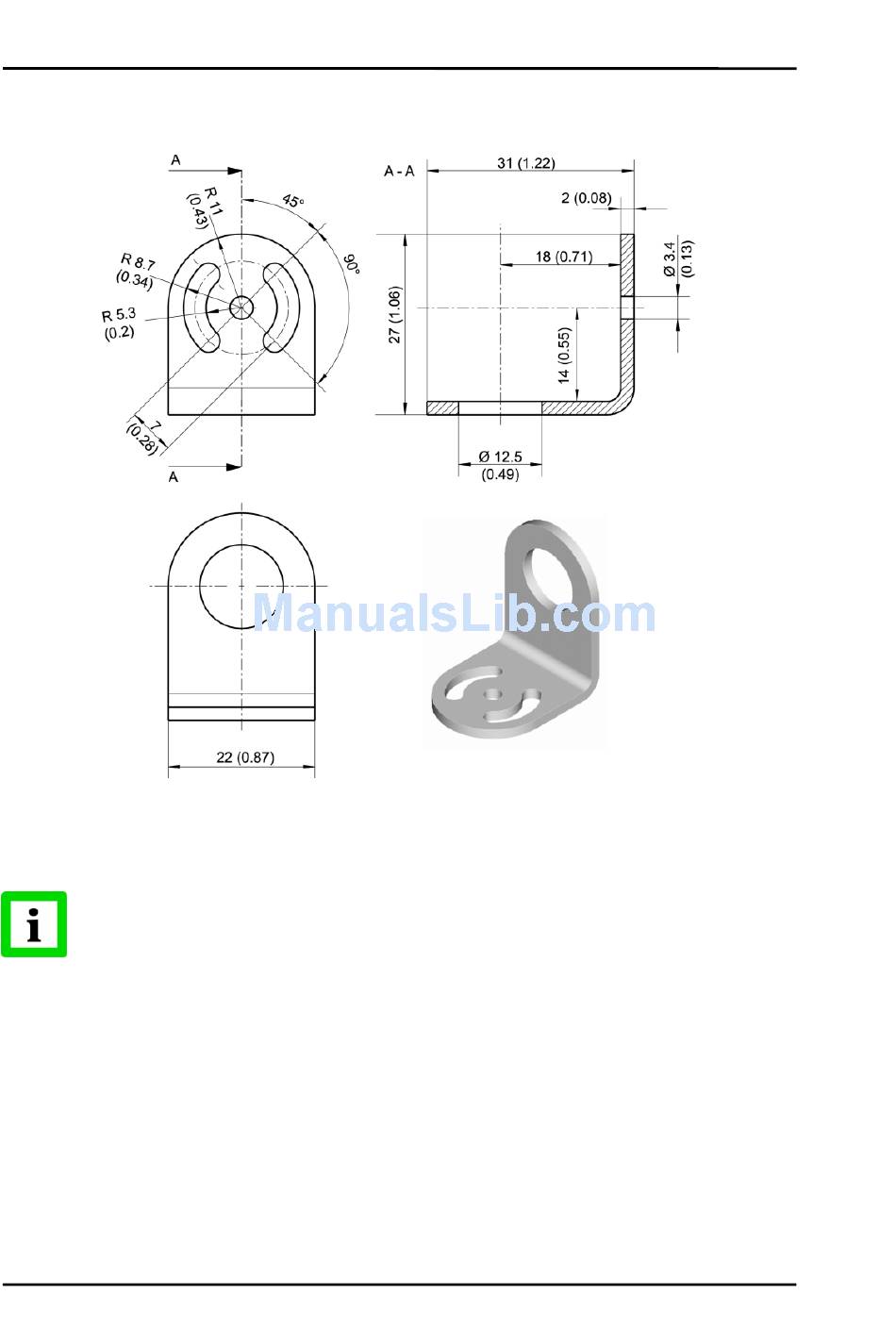

Figure 55: Fixed Mounting Bracket (XXXMIACFB)
Rev. G Nov/2015
