For correct temperature readings, the transmission of the close focus lens must be set via
the control panel in the communication box. See section 8.2
<Head>
Page, page 50!
Make sure the measuring head and the close focus lens are at the same temperature!
Figure 66: Sensing Head with Close Focus Lens (XXXMI3ACCFL)

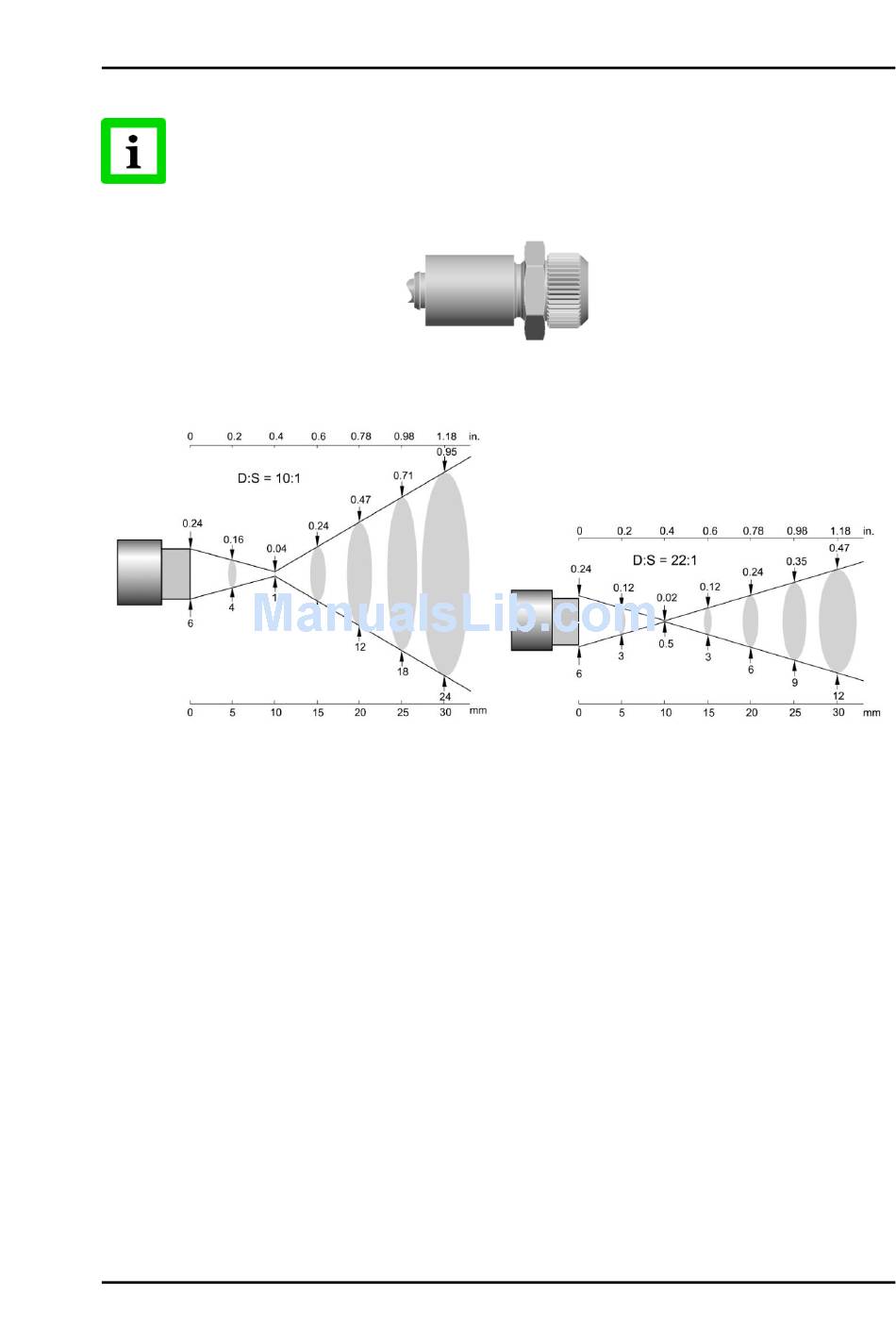

Figure 67: Spot Size Charts for Close Focus Lens
MI3
77
Rev. G Nov/2015
