OTS installation guide

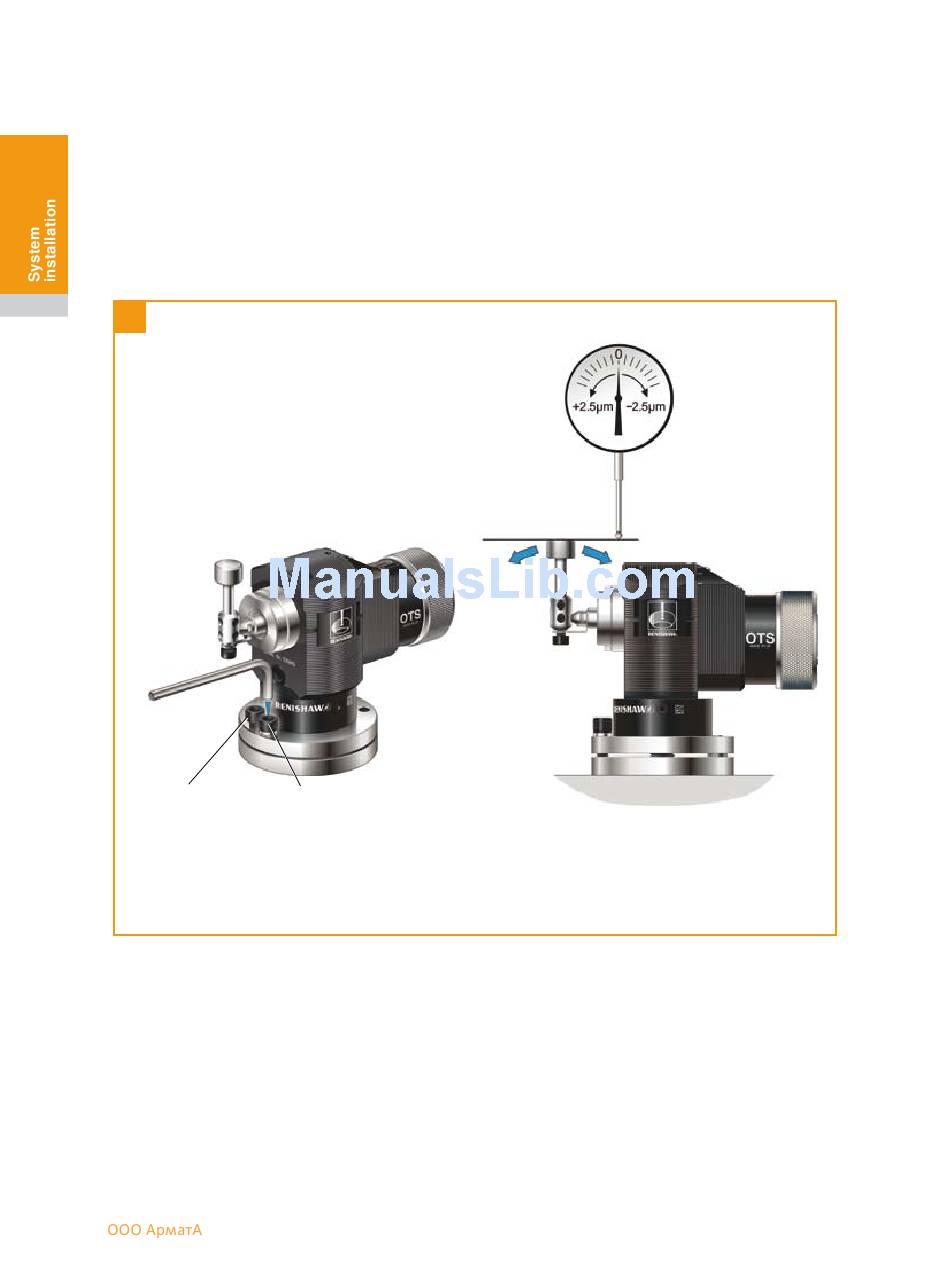

Stylus level setting
Front to back level adjustment
3.8
2
1
Height adjusting screw
4 mm AF
To raise front
Slacken adjusting/locking screw 2 and adjust
height adjusting screw 1 until the stylus is level.
Then fully tighten screw 2.
2
Adjusting/locking screw
4 mm AF
5.1 Nm
(3.76 lbf.ft)
www.armata-cnc.ru info@armata-cnc.ru
To lower front
Keep slackening height adjusting screw 1 and
adjusting/locking screw 2 until the stylus is level.
Then fully tighten screw 2.
