Renishaw OLP40 Installation Manual

Optical lathe probe
Hide thumbs Also See for OLP40:
Table of Contents

Advertisement

Quick Links

Download this manual
Installation guide
H-5625-8504-01-A
OLP40 optical lathe probe

Advertisement

Table of Contents
loading

Related Manuals for Renishaw OLP40

Summary of Contents for Renishaw OLP40

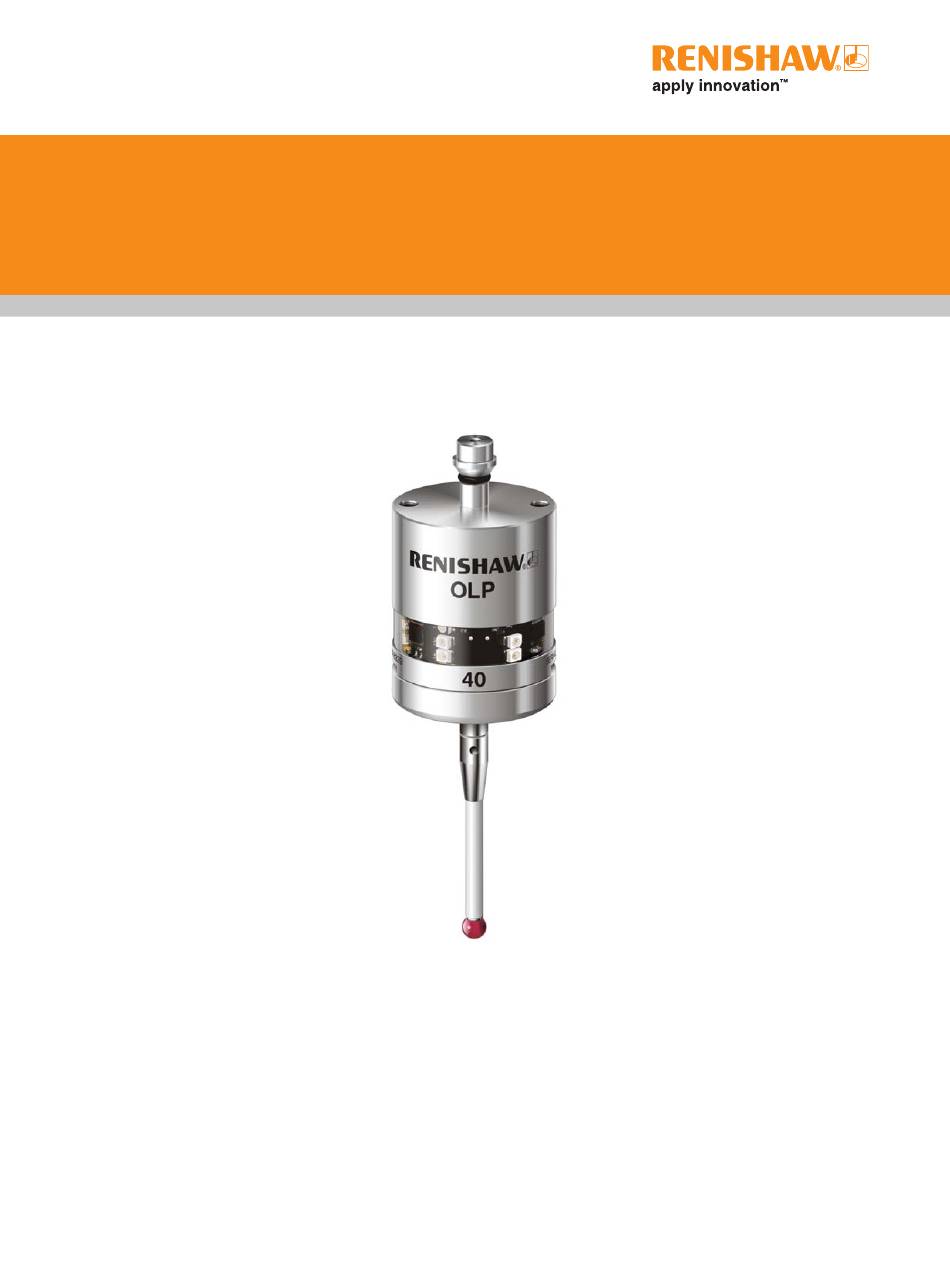

  • Page 1 Installation guide H-5625-8504-01-A OLP40 optical lathe probe...
  • Page 2 © 2010 Renishaw plc. All rights reserved. This document may not be copied or reproduced in whole or in part, or transferred to any other media or language, by any means, without the prior written permission of Renishaw plc. The publication of material within this document does not imply freedom from the patent rights of Renishaw plc.

  • Page 3: Table Of Contents

    Introduction ........................2.1 Optical transmission method ................... 2.1 Trigger Logic™ ........................ 2.2 Modes of operation ......................2.3 Configurable settings ....................... 2.4 OLP40 dimensions ......................2.5 OLP40 specification ......................2.6 Principal application ....................2.6 Overall dimensions ..................... 2.6 Weight ........................2.6 Operating ........................
  • Page 4 Installing the OLP40 with an OMI-2/OMI-2T/OMI-2H/OMI/OSI with OMM-2 ..... 3.1 Performance envelope with an OMI-2/OMI-2T/OMI-2H/OMM-2 ........ 3.2 Performance envelope with an OMI ................3.3 Installing the OLP40 with an OMM and an MI 12 ............3.4 Performance envelope with an OMM ................. 3.5 Preparing the OLP40 for use..................3.6 Fitting the stylus ....................

  • Page 5: Before You Begin

    Trademarks Care of the probe RENISHAW® and the probe emblem used in the RENISHAW logo are registered trademarks of Keep system components clean and treat the Renishaw plc in the UK and other countries.

  • Page 6: Patents

    OLP40 installation guide Patents Features of the OLP40 probe, and other similar Renishaw probes, are the subject of one or more of the following patents and/or patent applications: 0390342 2945709 2994401 0695926 0974208 3967592 1130557 2003-526170 2004-522961 1185838 1373995 2004-530234...

  • Page 7: Weee Directive

    Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment The use of this symbol on Renishaw products is operated in a commercial environment. and/or accompanying documentation indicates...

  • Page 8: Safety

    Renishaw for any reason, do not return any batteries. If this equipment is used in a manner not specified by the manufacturer, the protection provided by The OLP40 has a glass window, handle with care the equipment may be impaired if broken, to avoid injury.

  • Page 9: Olp40 Basics

    Modulated mode machine tool environments. Certain forms of light interference can cause The OLP40 is ideal for small to medium lathe and false triggers or mimic a start signal and falsely turning centres including the growing range of activate the probe. These effects are much HSK machines.

  • Page 10: Trigger Logic

    OLP40 installation guide Trigger Logic™ All OLP40 settings are configured using the Trigger Logic™ technique. Trigger Logic™ (see Section 4 - Trigger Logic™) is a method that allows the user to view and select all available mode settings in order to customise a probe to suit a specific application.

  • Page 11: Modes Of Operation

    This method is required when operating a twin probe system with an OMI-2T or when operating multiple probes with the OSI with OMM-2 in multiple probe mode. After being switched on, the OLP40 must be on for 1 second minimum before being switched off. Timer off (time out) Time out will occur (12, 33 or 134 seconds) after the last probe trigger or reseat.

  • Page 12: Configurable Settings

    When the filter is enabled, a constant 10 ms delay is introduced to the probe output. The OLP40 is factory set to trigger filter off. NOTE: It may be necessary to reduce the probe approach speed to allow for the increased stylus overtravel during the extended time delay.

  • Page 13: Olp40 Dimensions

    OLP40 dimensions 50 (1.97) 19 (0.75) Ø40 (Ø1.57) Battery cassette M4 stylus 12.5° 12.5 ° Probe status LEDs 58.3 (2.30) dimension given in mm (in) ±X ±Y Stylus overtravel limits Stylus length ±X/±Y 50 (1.97) 12 (0.47) 6 (0.24) 100 (3.94) 22 (0.87)

  • Page 14: Olp40 Specification

    OLP40 installation guide OLP40 specification Principal application Workpiece inspection and job setup on turning centres. Dimensions Length 58.3 mm (2.30 in) Diameter 40 mm (1.57 in) Weight (without shank) With batteries 260 g (9.17 oz) Without batteries 240 g (8.47 oz) Transmission type 360°...

  • Page 15: Environment

    OLP40 specification (continued) Environment IP rating IPX8 (BS 5490, IEC 60529) 1 atmosphere (As defined in BS Storage temperature -10 °C to 70 °C (14 °F to 158 °F) EN 61010-1: 2001) Operating temperature 5 °C to 50 °C (41 °F to 122 °F)
  • Page 16 OLP40 installation guide This page left intentionally blank...

  • Page 17: System Installation

    PSU3 user's guide H-2000-5057 OSI with OMM-2 installation guide H-5492-8504 Probe and optical receiver Coolant residue accumulating on the OLP40 or OMI-2T/OMI-2/OMI-2H/OMI/OMM-2 windows The probe and receiver must be in the other's may reduce the signal transmission range. field of view, and within the performance envelope Wipe clean as often as is necessary to maintain shown (pages 3.2/3.3).

  • Page 18: Performance Envelope With An Omi-2/Omi-2T/Omi-2H/Omm-2

    OLP40 installation guide Performance envelope with an OMI-2/OMI-2T/OMI-2H/OMM-2 (modulated transmission) OMI-2/OMI-2T/OMI-2H/OMM-2 1 (3.3) 2 (6.5) 3 (9.8) 4 (13.1) 5 (16.4) 75° 75° 60° 60° 45° 45° 30° 30° Range m (ft) 15° 15° Typical plot at 20 °C (68 °F)

  • Page 19: Performance Envelope With An Omi

    5 (16.4) 4 (13.1) 3 (9.8) 2 (6.5) 1 (3.3) OLP40 Optical power setting Receiver position If two machines are operating in close proximity To assist finding the optimum position for the to each other, take care to ensure that signals...

  • Page 20: Installing The Olp40 With An Omm And An Mi

    50 °C to 60 °C (32 °F to 41 °F or 122 °F to shown (page 3.5). The OLP40 performance 140 °F) will result in some reduction in range. envelope is based on the receiver being at 0°, On large machine tools, it is possible to provide and vice-versa.

  • Page 21: Performance Envelope With An Omm

    5 (16.4) 4 (13.1) 3 (9.8) 2 (6.5) 1 (3.3) OLP40 Optical power setting Receiver position If two machines are operating in close proximity To assist finding the optimum position for the to each other, take care to ensure that signals...

  • Page 22: Preparing The Olp40 For Use

    OLP40 installation guide Preparing the OLP40 for use Fitting the stylus M-5000-3707...

  • Page 23: Installing The Batteries

    Installing the batteries NOTES: See Section 5 - Maintenance for list of suitable battery types. When inserting batteries, check that the battery polarity is correct. If dead batteries are inadvertently inserted into the probe then the LEDs will remain a constant red, see page 4.4.

  • Page 24: Mounting The Probe On A Shank

    OLP40 installation guide Mounting the probe on a shank 2 mm AF 0.5 Nm - 1.5 Nm (0.37 lbf.ft - 1.1 lbf.ft) (x 2)

  • Page 25: Stylus On-Centre Adjustment

    Stylus on-centre adjustment Adjust in X axis NOTES: If a probe and shank assembly is dropped, it must be rechecked for correct on-centre < ± 20 µm adjustment. Do not hit or tap the probe to achieve on-centre adjustment. 2 mm AF 0.5 Nm - 1.5 Nm (0.37 lbf.ft - 1.1 lbf.ft) (x 2)

  • Page 26: Stylus Trigger Force And Adjustment

    2 mm AF Reduce following each stylus deflection. force Stylus trigger force is set by Renishaw. The 3.10 Increase user should only adjust trigger force in special force circumstances e.g. where there is excessive machine vibration or insufficient force to support the stylus weight.

  • Page 27: Calibrating The Olp40

    Calibrating the OLP40 Three different operations are to be used when calibrating a probe. They are: Why calibrate a probe? • calibrating in either a bored hole or on a An inspection probe is just one component of turned diameter of known size;...
  • Page 28 OLP40 installation guide 3.12 This page left intentionally blank...

  • Page 29: Trigger Logic

    Trigger Logic™ Reviewing the current probe settings Key to the symbols > 5 s LED short flash LED check LED long flash Switch off method Optical off Short timeout Medium timeout Long timeout 12 s 33 s 134 s Enhanced trigger filter setting Trigger filter Trigger filter Optical transmission method/Probe identification...

  • Page 30: Probe Settings Record Table

    Enhanced trigger filter Trigger filter off setting Trigger filter on Optical transmission Legacy start filter off method Legacy start filter on Modulated probe 1 Modulated probe 2 Optical power setting Low optical power Standard optical power OLP40 serial no ..........

  • Page 31: Changing The Probe Settings

    Changing the probe settings Insert batteries or, if already installed, remove for flashes will be followed by a blue flash). Keep 5 seconds and replace. Following the LED check, the stylus deflected until the 'switch on method' immediately deflect the stylus and hold deflected setting is displayed, then release the stylus.

  • Page 32: Operating Mode

    OLP40 installation guide Operating mode LEDs LEDs flashing LEDs flashing flashing green Probe status LEDs LED colour Probe status Graphic hint Flashing green Probe seated in operating mode Flashing red Probe triggered in operating mode Flashing green and blue Probe seated in operating mode...

  • Page 33: Maintenance

    Wipe the window of the probe with a clean cloth described in these instructions. to remove machining residue. This should be done on a regular basis to maintain optimum Further dismantling and repair of Renishaw transmission. equipment is a highly specialised operation, which must be carried out at authorised Renishaw Service Centres.

  • Page 34: Changing The Batteries

    OLP40 installation guide Changing the batteries CAUTIONS: Do not leave exhausted batteries in probe. When changing batteries, do not allow coolant or debris to enter the battery compartment. When changing batteries, check that the battery polarity is correct. Take care to avoid damaging the battery cassette gasket.

  • Page 35: Battery Types

    Battery type ½ AA Lithium Thionyl Chloride (3.6 V) x 2 Ecocel: EB1426 Dubilier: SB-AA02 Saft: LS 14250C, Maxell: ER3S LS 14250 Sanyo: CR 14250SE Tadiran: SL-750 Tadiran: SL-350, SL-550 Xeno: XL-050F TL-4902 TL-5902, TL-2150, TL-5101 Varta: CR 1/2 AA...

  • Page 36: Olp40 Eyelid

    OLP40 eyelid The cleaning interval may be extended or reduced, depending on the rate dirt accumulates. The OLP40 is fitted with a metal eyelid that If the inner diaphragm is damaged, return the protects the internal components of the probe probe to your supplier for repair.

  • Page 37: Fault Finding

    Optical/magnetic interference Check for interfering lights or motors Consider removing interfering source Transmission beam obstructed Check that OLP40 and receiver windows are clean, and remove any obstruction Probe out of range/not aligned Check alignment and if receiver with receiver fixing is secure...
  • Page 38 OLP40 installation guide Symptom Cause Action Machine stops Optical communication Check interface/receiver and unexpectedly during a obstructed remove obstruction probing cycle Interface/receiver/machine fault Refer to interface/receiver/ machine user’s guide Dead batteries Change batteries False probe trigger Enable enhanced trigger filter...
  • Page 39 Symptom Cause Action Poor probe Debris on part or stylus Clean part and stylus repeatability and/or accuracy Poor tool change repeatability Re-datum probe after each tool change Loose probe mounting on shank Check and tighten as appropriate or loose stylus Excessive machine vibration Enable enhanced trigger filter Eliminate vibrations...
  • Page 40 OLP40 installation guide Symptom Cause Action Probe fails to switch off Wrong switch off mode selected Reconfigure to optical off mode (where optical off is required) Optical/magnetic interference Check for interfering lights or motors Consider removing the interfering source Probe is inadvertently switched...

  • Page 41: Parts List

    Parts list Type Part number Descripion OLP40 A-5625-0001 OLP40 probe with batteries, tool kit and Quick-start guide. Optical on, set to: optical off/trigger filter off/legacy transmission, start filter off/standard power. OLP40 A-5625-0002 OLP40 probe with batteries, tool kit and Quick-start guide.
  • Page 42 OLP40 installation guide Type Part number Descripion OMI-2 A-5191-0049 OMI-2 complete with cable 8 m (26.25 ft) long. OMI-2 A-5191-0050 OMI-2 complete with cable 15 m (49 ft) long. OMI-2T A-5439-0049 OMI-2T complete with cable 8 m (26.25 ft) long.
  • Page 43 Type Part number Descripion Publications. These can be downloaded from our web site at www.renishaw.com OLP40 A-5625-8500 Quick-start guide for rapid set-up of the OLP40 probe, includes CD with OLP40 publications. Styli H-1000-3200 Catalogue Styli and accessories. OMI-2 H-2000-5233 Installation and user's guide Optical machine interface.
  • Page 44 Renishaw plc +44 (0)1453 524524 +44 (0)1453 524901 New Mills, Wotton-under-Edge, uk@renishaw.com Gloucestershire, GL12 8JR United Kingdom www.renishaw.com For worldwide contact details, please visit our main website at www.renishaw.com/contact *H-5625-8504-01* © 2010 Renishaw plc Issued 02.2010 Part no. H-5625-8504-01-A...
