3. DISASSEMBLY AND REASSEMBLY

3.1 Notes on Disassembly and Reassembly

• During disassembly, disconnect the cables from the specified connectors as necessary.
• During reassembly, double-check to ensure that the proper cables have been correctly re-connected to
the pertinent connectors.
• Some areas of the control panel unit possess a high electrical potential, so exercise caution to avoid an
electrical shock.
• When handling the LCD shield and LCD protective plate, be careful not to leave fingerprints or other
marks on them.

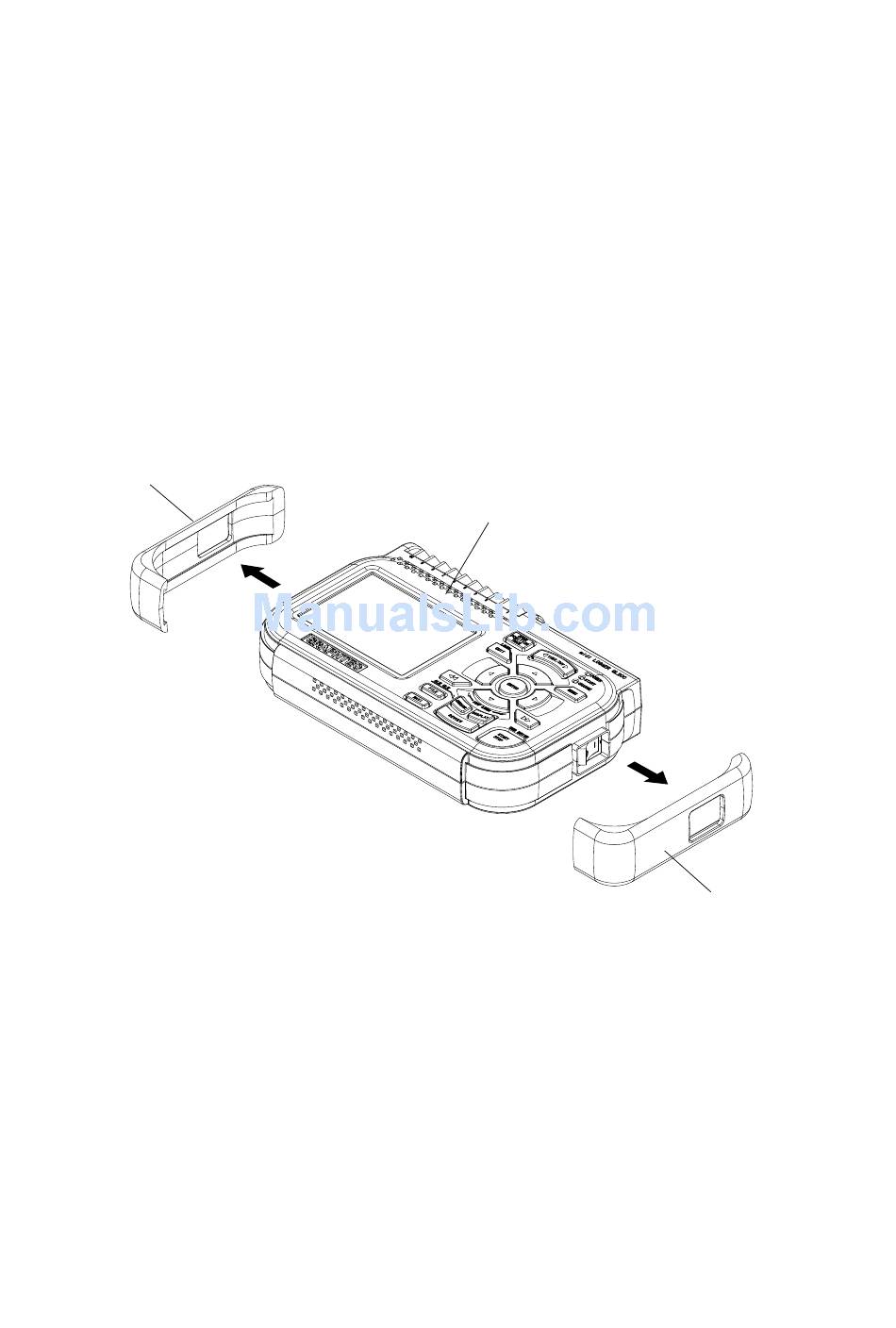

3.2 Removing the Side Pads

Disassembly
(1) Peel off the left and right side pads from the main unit.
Side Pad
Re-assembly
(1) Push the left and right side pads against the main unit and then install them on the main unit.
GL200-UM-251-9370
3. DISASSEMBLY AND REASSEMBLY
Main Unit
3-1
Side Pad
