GRAPHTEC gl200 Service Manual page 26

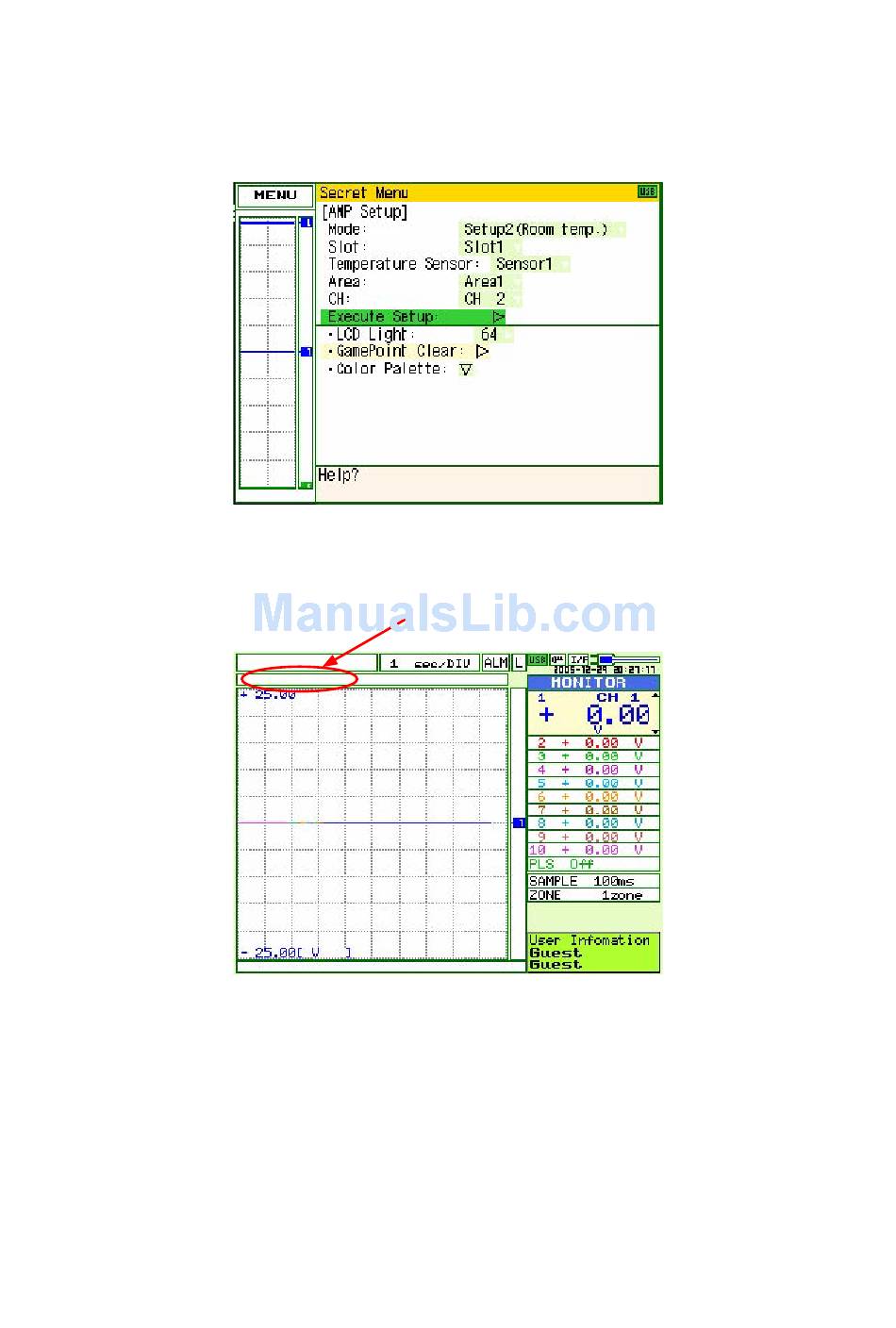

(3) After entering the System Setup mode, open the Setup menu as shown below.
Specify the AMP Setup conditions as shown below.
Mode
Area
CH
(4) Move the cursor to the "Execute Setup" position as shown above.
(5) Press the [ENTER] key to start the Setup2 (Room temp.) operation.
(6) The "rTemp : [START]" message is displayed at the location shown above.
(7) Press the [START] key and then wait until the
(8) Press the [ENTER] key to begin writing the new Setup data to the EEPROM.
(9) After the setup parameters have been registered to the EEPROM, the display closes and returns to
normal mode.
GL200-UM-251-9370
:Setup2 (Room temp.)
:Area1
:CH 2
Message
"EEPROM : [ENTER]" message appears.
4-9
4. SETUP PROCEDURES
