3. DISASSEMBLY AND REASSEMBLY

3.7 Replacing the AMP Board

Disassembly
(1) Remove the side pads from the main unit (See Section 3.2).
(2) Disassemble the top cover assembly and the bottom case assembly (See Section 3.3).

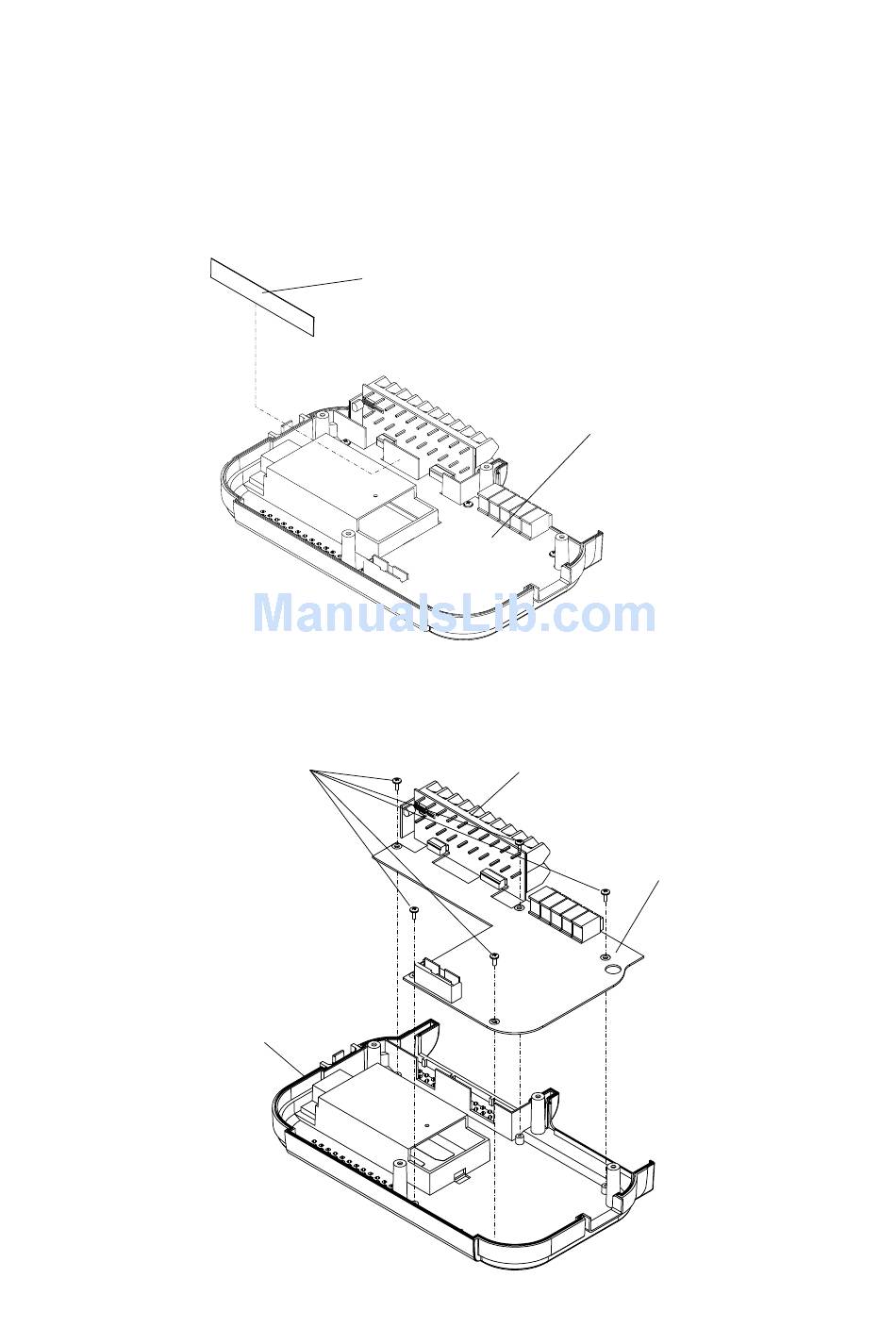

(3) Remove the covering seal from the bottom case assembly.
Covering seal
Bottom case assembly
(4) Remove the five M2L5 self-tapping screws holding the AMP board from the bottom case assembly.
(5) Remove the AMP board and the input terminal board from the bottom case assembly.
M2L5 self-tapping screw
Input terminal board
AMP board
Bottom case assembly
GL200-UM-251-9370 3-6
