3. DISASSEMBLY AND REASSEMBLY

3.5 Replacing the Control Panel Board

Disassembly
(1) Remove the side pads from the main unit (See Section 3.2).
(2) Disassemble the top cover assembly and the bottom case assembly (See Section 3.3).
(3) Remove the main control board (See Section 3.4).
(4) Remove the four M2L5 self-tapping screws holding the control panel board from the top cover assembly.
(5) Remove the control panel board from the top cover assembly.

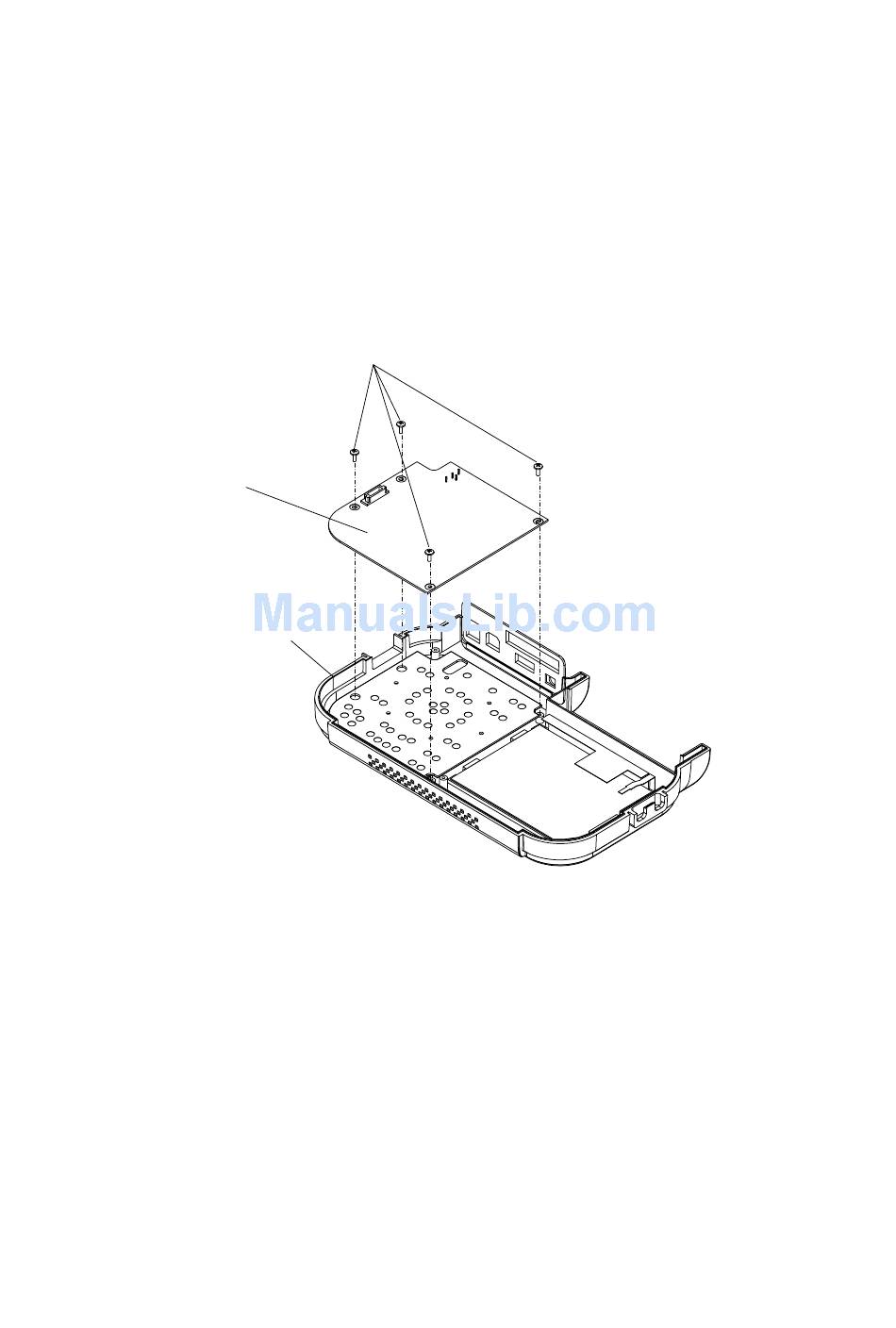

M2L5 self-tapping screw
Control panel board
Top cover assembly
Re-assembly
(1) Re-assemble the control panel board in the reverse order in which it was disassembled.
GL200-UM-251-9370 3-4
