3. DISASSEMBLY AND REASSEMBLY

3.6 Replacing the LCD

Disassembly
(1) Remove the side pads from the main unit (See Section 3.2).
(2) Disassemble the top cover assembly and the bottom case assembly (See Section 3.3).
(3) Remove the main control board (See Section 3.4).
(4) Remove the M2L5 self-tapping screw holding the LCD bracket and the LCD from the top cover
assembly.
(5) Remove the LCD from the top cover assembly.

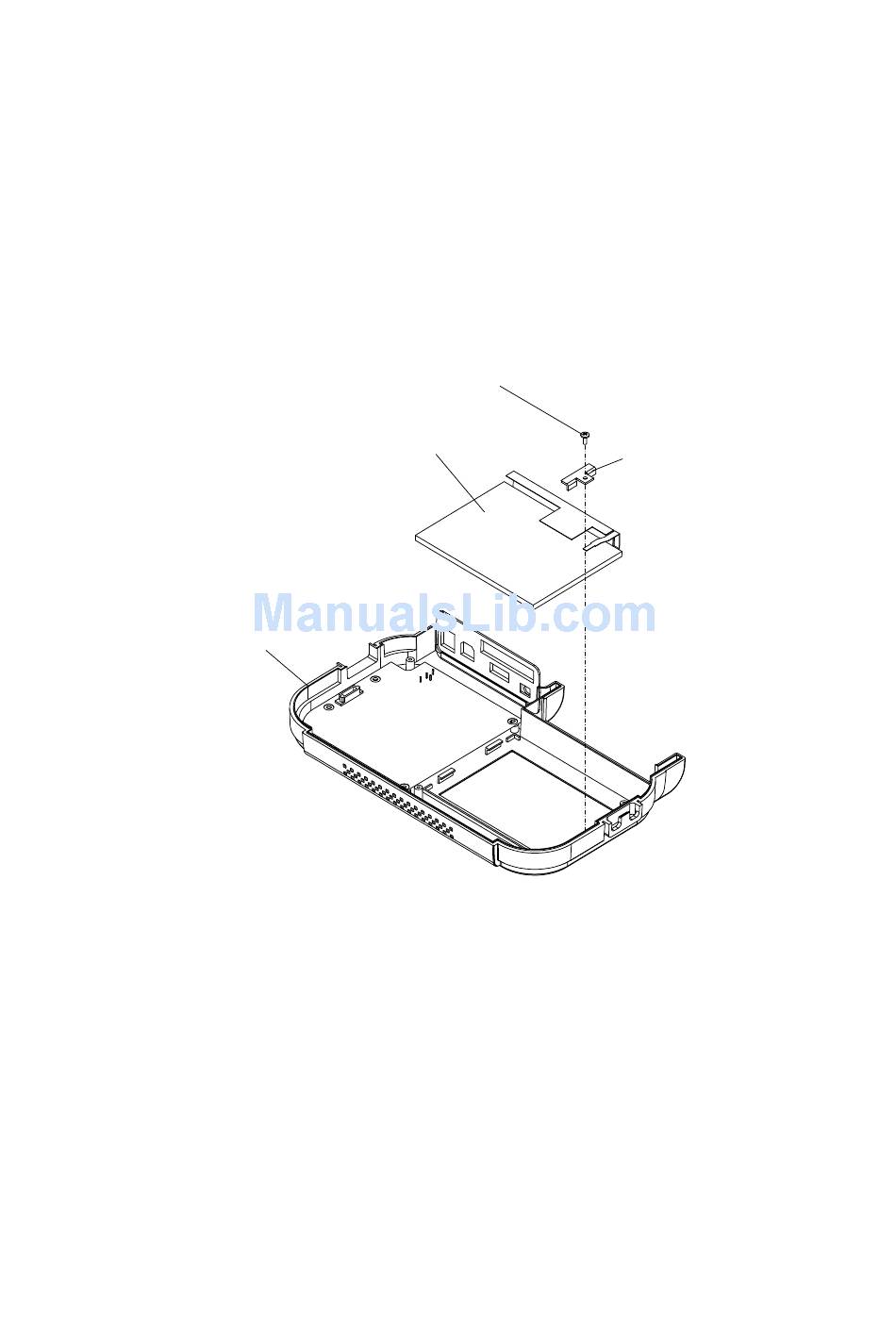

M2L5 self-tapping screw
LCD
LCD Bracket
Top cover assembly
Re-assembly
(1) Re-assemble the LCD in the reverse order in which it was disassembled.
GL200-UM-251-9370 3-5
