2.4
Components
Basic components of the ET 200SP distributed I/O system

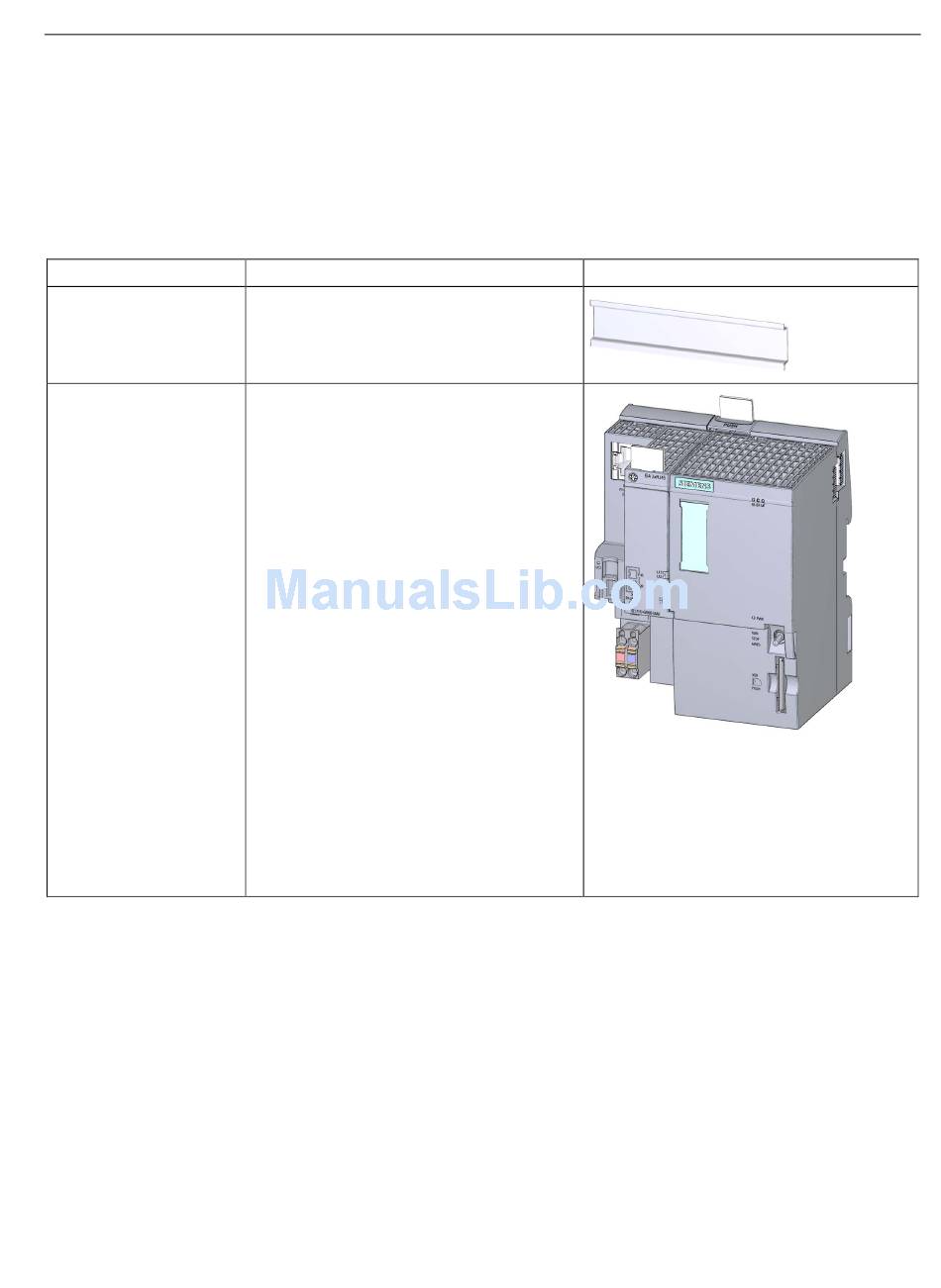

Table 2- 2
Basic components of the ET 200SP
Basic component
Mounting rail in accord-
ance with EN 60715
CPU/Fail-safe CPU
Distributed I/O system
System Manual, 12/2016, A5E03576849-AG
Function
The mounting rail is the rack of the ET 200SP.
The ET 200SP is installed on the mounting
rail. The mounting rail is 35 mm high.
The (F) CPU:
Runs the user program. The F-CPU also
•
runs the safety program.
Can be used as an IO controller or I-
•
Device on PROFINET IO or as a
standalone CPU
Links the ET 200SP to the IO devices or
•
the IO controller
Exchanges data with the I/O modules via
•
the backplane bus.
Additional CPU functions:
Communication via PROFIBUS DP (the
•
CPU can be used as a DP master or DP
slave in combination with the CM DP
communication module)
Integrated Web server
•
Integrated technology
•
Integrated trace functionality
•
Integrated system diagnostics
•
Integrated safety
•
Safety mode (when using fail-safe CPUs)
•
System overview
2.4 Components
Figure
25
