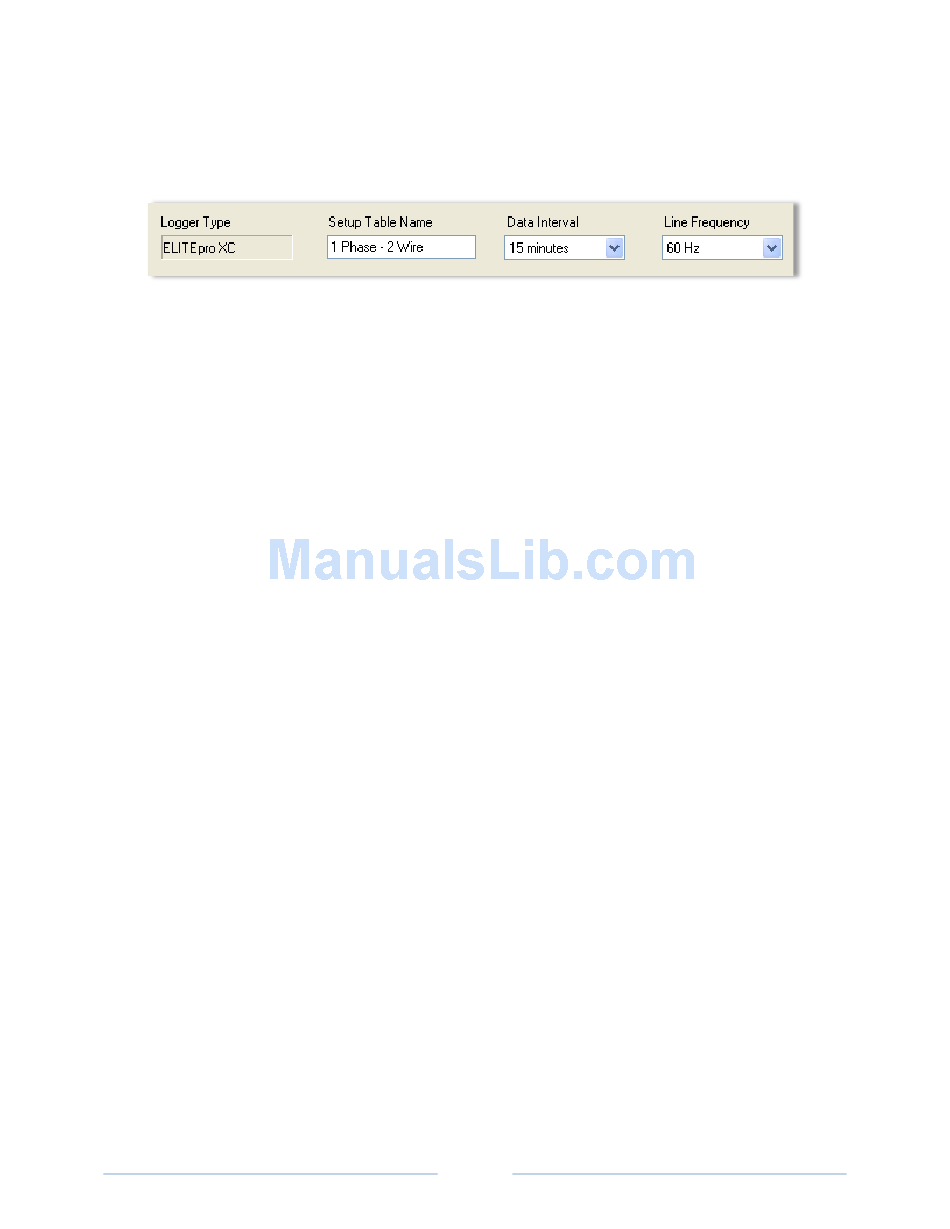

The Setup Table consists of several sections where the attributes of the ELITEpro XC are defined.
Logger Type
Setup Table Name
Data Interval
Line Frequency
Shop for Dent products online at:
S T
ETUP ABLE
ELITEpro XC is the default entry. This field cannot be edited once you are in the Setup
Table window. Logger type must be chosen from the Select A Setup Table Type
window.
Enter a name for the Setup Table. 20 character limit. This is helpful for identifying
different Setup Tables. NOTE: The Setup Table name need not be the same as the .sut
file name.
The default integration period is fifteen minutes. The choices are 1, 3, 15, 30 seconds;
1, 2, 5, 10, 15, 20 and 30 minutes; 1 and 12 hours; 1 day. This tells the logger at what
time intervals data is to be stored in the memory. For example, if the integration
period is set for 30 minutes and average watts is being monitored, then every 30
minutes the logger records the average power use (watts) for that channel over the
preceding 30 minute interval, based on approximately 14,400 measurements of the
monitored power draw. If Maximum (and/or Minimum) values are being recorded
the highest (and/or lowest) of those 14,400 readings are also saved.
Auto, 60 Hz, or 50Hz. Default is 60 Hz.
