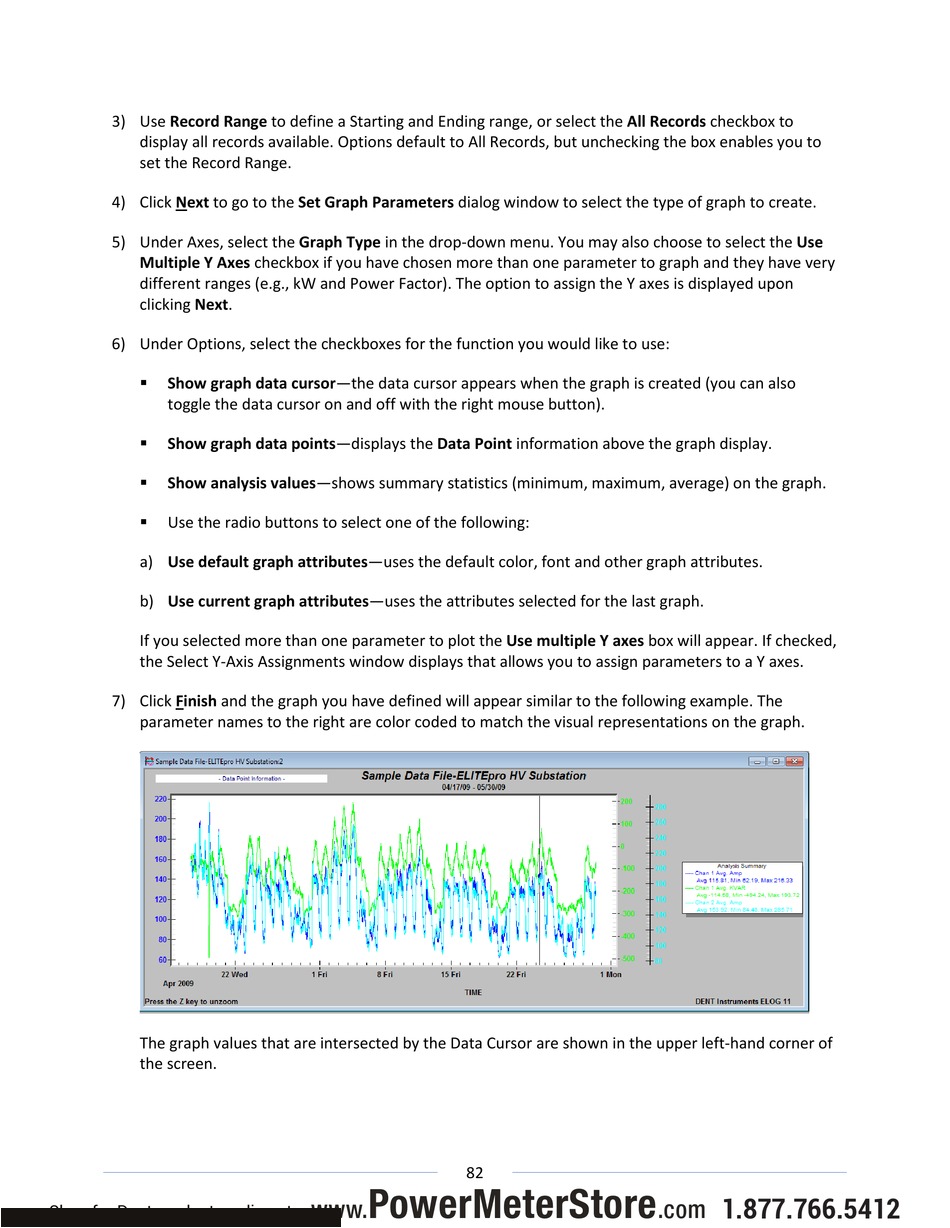

DENT Instruments ELITEpro XC Operator's Manual page 82

3) Use Record Range to define a Starting and Ending range, or select the All Records checkbox to
display all records available. Options default to All Records, but unchecking the box enables you to
set the Record Range.
4) Click Next to go to the Set Graph Parameters dialog window to select the type of graph to create.
5) Under Axes, select the Graph Type in the drop-down menu. You may also choose to select the Use
Multiple Y Axes checkbox if you have chosen more than one parameter to graph and they have very
different ranges (e.g., kW and Power Factor). The option to assign the Y axes is displayed upon
clicking Next.
6) Under Options, select the checkboxes for the function you would like to use:
Show graph data cursor—the data cursor appears when the graph is created (you can also

toggle the data cursor on and off with the right mouse button).
Show graph data points—displays the Data Point information above the graph display.

Show analysis values—shows summary statistics (minimum, maximum, average) on the graph.

Use the radio buttons to select one of the following:

a) Use default graph attributes—uses the default color, font and other graph attributes.
b) Use current graph attributes—uses the attributes selected for the last graph.
If you selected more than one parameter to plot the Use multiple Y axes box will appear. If checked,
the Select Y-Axis Assignments window displays that allows you to assign parameters to a Y axes.
7) Click Finish and the graph you have defined will appear similar to the following example. The
parameter names to the right are color coded to match the visual representations on the graph.
The graph values that are intersected by the Data Cursor are shown in the upper left-hand corner of
the screen.
