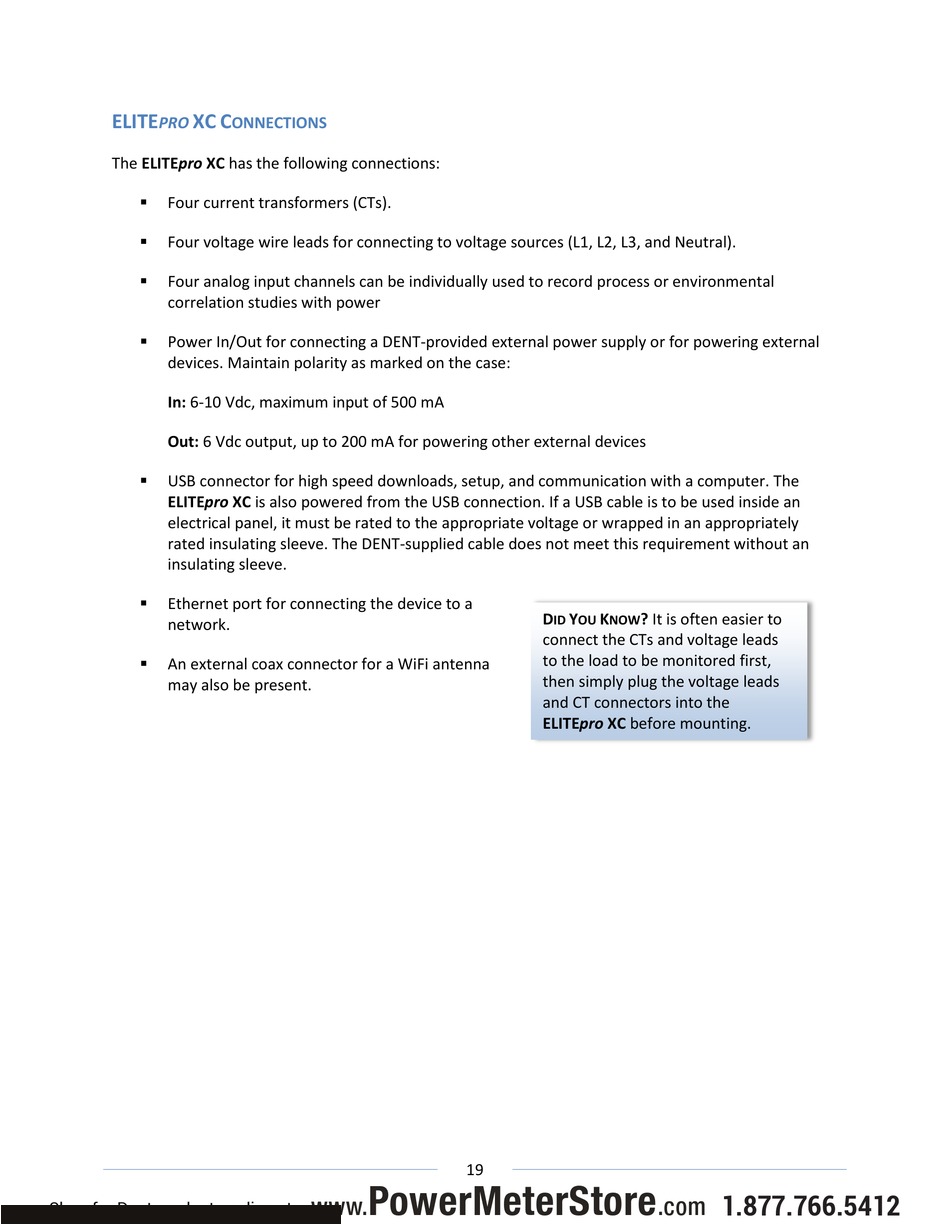

The ELITEpro XC has the following connections:
Four current transformers (CTs).

Four voltage wire leads for connecting to voltage sources (L1, L2, L3, and Neutral).

Four analog input channels can be individually used to record process or environmental

correlation studies with power
Power In/Out for connecting a DENT-provided external power supply or for powering external

devices. Maintain polarity as marked on the case:
In: 6-10 Vdc, maximum input of 500 mA
Out: 6 Vdc output, up to 200 mA for powering other external devices
USB connector for high speed downloads, setup, and communication with a computer. The

ELITEpro XC is also powered from the USB connection. If a USB cable is to be used inside an
electrical panel, it must be rated to the appropriate voltage or wrapped in an appropriately
rated insulating sleeve. The DENT-supplied cable does not meet this requirement without an
insulating sleeve.
Ethernet port for connecting the device to a

network.
An external coax connector for a WiFi antenna

may also be present.
Shop for Dent products online at:
ONNECTIONS
PowerMeterStore
www.
D Y K ? It is often easier to
ID OU NOW
connect the CTs and voltage leads
to the load to be monitored first,
then simply plug the voltage leads
and CT connectors into the
ELITEpro XC before mounting.
