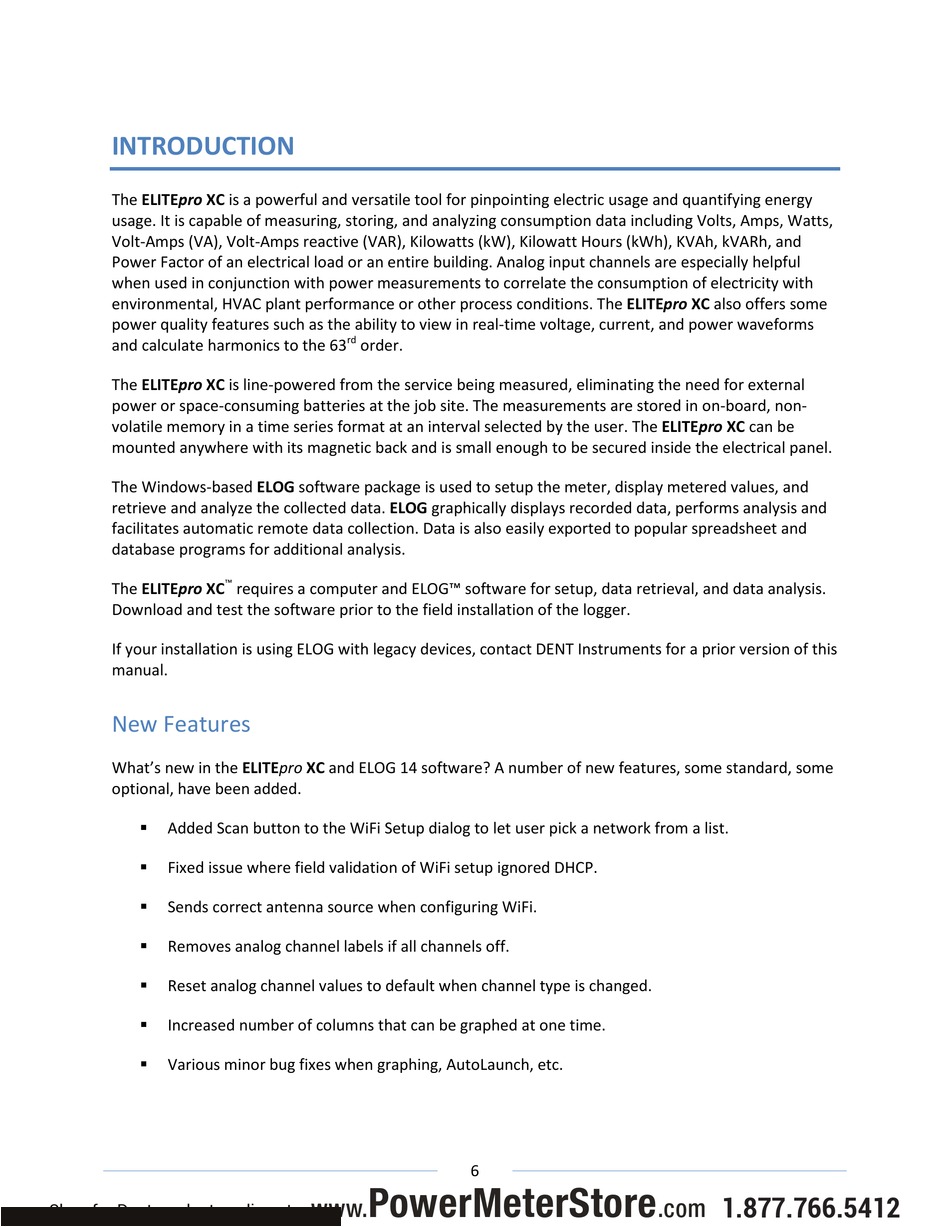

INTRODUCTION

The ELITEpro XC is a powerful and versatile tool for pinpointing electric usage and quantifying energy
usage. It is capable of measuring, storing, and analyzing consumption data including Volts, Amps, Watts,
Volt-Amps (VA), Volt-Amps reactive (VAR), Kilowatts (kW), Kilowatt Hours (kWh), KVAh, kVARh, and
Power Factor of an electrical load or an entire building. Analog input channels are especially helpful
when used in conjunction with power measurements to correlate the consumption of electricity with
environmental, HVAC plant performance or other process conditions. The ELITEpro XC also offers some
power quality features such as the ability to view in real-time voltage, current, and power waveforms
and calculate harmonics to the 63
The ELITEpro XC is line-powered from the service being measured, eliminating the need for external
power or space-consuming batteries at the job site. The measurements are stored in on-board, non-
volatile memory in a time series format at an interval selected by the user. The ELITEpro XC can be
mounted anywhere with its magnetic back and is small enough to be secured inside the electrical panel.
The Windows-based ELOG software package is used to setup the meter, display metered values, and
retrieve and analyze the collected data. ELOG graphically displays recorded data, performs analysis and
facilitates automatic remote data collection. Data is also easily exported to popular spreadsheet and
database programs for additional analysis.
™
The ELITEpro XC
Download and test the software prior to the field installation of the logger.
If your installation is using ELOG with legacy devices, contact DENT Instruments for a prior version of this
manual.

New Features

What's new in the ELITEpro XC and ELOG 14 software? A number of new features, some standard, some
optional, have been added.
Added Scan button to the WiFi Setup dialog to let user pick a network from a list.

Fixed issue where field validation of WiFi setup ignored DHCP.

Sends correct antenna source when configuring WiFi.

Removes analog channel labels if all channels off.

Reset analog channel values to default when channel type is changed.

Increased number of columns that can be graphed at one time.

Various minor bug fixes when graphing, AutoLaunch, etc.

Shop for Dent products online at:
rd
order.
requires a computer and ELOG™ software for setup, data retrieval, and data analysis.
