Other Communication Connections - DENT Instruments ELITEpro XC Operator's Manual

O C
THER OMMUNICATION
The RJ-45 Connector is for Ethernet Network connections.

NOTE: The Ethernet connector accommodates high speed downloads, setup and
communication with a computer. If an Ethernet cable is to be used inside an electrical panel, it
must be rated to the appropriate voltage or wrapped in an appropriately rated insulating sleeve.
The Coax connector, if present, is for an optional external WiFi antenna.

NOTE: If an antenna is used inside an electrical panel, it must be at least 2" away from any live
wiring or bus bars.
An internal Bluetooth antenna is an optional connection.

Shop for Dent products online at:
C
ONNECTIONS

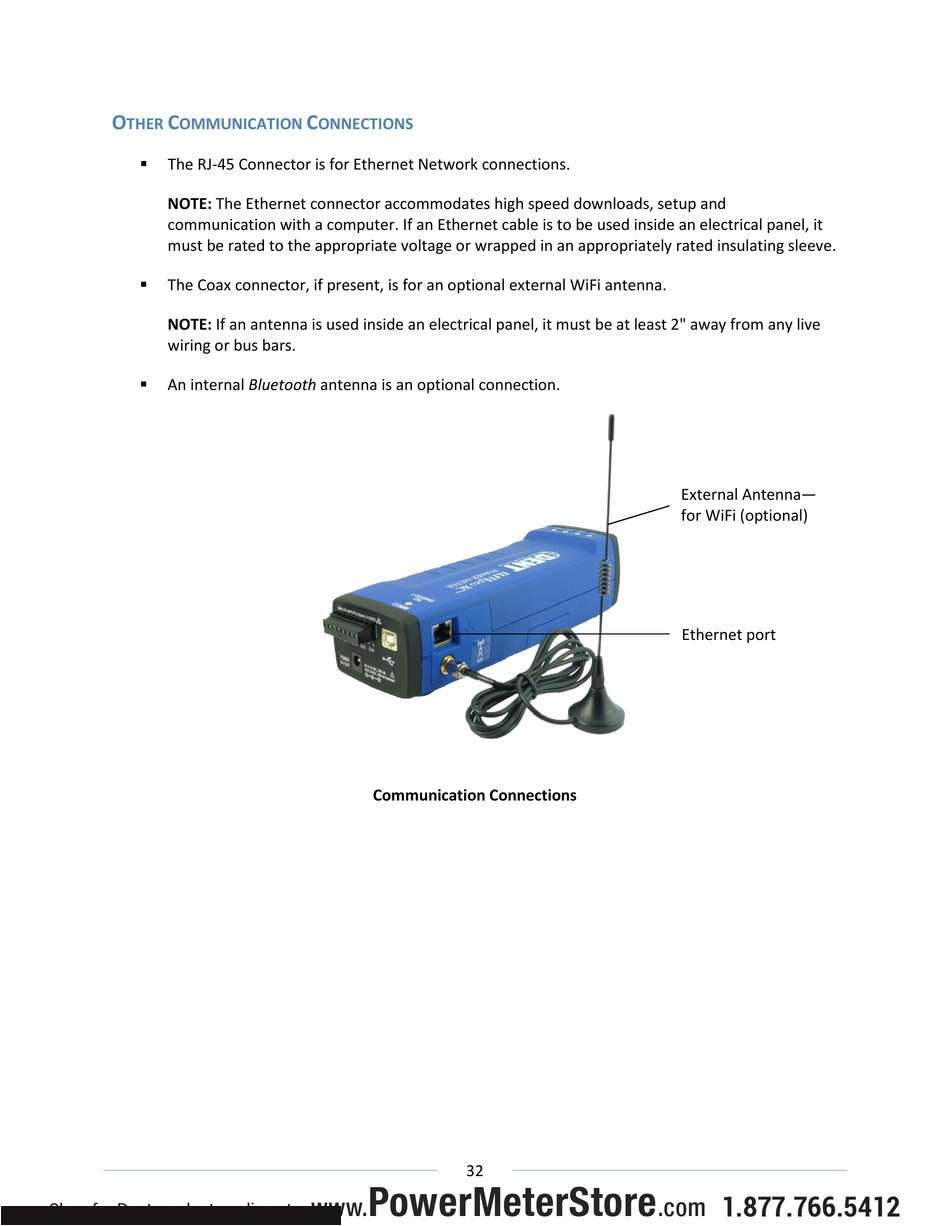

Communication Connections
32
PowerMeterStore
www.
External Antenna—
for WiFi (optional)
Ethernet port
