DENT Instruments ELITEpro XC Operator's Manual page 118

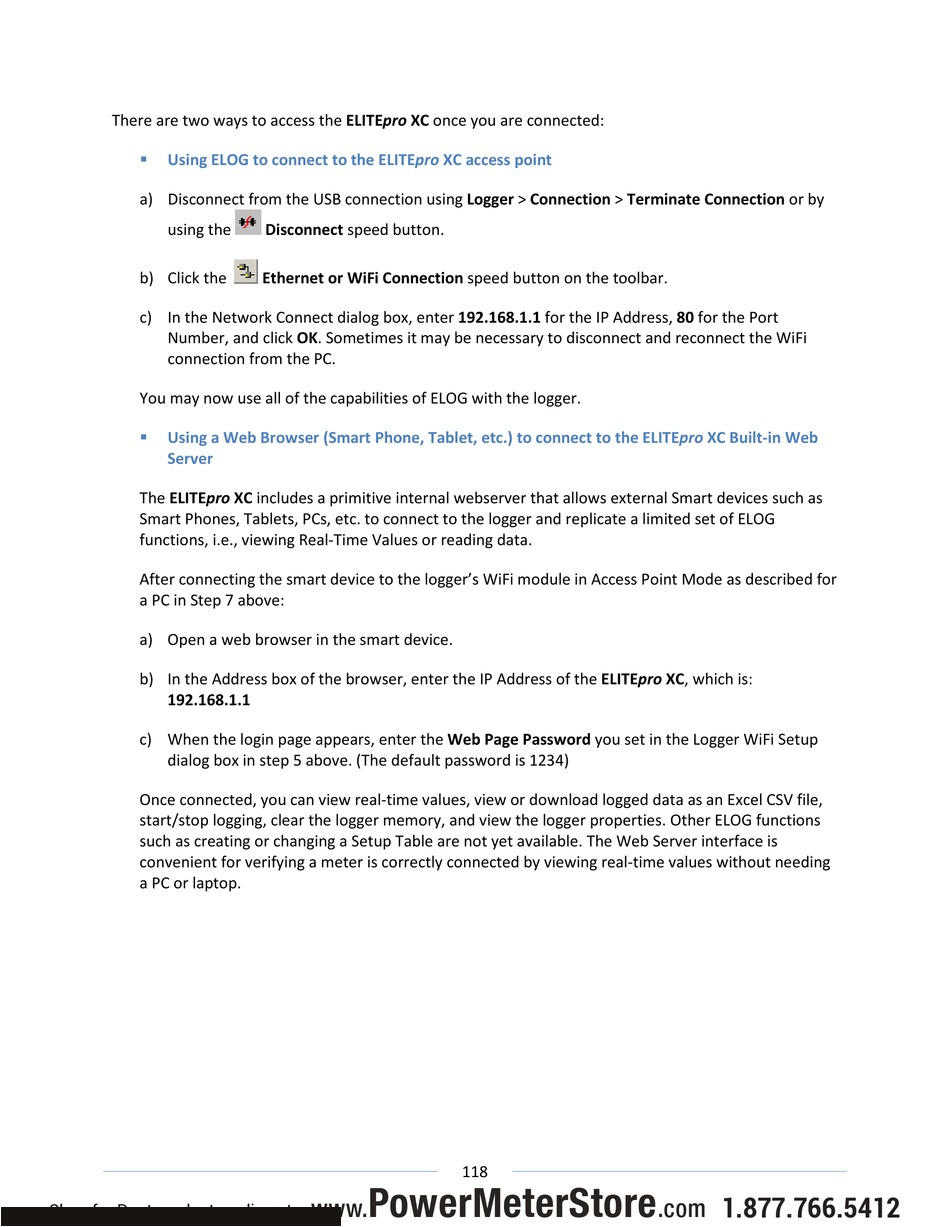

There are two ways to access the ELITEpro XC once you are connected:
Using ELOG to connect to the ELITEpro XC access point

a) Disconnect from the USB connection using Logger > Connection > Terminate Connection or by
using the
b) Click the
c) In the Network Connect dialog box, enter 192.168.1.1 for the IP Address, 80 for the Port
Number, and click OK. Sometimes it may be necessary to disconnect and reconnect the WiFi
connection from the PC.
You may now use all of the capabilities of ELOG with the logger.
Using a Web Browser (Smart Phone, Tablet, etc.) to connect to the ELITEpro XC Built-in Web

Server
The ELITEpro XC includes a primitive internal webserver that allows external Smart devices such as
Smart Phones, Tablets, PCs, etc. to connect to the logger and replicate a limited set of ELOG
functions, i.e., viewing Real-Time Values or reading data.
After connecting the smart device to the logger's WiFi module in Access Point Mode as described for
a PC in Step 7 above:
a) Open a web browser in the smart device.
b) In the Address box of the browser, enter the IP Address of the ELITEpro XC, which is:
192.168.1.1
c) When the login page appears, enter the Web Page Password you set in the Logger WiFi Setup
dialog box in step 5 above. (The default password is 1234)
Once connected, you can view real-time values, view or download logged data as an Excel CSV file,
start/stop logging, clear the logger memory, and view the logger properties. Other ELOG functions
such as creating or changing a Setup Table are not yet available. The Web Server interface is
convenient for verifying a meter is correctly connected by viewing real-time values without needing
a PC or laptop.
Shop for Dent products online at:
Disconnect speed button.
Ethernet or WiFi Connection speed button on the toolbar.
