Quick Setups - DENT Instruments ELITEpro XC Operator's Manual

Q S
UICK ETUPS

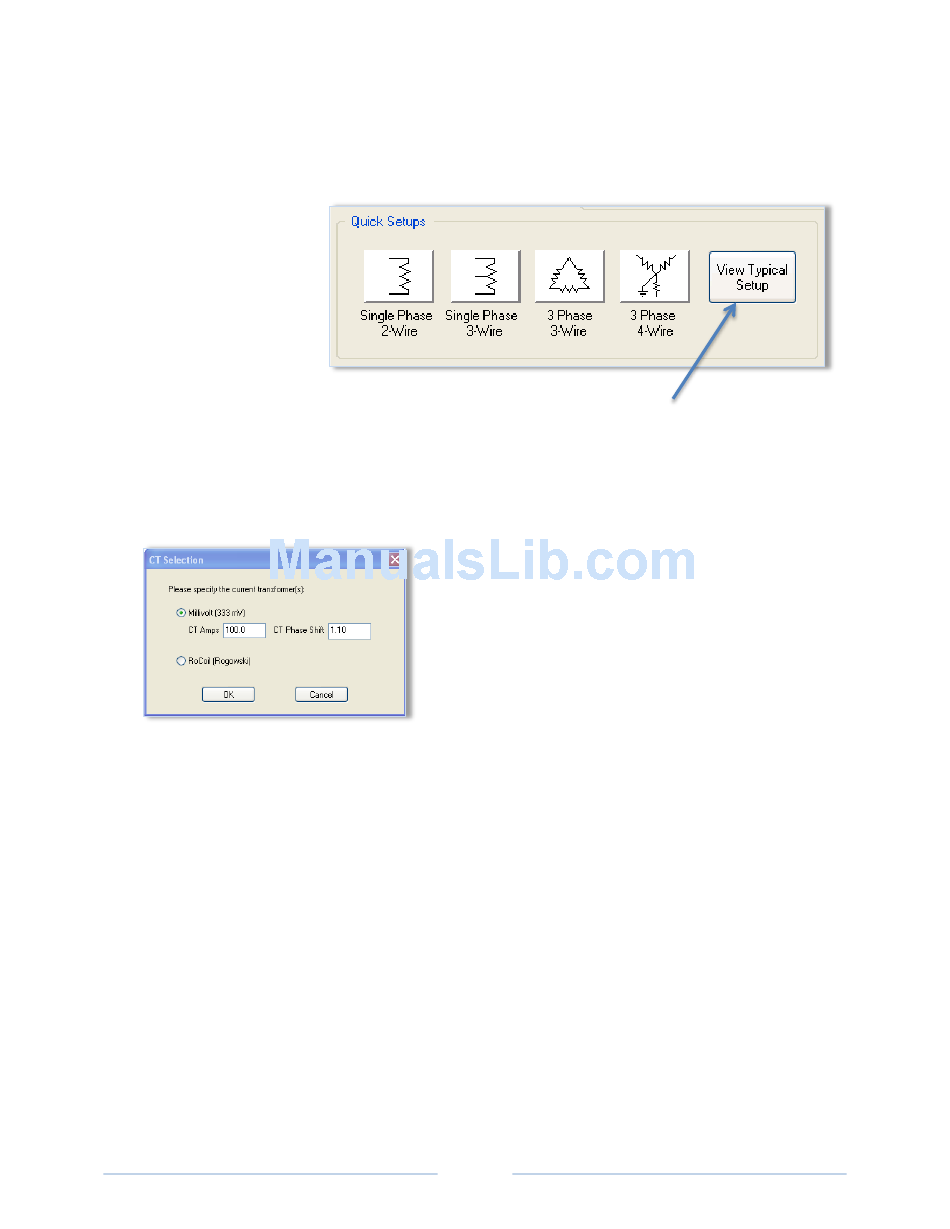

The Quick Setups section of the window provides four buttons to quickly configure the ELITEpro XC.
1) Click the Quick Setup
button that represents
your monitoring
scenario.
Each button opens the CT
Selection dialog window.
See ELOG Quick Setup
Wiring Diagrams at the end of this section for more detail.
2) Enter the CT Amps, the primary current rating of the
current transformer.
The default is 100 amps. The value to be used is printed on
the CTs. Enter the value if it is not 100.
NOTE: If RōCoil (Rogowski) is selected, the CT Amps are set to 5,000 and the CT Phase Shift is set to
0.0 and may not be changed. All DENT RōCoils, regardless of size, use the same settings.
Shop for Dent products online at:
41
PowerMeterStore
www.
The View Typical Setup button
is only visible after a Quick
Setup selection is made.
