Data Menu - DENT Instruments ELITEpro XC Operator's Manual

D M
ATA ENU
Data retrieved from an ELITEpro XC can be opened, graphed, exported, or analyzed.
Create New Graph

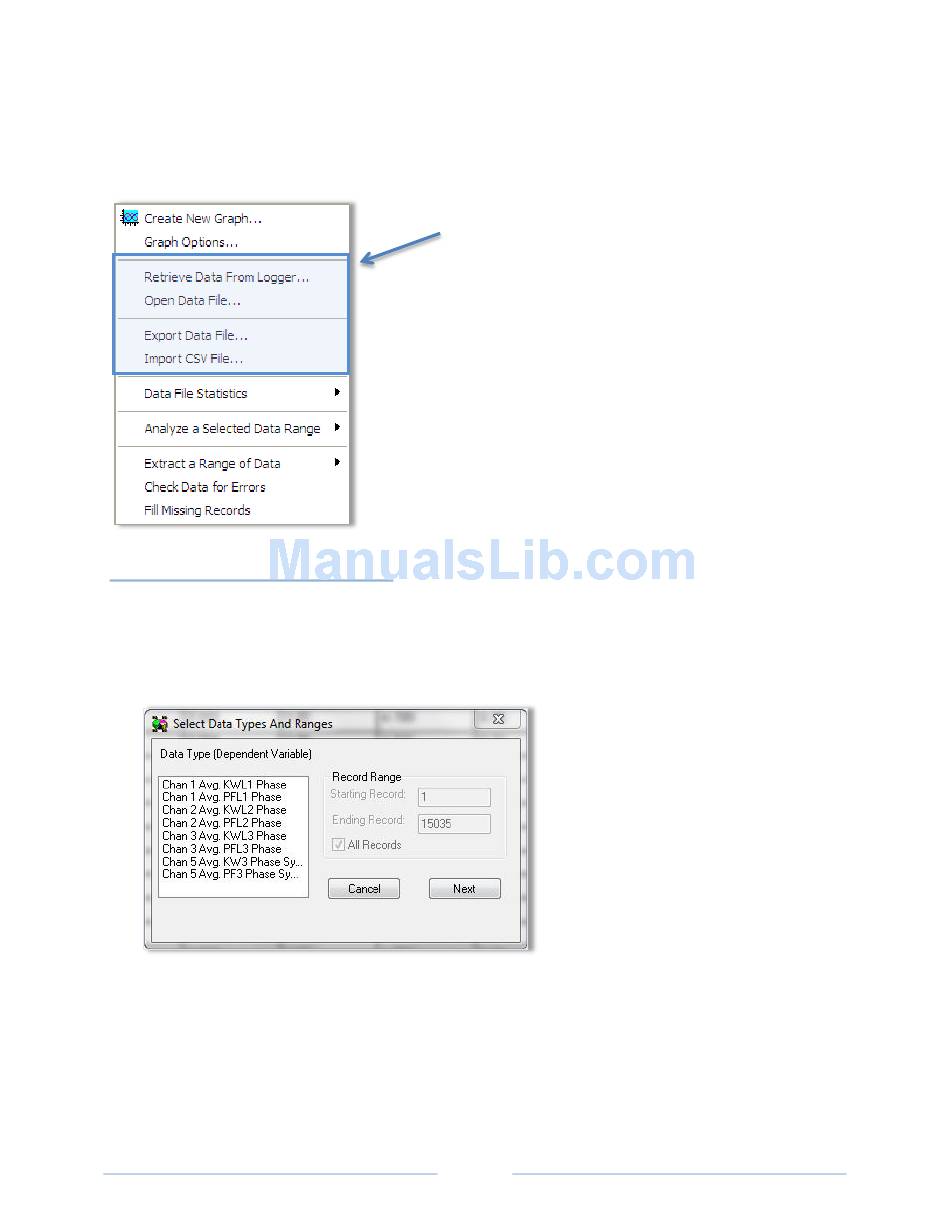

1) When a data file is open, Data > Create New Graph displays the Select Data Types and Ranges dialog
box.
NOTE: Use Data > Open Data File to create a graph from an existing file.
2) Select the parameters contained in the data file you want to graph by putting the mouse over the
desired parameter and left-clicking. Hold down the Control (Ctrl) key to select multiple parameters,
or the Shift key to select a continuous group of parameters.
Shop for Dent products online at:
NOTE: These are the only options
available on the Data menu when first
accessed. The other options appear
after a data file is open.
81
