DENT Instruments ELITEpro XC Operator's Manual page 73

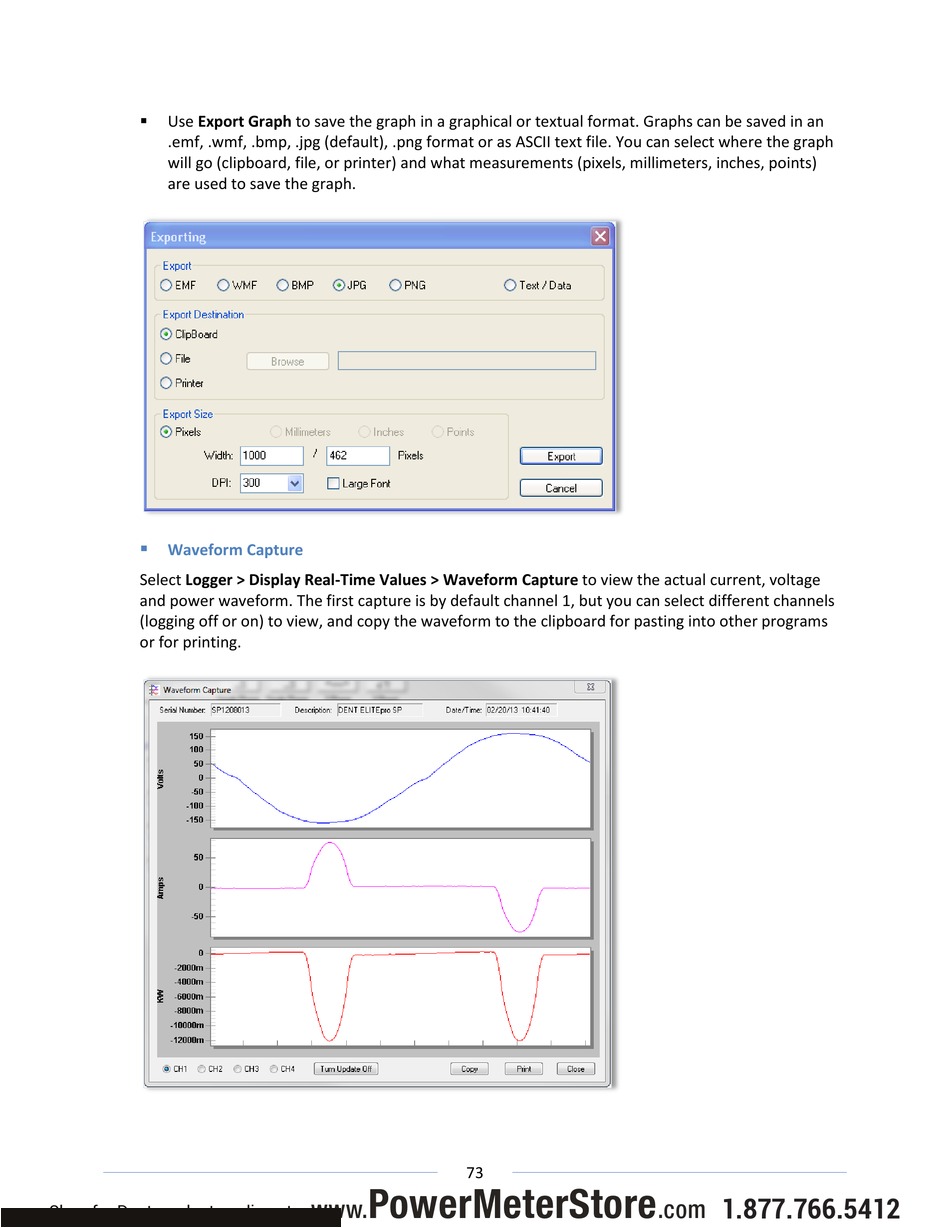

Use Export Graph to save the graph in a graphical or textual format. Graphs can be saved in an

.emf, .wmf, .bmp, .jpg (default), .png format or as ASCII text file. You can select where the graph
will go (clipboard, file, or printer) and what measurements (pixels, millimeters, inches, points)
are used to save the graph.
 Waveform Capture
Select Logger > Display Real-Time Values > Waveform Capture to view the actual current, voltage
and power waveform. The first capture is by default channel 1, but you can select different channels
(logging off or on) to view, and copy the waveform to the clipboard for pasting into other programs
or for printing.
