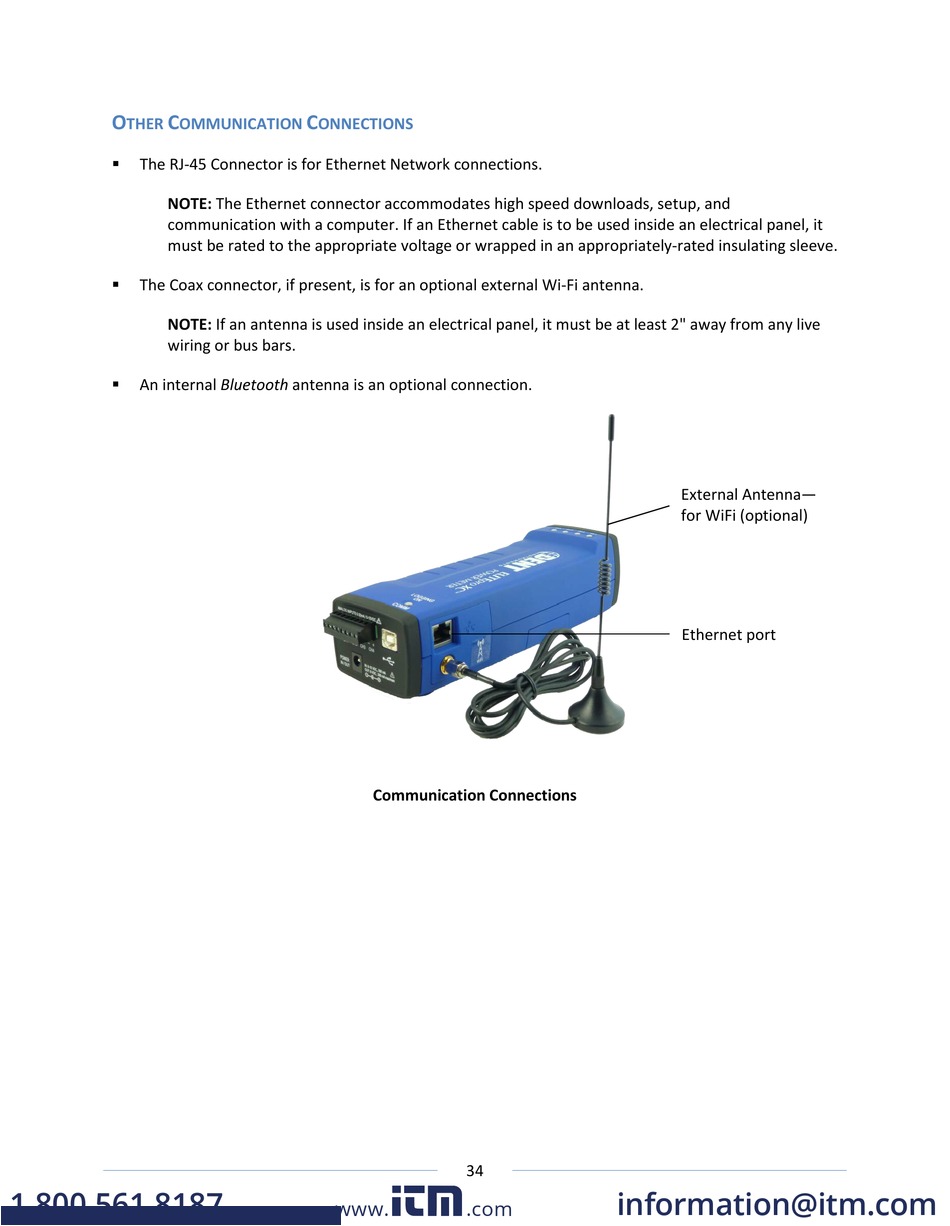

Other Communication Connections - DENT Instruments ELITEpro XC Operator's Manual

O C
THER OMMUNICATION
The RJ-45 Connector is for Ethernet Network connections.

NOTE: The Ethernet connector accommodates high speed downloads, setup, and
communication with a computer. If an Ethernet cable is to be used inside an electrical panel, it
must be rated to the appropriate voltage or wrapped in an appropriately-rated insulating sleeve.
The Coax connector, if present, is for an optional external Wi-Fi antenna.

NOTE: If an antenna is used inside an electrical panel, it must be at least 2" away from any live
wiring or bus bars.
An internal Bluetooth antenna is an optional connection.

1.800.561.8187
C
ONNECTIONS
Communication Connections
34
www. .com
External Antenna—
for WiFi (optional)
Ethernet port
