Function Display - Icom ic-80fx Instruction Manual

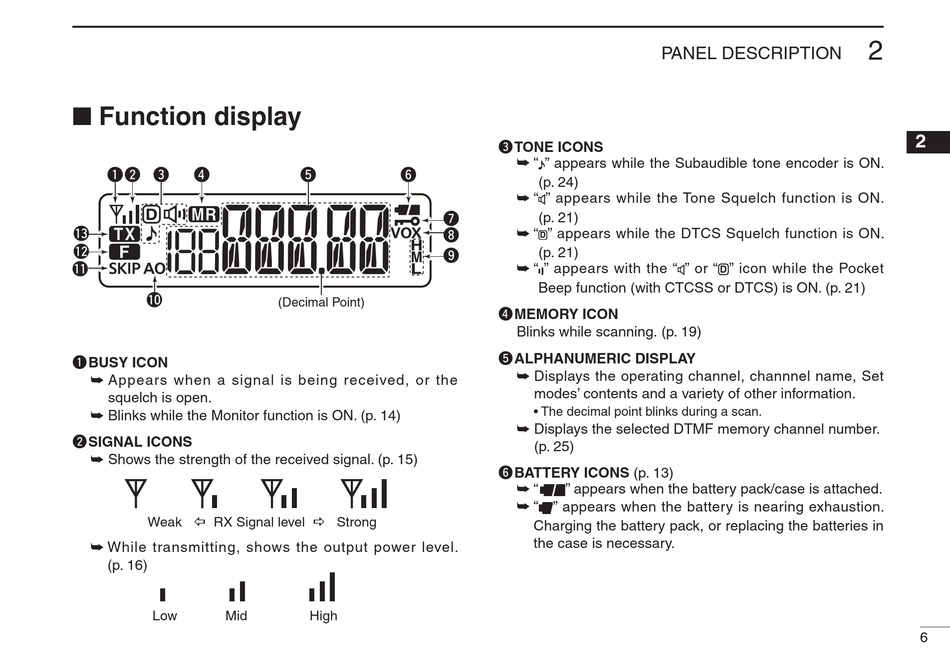

■ Function display

qw e r
!3
!2
!1
!0
q BUSY ICON
➥ Appears when a signal is being received, or the
squelch is open.
➥ Blinks while the Monitor function is ON. (p. 14)
w SIGNAL ICONS
➥ Shows the strength of the received signal. (p. 15)
Weak RX Signal level
➥ While transmitting, shows the output power level.
(p. 16)
Low Mid
t y
u
i
o
(Decimal Point)
Strong
High
PANEL DESCRIPTION
e TONE ICONS
➥ " " appears while the Subaudible tone encoder is ON.
(p. 24)
➥ " " appears while the Tone Squelch function is ON.
(p. 21)
➥ "
" appears while the DTCS Squelch function is ON.
D
(p. 21)
➥ " " appears with the " " or "
Beep function (with CTCSS or DTCS) is ON. (p. 21)
r MEMORY ICON
Blinks while scanning. (p. 19)
t ALPHANUMERIC DISPLAY
➥ Displays the operating channel, channnel name, Set
modes' contents and a variety of other information.
• The decimal point blinks during a scan.
➥ Displays the selected DTMF memory channel number.
(p. 25)
y BATTERY ICONS (p. 13)
➥ "
" appears when the battery pack/case is attached.
➥ " " appears when the battery is nearing exhaustion.
Charging the battery pack, or replacing the batteries in
the case is necessary.
