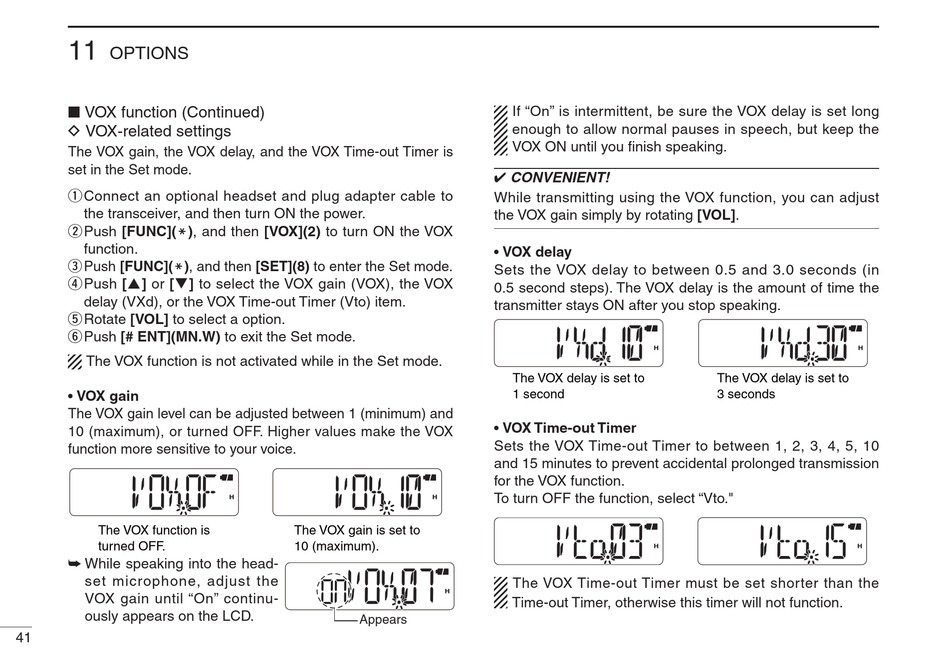

Icom ic-80fx Instruction Manual page 46

11
OPTIONS
■ VOX function (Continued)
D VOX-related settings
The VOX gain, the VOX delay, and the VOX Time-out Timer is
set in the Set mode.
q Connect an optional headset and plug adapter cable to
the transceiver, and then turn ON the power.
w Push [FUNC](M), and then [VOX](2) to turn ON the VOX
function.
e Push [FUNC](M), and then [SET](8) to enter the Set mode.
r Push [ ] or [ ] to select the VOX gain (VOX), the VOX
delay (VXd), or the VOX Time-out Timer (Vto) item.
t Rotate [VOL] to select a option.
y Push [# ENT](MN.W) to exit the Set mode.
The VOX function is not activated while in the Set mode.
VOX gain
•
The VOX gain level can be adjusted between 1 (minimum) and
10 (maximum), or turned OFF. Higher values make the VOX
function more sensitive to your voice.
The VOX function is
turned OFF.
➥ While speaking into the head-
set microphone, adjust the
VOX gain until "On" continu-
ously appears on the LCD.
41
The VOX gain is set to
10 (maximum).
Appears
If "On" is intermittent, be sure the VOX delay is set long
enough to allow normal pauses in speech, but keep the
VOX ON until you fi nish speaking.
✔ CONVENIENT!
While transmitting using the VOX function, you can adjust
the VOX gain simply by rotating [VOL].
VOX delay
•
Sets the VOX delay to between 0.5 and 3.0 seconds (in
0.5 second steps). The VOX delay is the amount of time the
transmitter stays ON after you stop speaking.
The VOX delay is set to
1 second
• VOX Time-out Timer
Sets the VOX Time-out Timer to between 1, 2, 3, 4, 5, 10
and 15 minutes to prevent accidental prolonged transmission
for the VOX function.
To turn OFF the function, select "Vto."
The VOX Time-out Timer must be set shorter than the
Time-out Timer, otherwise this timer will not function.
The VOX delay is set to
3 seconds
