9

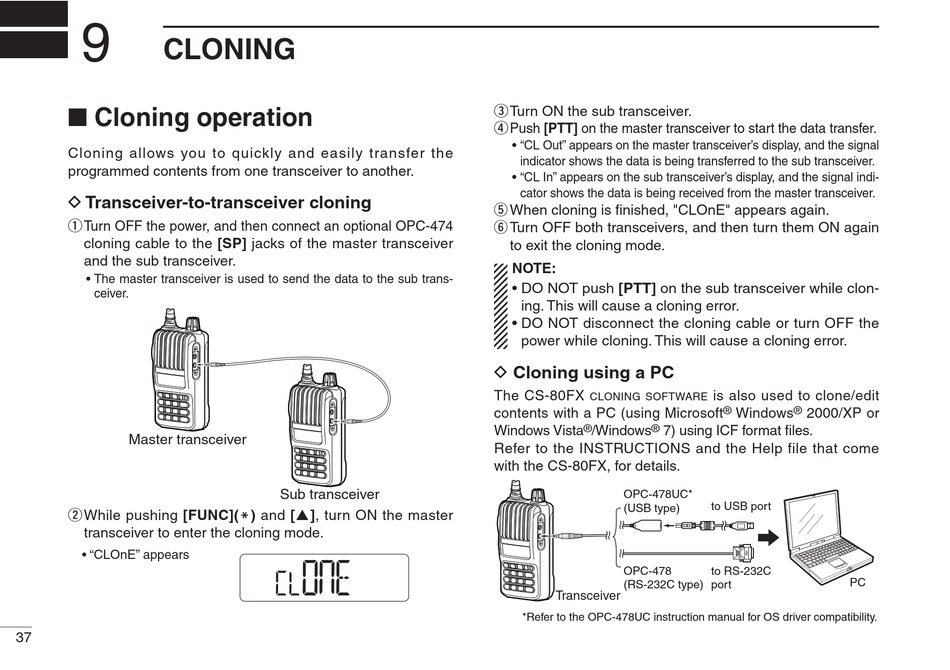

CLONING

■ Cloning operation

Cloning allows you to quickly and easily transfer the
programmed contents from one transceiver to another.
D Transceiver-to-transceiver cloning
q Turn OFF the power, and then connect an optional OPC-474
cloning cable to the [SP] jacks of the master transceiver
and the sub transceiver.
• The master transceiver is used to send the data to the sub trans-
ceiver.
Master transceiver
w While pushing [FUNC](M) and [
transceiver to enter the cloning mode.
• "CLOnE" appears
37
Sub transceiver
], turn ON the master
e Turn ON the sub transceiver.
r Push [PTT] on the master transceiver to start the data transfer.
• "CL Out" appears on the master transceiver's display, and the signal
indicator shows the data is being transferred to the sub transceiver.
• "CL In" appears on the sub transceiver's display, and the signal indi-
cator shows the data is being received from the master transceiver.
t When cloning is fi nished, "CLOnE" appears again.
y Turn OFF both transceivers, and then turn them ON again
to exit the cloning mode.
NOTE:
• DO NOT push [PTT] on the sub transceiver while clon-
ing. This will cause a cloning error.
• DO NOT disconnect the cloning cable or turn OFF the
power while cloning. This will cause a cloning error.
D Cloning using a PC
The CS-80FX
CLONING SOFTWARE
contents with a PC (using Microsoft
Windows Vista ® /Windows ® 7) using ICF format fi les.
Refer to the INSTRUCTIONS and the Help file that come
with the CS-80FX, for details.
OPC-478UC*
(USB type)
OPC-478
(RS-232C type)
Transceiver
*Refer to the OPC-478UC instruction manual for OS driver compatibility.
is also used to clone/edit
® ®
Windows 2000/XP or
to USB port
to RS-232C
PC
port
