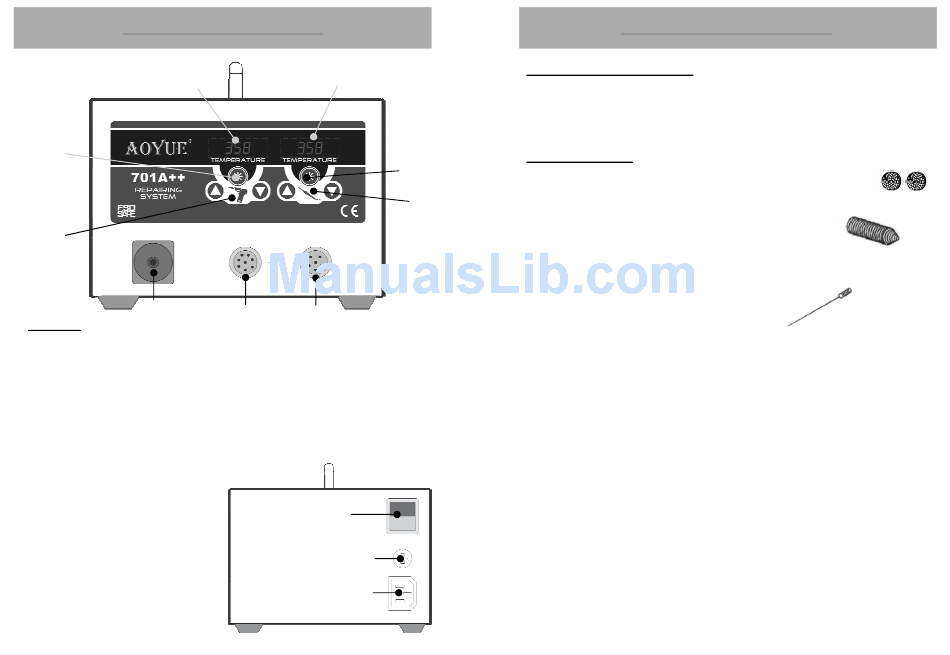

CONTROL PANEL GUIDE

1
4
6
7
LEGEND:
1 — Desoldering Gun Temperature Display
2 — Soldering Iron Temperature Display
3 — Soldering Iron function button
4 — Desoldering Gun function button
5 — Soldering Iron Temperature Control Buttons
6 — Desoldering Gun Temperature Control Buttons
7 — Smoke Absorber Terminal or Vacuum Cap
8 — Desoldering Gun Receptacle
9 — Soldering Iron Receptacle
8 8
2
3
5
8
9
On
Main Power Switch
Off
Fuse
AC plug
Back Panel
CARE and MAINTENANCE
Vacuum Air Terminal Filters
Filters should be cleaned and replaced regularly to avoid dirt which can
clog the air passage. More importantly, this will also effectively clean the
toxic fumes produced during soldering process.
De-Soldering Gun
1. Before usage dampen the filter pads with a little bit of
water to allow efficient air passage and filter action, re-
dampen pads frequently for maximum efficiency.
2. Routinely clean Spring Filter, and replace filter pads
when they are dirty or clogged .
3. The solder pathway can be cleaned using
the provided Nozzle cleaning pin, use the
cleaning pin when pathway
clogged.
4. Desoldering Gun's sensor connection with
the main unit is faulty/ not connected. The device will display "Gun".
Indicating a problem with the contacts of the soldering iron or the tip.
5. Desoldering Gun heating element has reached the end of its life, the
temperature would consistently display a low value followed by "Err"
display. Indicting a problem with the heating element or a reversed
sensor polarity.
Filter Pads
Spring Filter
seems
Cleaning Pin
