CARE and MAINTENANCE

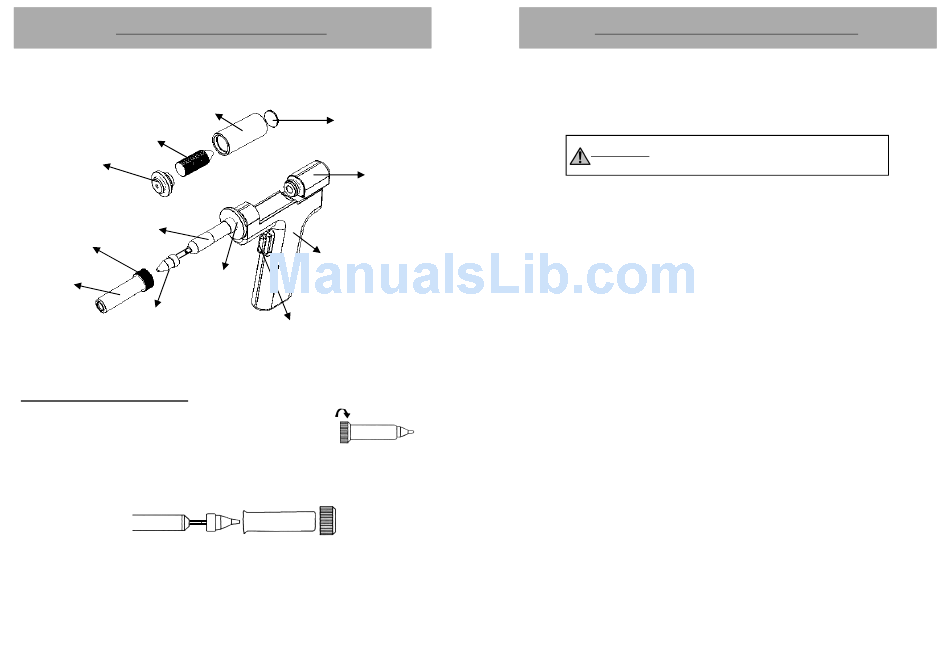

De-Soldering Gun Disassembled illustration:
Filter Pipe
Spring Filter
Filter Pipe
Cap
Heating Element
Assembly
Tip Lock
Tip Cylinder
Heat Guard
Assembly
Desoldering
Tip
Changing Desoldering Tip:
1. Unscrew the Tip Lock and pull out Tip Cylinder
together with the Tip Lock.
2. Pull out Desoldering Tip and replace with new
one.
3. Re-secure nozzle by tightening the Tip Lock on its receptacle.
Heating Element
Desoldering Tip
18 18
Filter Pads
Back Holder
Assembly
De so l de ri ng
Gun Body
Trigger
Tip Cylinder
Tip Lock
ASSEMBL Y and PREPARATIONS
A. Main Station
As soon as the equipment has been removed from the package,
REMOVE THE SCREW located at the center of the bottom of the main
unit. This screw holds the pump in place during transportation.
WARNING: Failure to remove the screw before using the
equipment can cause damage to the system.
B. Soldering Iron
1. See instructions on 2660 soldering iron holder assembly guide.
2. Connect the soldering iron cord assembly to the soldering iron output
terminal found at the lower middle portion of the main unit.
3. Place the soldering iron to the soldering iron stand.
C. Smoke Absorber
1. Attach the smoke absorbing tube to the suction vacuum cap. Make
sure the cord connections are free from tangles.
D. Desoldering Gun
1. Connect the cord of the desoldering gun to the desoldering gun terminal .
2. Connect the vacuum tube to the suction vacuum cap.
3. Place the desoldering gun onto the holder in preparation for usage.
