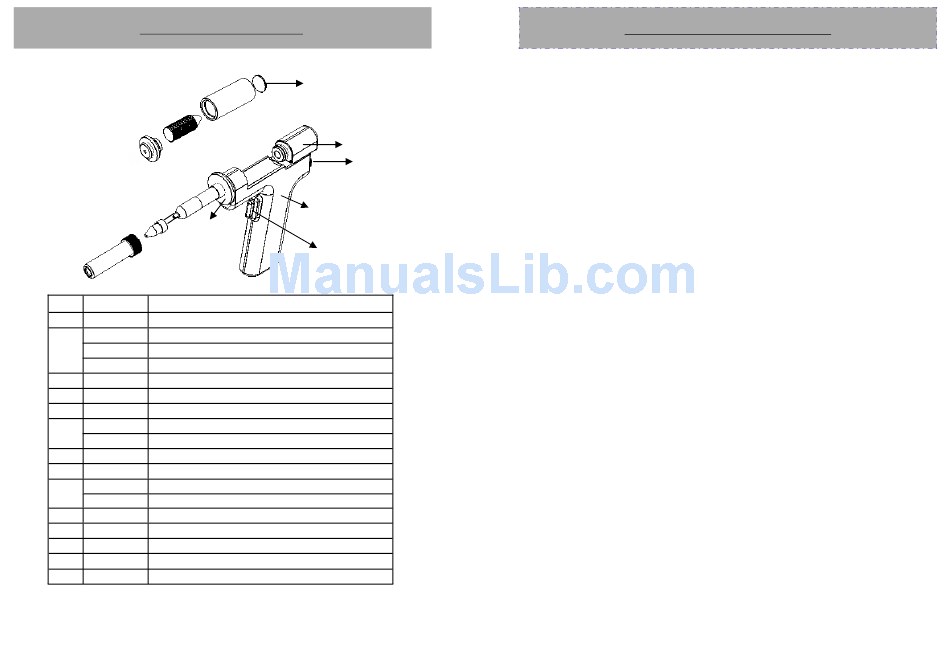

SPARE PARTS LIST
⑪
⑫
⑬
③
②
①
⑭
# # # # Part No. Part No. Part No. Part No.
① 30129 Desoldering Gun Tip Cylinder with Tip Lock
302082 Desoldering Tip 1.0MM
302092 Desoldering Tip 1.5MM
②
301212 Desoldering Tip 1.8MM
③ C005A Desoldering Gun Heating Element
④ 301282 Heat Guard Assembly
⑤ 3021X Red Release Knob
3072D Desoldering Gun Outer Case
⑥
3074D Desoldering Gun Outer Case
⑦ 3021X Release Knob
3035X Back Holder Assembly
⑧
30180X Filter Pad
⑨
3017J Pack Of 6 Filter Pad
⑩ 3022X Filter Pipe
201252 Spring Filter
⑪
3024X Filter Pipe Cap
⑫
Silicone Pad
3025X
⑬
Tip Lock only
20133
⑭
22 22
⑩
⑨
⑧
⑦
⑥
④
⑤
Part Name Part Name Part Name Part Name

PRODUCT DESCRIPTION

The Aoyue I 701A++ Advanced Repairing System is a reworking
NT
equipment that combines the functionality of 70W Soldering Iron, Smoke
Absorber, and Desoldering Gun in one package.
The dual port system of the Int701A++ allows simultaneous use of the
desoldering gun and soldering iron.
It has several advanced features such as solder iron and desoldering
gun digital calibration, configurable auto sleep for the soldering iron and
desoldering gun.
Finally, the unique, innovative design with digital control panel and
display provides precision, safety, and ease of use to match all reworking
requirements.
Features:
Microprocessor-controlled ESD safe equipment.
●
● 3-in-1 repairing system combining Soldering Iron, smoke absorber, and
Desoldering Gun in one sophisticated package.
Digital control and display of soldering iron temperature, and
●
desoldering gun temperature with touch type panel controls for
precision and ease of use.
The desoldering gun is equipped with air cylinder type vacuum pump
●
for stronger suction and zero-crossing circuit that prevents electrical
surges.
Integrated smoke absorber functionality with filter pad to efficiently
●
absorb and filter harmful fumes.
User configurable 1 to 60 minute idle-to-auto-sleep mode for additional
●
device protection and power saving.
● Digital calibration for easy temperature calibration
Compatibility with different kind of soldering tips.
●
