Thank you for purchasing Aoyue Int701A++ Repairing System.
It is important to read the manual before using the equipment.
Please keep manual in accessible place for future reference.
®
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Int701A++ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for aoyue Int701A++

Summary of Contents for aoyue Int701A++

  • Page 1 INSTRUCTION MANUAL INSTRUCTION MANUAL INSTRUCTION MANUAL INSTRUCTION MANUAL Thank you for purchasing Aoyue Int701A++ Repairing System. It is important to read the manual before using the equipment. Please keep manual in accessible place for future reference. Manufacturer: AOYUE INTERNATIONAL LIMITED...

  • Page 2: Table Of Contents

    BASIC TROUBLESHOOTING GUIDE This manual is designed to familiarize and instruct the operator with the proper usage and maintenance of the equipment. The “Care and Safety Precautions” section PROBLEM 1: THE UNIT HAS NO POWER explains the hazards of using any type of soldering or Check if the unit is switched ON.

  • Page 3: Product Description

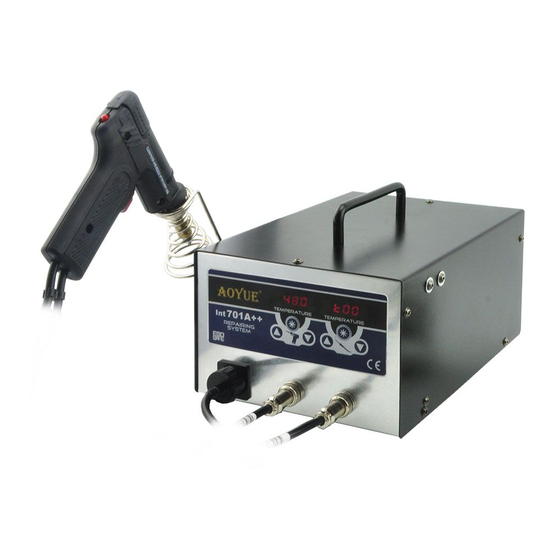

    SPARE PARTS LIST PRODUCT DESCRIPTION The Aoyue I 701A++ Advanced Repairing System is a reworking ⑩ ⑨ equipment that combines the functionality of 70W Soldering Iron, Smoke Absorber, and Desoldering Gun in one package. ⑪ ⑫ The dual port system of the Int701A++ allows simultaneous use of the ⑧...

  • Page 4: Specifications

    SPECIFICATION CARE and MAINTENANCE Cleaning the Desoldering Tip MAIN STATION MAIN STATION MAIN STATION MAIN STATION CAUTION: Power Input : available in 110V / 220V The desoldering gun will be extremely hot. During maintenance, please wear proper protection and work carefully. Station Dimensions: 188(w) x 126(h) x 250(d) mm Step 1...

  • Page 5: Package Inclusion

    CARE and MAINTENANCE PACCKAGE INCLUSIONS WARNING: Unplug the power cord before starting this procedure. 1 unit 701A++Main Station 1 pc. B012 Soldering Iron with Smoke Absorbing function Replacing the Heating Element 1 pc. B1003A Desoldering Gun with 301212 tip (1.8mm) Unscrew the Tip Lock and pull out Tip Cylinder together with the 1 pc.

  • Page 6: Safety Precautions

    SAFETY PRECAUTIONS CARE and MAINTENANCE Changing Filter Pad and Spring Filter: CAUTION: Improper usage can cause serious injury to personnel and/or damage to equipment. For your own safety, please observe 1. Unlock the Filter Pipe by toggling the Press down Release Knob to the ff.

  • Page 7: Assembly And Preparation

    CARE and MAINTENANCE ASSEMBL Y and PREPARATIONS De-Soldering Gun Disassembled illustration: A. Main Station As soon as the equipment has been removed from the package, Filter Pipe REMOVE THE SCREW located at the center of the bottom of the main Filter Pads unit.

  • Page 8: Control Panel Guide

    CONTROL PANEL GUIDE CARE and MAINTENANCE Vacuum Air Terminal Filters Filters should be cleaned and replaced regularly to avoid dirt which can clog the air passage. More importantly, this will also effectively clean the toxic fumes produced during soldering process. De-Soldering Gun 1.

  • Page 9: Operating Guidelines

    CARE and MAINTENANCE OPERATING GUIDELINES IMPORTANT REMINDERS: Blower/Vacuum Air Terminal Filters 1. Make sure the equipment is placed on a flat stable surface and all Filters should be cleaned and replaced regularly to avoid dirt which can clog the air passage.
  • Page 10 OPERATING GUIDELINES DIGITAL CALIBRATION 7. Start using the soldering iron as soon as desired temperature is Solder Iron Digital Temperature Calibration Example reached. ● The external temperature sensor displays 250 degrees. 8. To deactivate the SMOKE ABSORBER function, simultaneously press ●...

  • Page 11: Operating Guidelines

    DIGITAL CALIBRATION OPERATING GUIDELINES H. Utilizing the Desolder Gun Digital Temperature Calibration 7. Check the tip temperature with an external temperature sensor, By default, the system is properly calibrated but for some cases when adjust temperature settings higher or lower for the right temperature. a little adjustment of the desoldering gun temperature is required the Or recalibrate at the desired temperature level following procedure can be done.

  • Page 12: Auto-Sleep Functions

    AUTO SLEEP FUNCTIONS DIGITAL CALIBRATION F. Auto-Sleep Mode (Soldering Iron and Desoldering Gun) G. Utilizing the Solder Iron Digital Temperature Calibration The sleep timer can be configured to power down the soldering iron or By default, the system is properly calibrated but for some cases when desoldering gun after a defined time.
