SAFETY PRECAUTIONS

CAUTION:
Improper usage can cause serious injury to personnel
and/or damage to equipment. For your own safety, please observe
the ff. precautions.
● Check each component after opening the package to make sure
everything is in good condition. If there are any suspected damage, do
not use the item and report the issue to your vendor.
Turn OFF the main power switch and unplug the device when moving
●
the device from one location to another.
Do not strike or subject the main unit to physical shock. Use carefully to
●
avoid injury and damage to any part.
Handle with care.
●
- Never drop or sharply jolt the unit.
- Contains delicate parts that may break if the unit is dropped.
Make sure the equipment is always grounded. Always connect power to
●
a grounded receptacle.
● Temperature may reach as high as 480°C when switched ON.
- Do not use the device near flammable gases, paper and other
flammable materials.
- Do not touch heated parts, which can cause severe burns.
- Do not touch metallic parts near the tip.
● Disconnect the plug from the power source if the unit will not be used
for a long period.
- Turn off power during breaks, if possible.
Use only genuine replacement parts.
●
- Turn off power and let the unit cool before replacing parts.
The unit may produce a small amount of smoke and unusual odor during
●
initial usage. This is normal and should not yield any negative result
when reworking.
Soldering process produces smoke — use on well ventilated place.
●
● Do not alter the unit, specifically the internal circuitry, in any manner.
6 6
CARE and MAINTENANCE
Changing Filter Pad and Spring Filter:

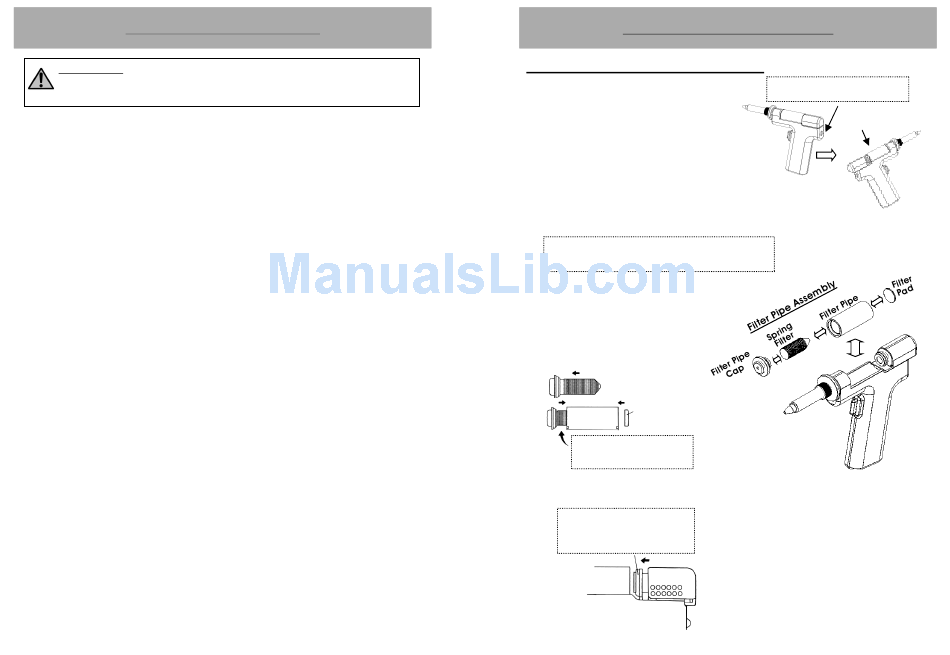

1. Unlock the Filter Pipe by toggling the
Release Knob. The Back Holder
Assembly would spring back to
allow easy extraction of the Filter
Pipe Assembly which houses the
Filter Pipe Cap, Spring Filter, Filter
Pipe and Filter pad.
2. After extracting the Filter Barrel Assembly we can
If solder is collected in two-thirds of the spring
●
filter replace the spring filter.
Replace filter pad if stiff with flux and solder.
●
cleaning or replacement.
3. Re-assemble Filter Pipe
A s s e m b l y ,
Spring Filter
Filter Pad
a t t a c h
s p r i n g
Attach the Filter Pipe
filter to
Cap to the Filter Pipe so
that it does not leak air.
t h e f i l t e r
barrel cap and place back to the de-soldering gun body.
Firmly press the Back Holder
Assembly into the Filter Pipe
in order to properly seat
front cap against the pipe.
4. Push the Back Holder Assembly back
Press down Release Knob to
unlock Back Holder Assembly.
Filter Pipe
Assembly
now take out the filter
spring or the filter pads for
