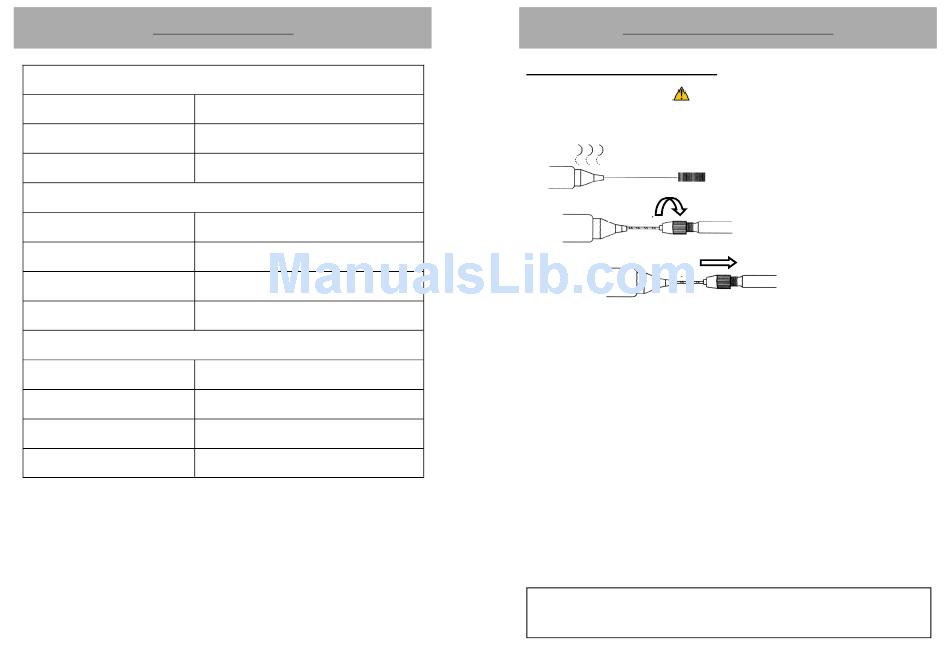

SPECIFICATION
MAIN STATION MAIN STATION MAIN STATION MAIN STATION
Power Input :
Station Dimensions:
Weight:
SOLDERING IRON SOLDERING IRON SOLDERING IRON SOLDERING IRON
Power Consumption:
Temperature Range:
Heating Element:
Output Voltage:
DESOLDERING GUN DESOLDERING GUN
DESOLDERING GUN DESOLDERING GUN
Power Consumption:
Temperature Range:
Heating Element:
Output Voltage:
Specifications are subject to change without prior notice.
4 4
available in 110V / 220V
188(w) x 126(h) x 250(d) mm
5.6Kg
70W
200°C - 480°C
Ceramic Heater
24V
50W
200°C - 480°C
Ceramic Heater
24V
CARE and MAINTENANCE
Cleaning the Desoldering Tip
CAUTION:
The desoldering gun will be extremely hot. During maintenance,
please wear proper protection and work carefully.
Step 1
Step 2
Step 3
Using Cleaning pin:
Caution: Desoldering gun will be hot during maintenance please use
proper materials and equipments to avoid injuries.
When suction efficiency has deteriorated the desoldering gun might be
clogged follow these directions to properly clean the desoldering gun.
1. Turn on the desoldering gun and wait for the nozzle to heat up.
2. Slowly insert the cleaning pin while turning the cleaning pin
clockwise.
3. Pull out the cleaning pin in a straight motion.
4. Repeat steps 2-3 until clog is removed.
●
The cleaning pin will not pass through the nozzle until
the solder inside the nozzle is completely melted.
●
If the cleaning pin does not pass through the hole in
the nozzle, clean with the cleaning drill.
Caution: If the cleaning drill is forced into the nozzle, the drill could break.
Please use the proper sized cleaning pin or cleaning drill for the nozzle diameter.
If the cleaning pin cannot pass through the hole, replace the Tip.
The cleaning pin passes
completely through the hole.
Insert the bit while
turning it clockwise.
Pull the drill bit out straight
without turning it.
