3. Push the black and red wires from inside the electric heater through the nipple and
into the junction box. Then insert the short green ground wire through the nipple
and into the junction box, securing one side of the short green wire to the ground lug
inside the field wiring box of the heater.
4. Remove the small compression nut from the cord grip fitting that is threaded into the
junction box and is now pointed towards the front of the electric heater. Slide the
compression nut onto the cord of the WQS pump. Then slide the cord through the
cord grip fitting and tighten down the compression nut.

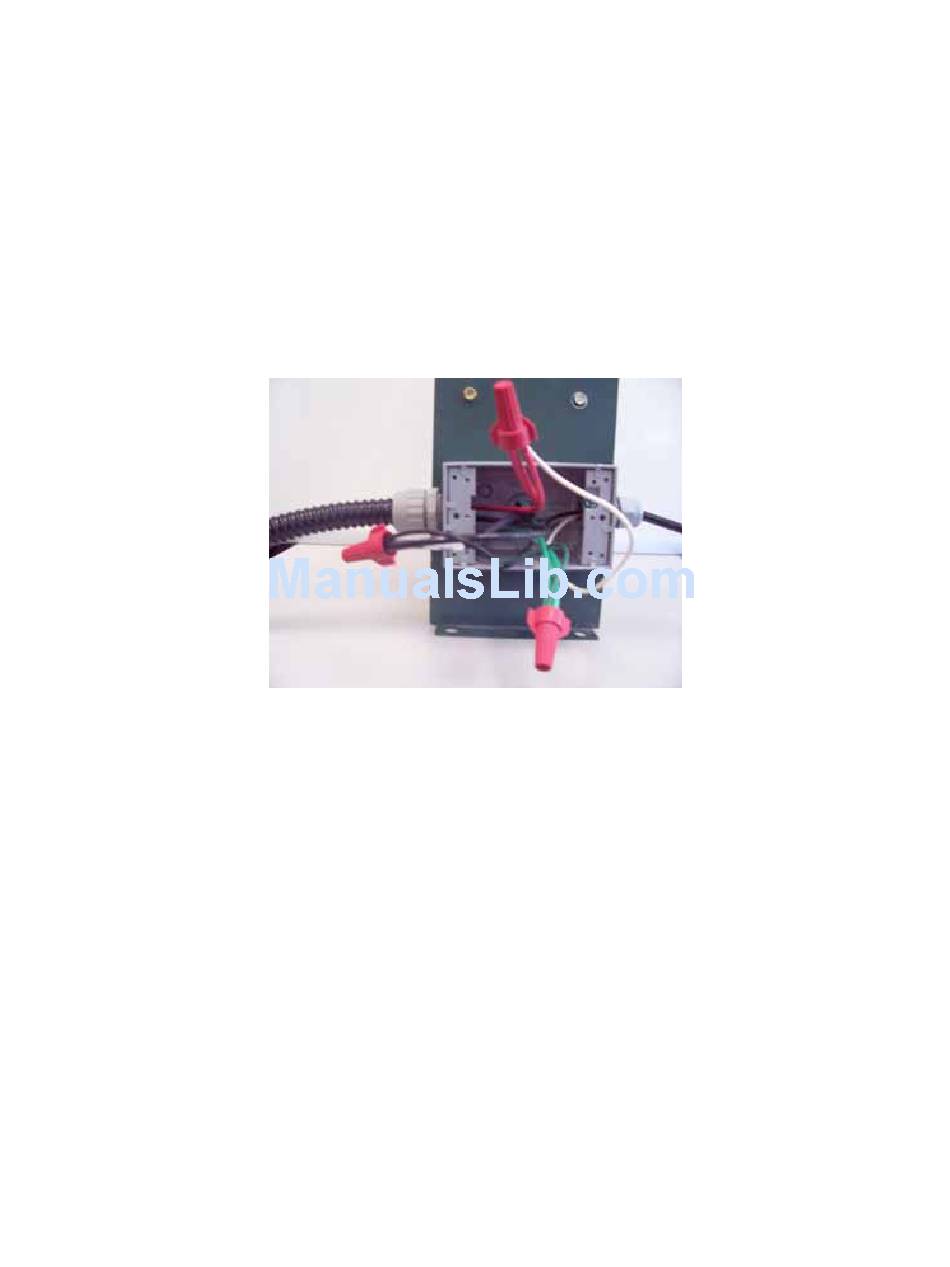

5. Working inside the junction box and using the provided wire nuts, connect all the
black wires together, all the red and white wires together, and all the green wires
together. Wrap each wire nut in electrical tape. Push all the wires back into the
junction box and install the cover.
6. Run the whip over to the Controller Box that is attached to the Hydraulic Power Unit
(HPU). Remove one of the unused 1/2" knockouts in the bottom of the Controller
Box and remove the threaded locknut from the liquid tight fitting. First feed the
wires from the whip through the knockout. Then feed the locknut back over the
wires and thread it back onto the liquid tight fitting.
7. On the contactor located inside the Controller Box, attach the wires from the whip of
the junction box to the LOAD side of the contactor. The black wire goes to terminal
R1, the red wire goes to terminal R3, and the green wire goes to the ground bus bar
on the bottom of the Controller Box.
