10. NOTE: If the optional gas heater or no heater has been purchased, please
proceed to Step 11. Otherwise, attach the electric heater to the PVC Support Base
by lining up the holes in the bottom flange of the heater with the holes in the PVC
support base. Use the provided 3/4" screws to attach the heater to the base. The
plumbing connections of the electric heater should be on the same side as the filter
OUTLET. Use the provided Teflon tape on the threaded fittings of the electric heater.
There is a union that is connected to the pre-plumbed filter-heater connector (Refer
to Figure 4). Separate that union, and thread one half of it onto the bottom
connection of the electric heater. Locate the other pre-plumbed heater outlet
assembly (Refer to Figure 5), separate that union as well, and thread one half of it
onto the top connection of the electric heater. Connect the black union half of the
filter-heater connector to the filter and the white union half to the electric heater.

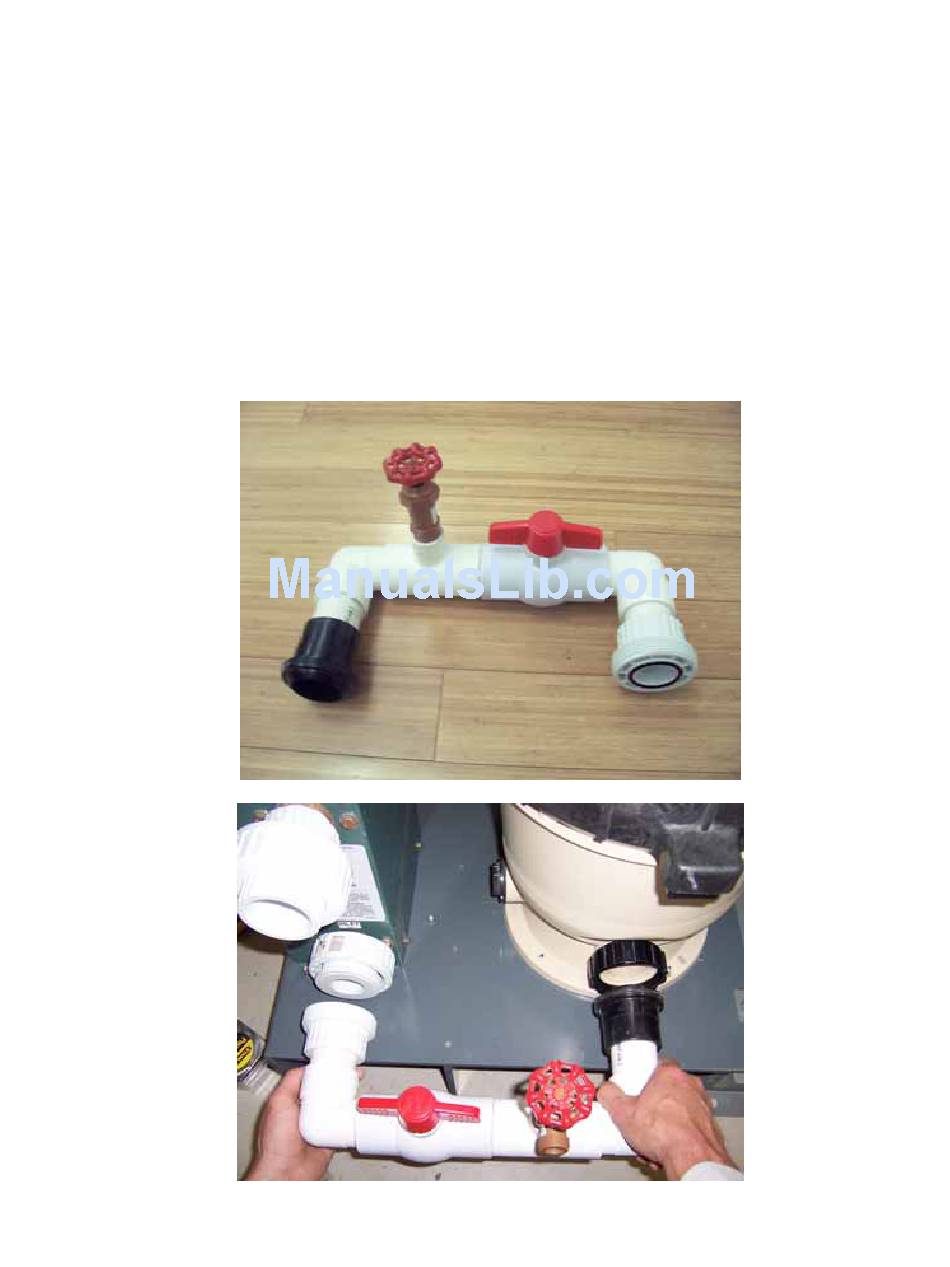

Figure 4: Pre-plumbed Filter-Heater Connector (with Electric Heater ONLY)
