4. Make sure that the o-ring is seated properly inside the pump housing. Insert the
pump motor into the housing so that the specification plate on the motor is showing
and the pump cord is on the same side as the pressure fitting. Tighten down the lock
ring. If done properly, the pump cannot be removed from the foot.

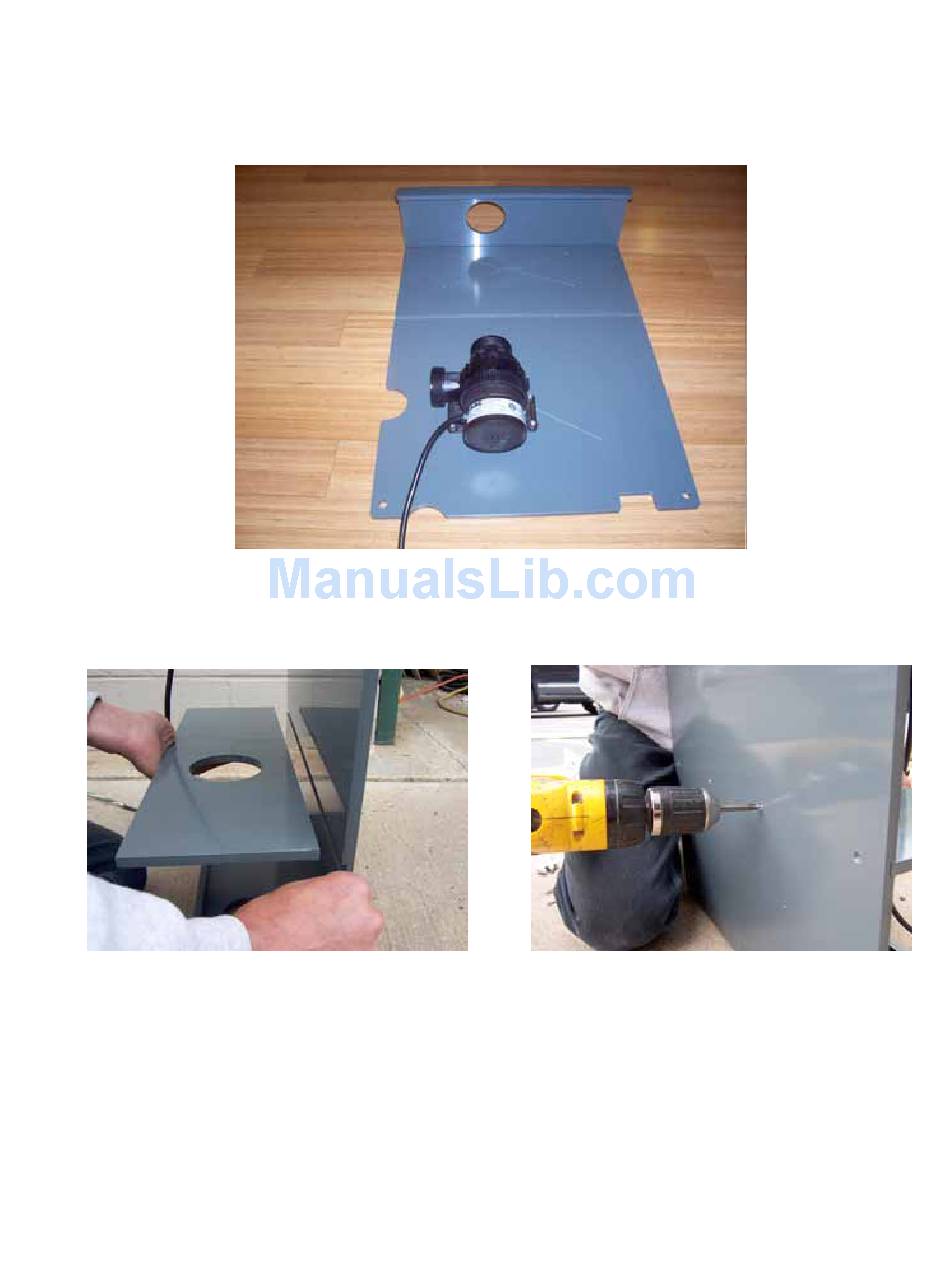

5. Install the PVC support on the underside of the base. Slide the support into the
groove and secure it by inserting the four provided screws through the pre-drilled
holes in the base.
6. Once the Hydraulic Power Unit (HPU) is in place, remove the two reservoir bolts from
the side opposite of the Controller Box that is attached to the HPU. Place the PVC
Support Base "shelf" onto the reservoir so that the holes in the base align with the
bolt holes that were just removed. Replace the two reservoir bolts.
7. Position the filter on the base so that the INLET of the filter is facing the large arc
cutout of the PVC Support Base's long side. The holes in the filter housing should
line up with the holes in the PVC Base. Use the provided 1" screws to secure the
filter to the PVC Base.
8. Attached the pre-plumbed filter connector (Refer to Figure 2) to the pump and filter.
