FLPoolOMWMWQSver1.4.a
2/3/09
9. Slide the pre-plumbed suction assembly (Refer to Figure 3) through the access holes
in the underside of the PVC Support Base. Make certain that the pump union o-ring
is in place before tightening the union nut onto the pump. The ball valve will be
protruding slightly from the PVC Support Base.

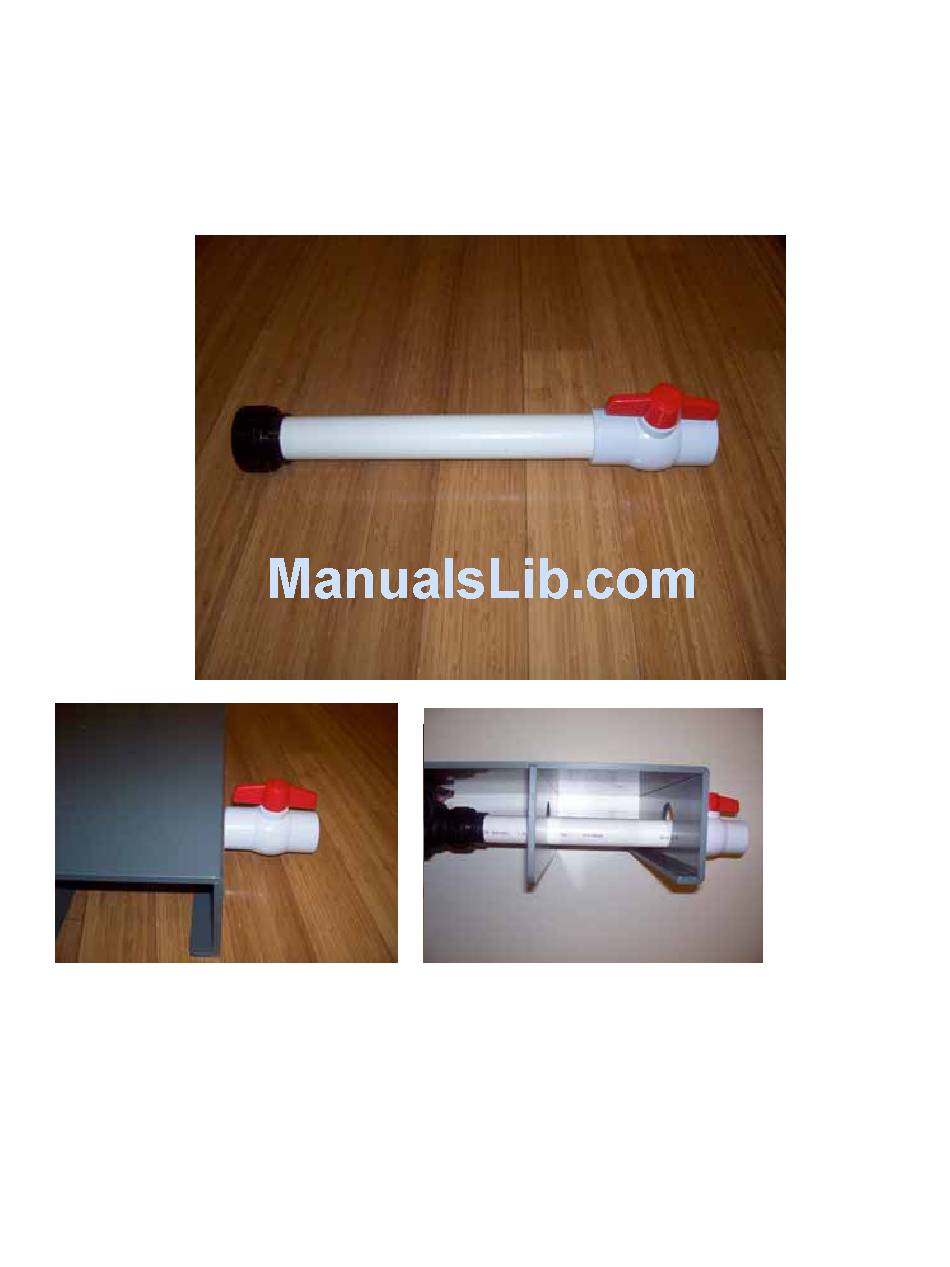

Figure 3: Pre-plumbed Suction Assembly
