1. Unpack the Water Quality System box (See section titled, RECEIVING THE FASTLANE
POOL, Box #2). The circulating pump foot has come pre-attached to the PVC
Support Base (Refer to Figure 1). NOTE: The base is packed in its box upside down
so the pump will be on the underside of the PVC Base.

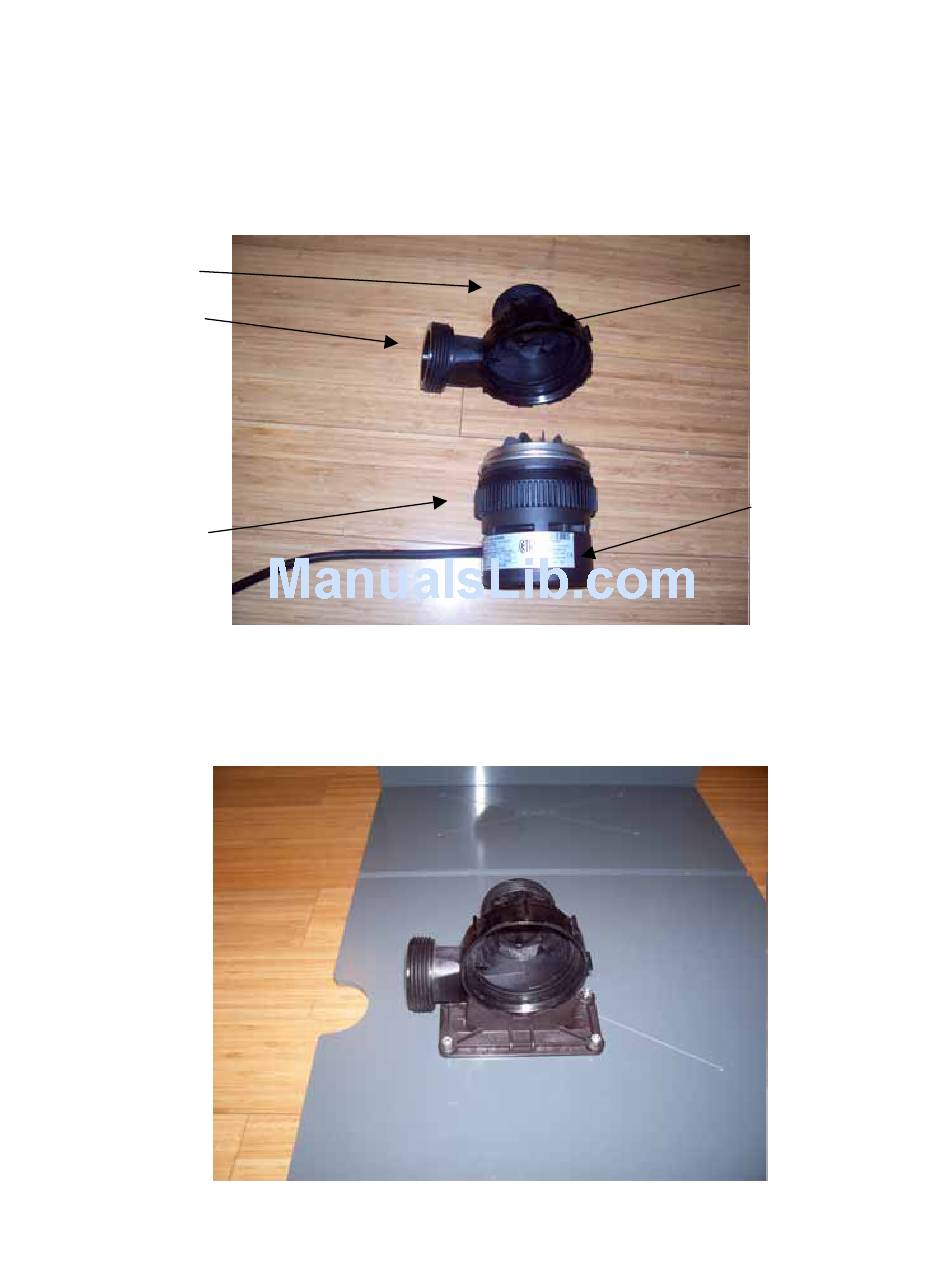

2. Remove the circulating pump from its box. There is a threaded lock ring immediately
behind the plumbing connections on the pump. Unthread the ring and pull the pump
apart.
Suction Fitting
Pressure Fitting
Lock Ring
3. Slide the pump housing on to the foot so that the plumbing connections are facing
the PVC Base's vertical support, and the pressure fitting is lining up with the arc
cutout of the PVC Base's long side. Make sure that the tabs in the motor housing
slide into the grooves on the pump foot.
FLPoolOMWMWQSver1.4.a 2/3/09
Pump Housing
Pump Motor
