FASTLANE
®
By Endless Pools
®
OWNER'S MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the FASTLANE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Endless Pools FASTLANE

Summary of Contents for Endless Pools FASTLANE

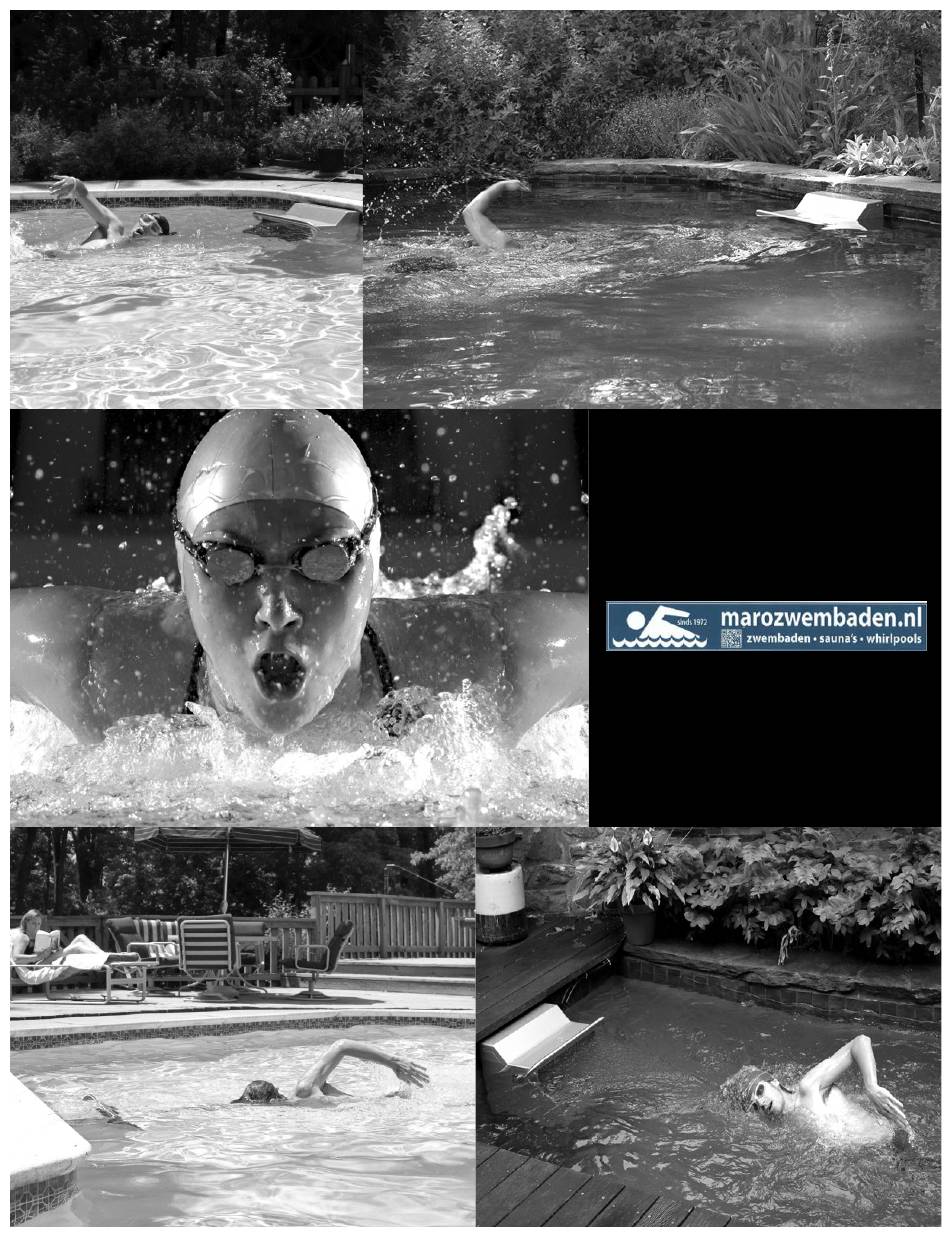

  • Page 1 FASTLANE ® By Endless Pools ® OWNER’S MANUAL...

  • Page 2: Important Safety Information

    Fastlane Swim Unit Installation ® IMPORTANT SAFETY INFORMATION READ AND FOLLOW ALL INSTRUCTIONS SAVE THESE INSTRUCTIONS BEFORE INSTALLING OR USING THIS PRODUCT, READ AND DANGER FOLLOW ALL SAFETY INSTRUCTIONS. FAILURE TO DO SO CAN RESULT IN PROPERTY DAMAGE, FIRE, INJURY, OR DEATH...

  • Page 3: Risk Of Electrical Shock

    Fastlane Swim Unit Installation ® RISK OF ELECTRICAL SHOCK A GROUND FAULT CIRCUIT INTERRUPTER (GFCI) OR RESIDUAL CURRENT DEVICE (RCD) is required for this product. The Ground Fault Circuit Interrupter (GFCI) or Residual Current Device (RCD) is NOT provided with this product. One must be sourced locally and in- stalled into the panel box by a licensed electrician when making the electrical connections to the spa equipment.

  • Page 4: Risk Of Injury

    Fastlane Swim Unit Installation ® TO REDUCE THE RISK OF DROWNING Prolonged immersion in high temperature water can cause hyperthermia. Hyperthermia occurs when the internal temperature of the body is several degrees higher than the normal 98.6°F (37°C). The symptoms of hyperthermia include dizziness, lethargy, drowsiness, and fainting.
  • Page 5 When pumped at high pressure, this hydraulic fluid creates a swim current by turning the shaft of a submerged stainless steel hydraulic motor in the Fastlane Swim Unit, which in turn rotates a 16" (40,6cm) diameter propeller. The Power Unit is activated using a 3-button radio frequency remote control that can turn the unit on and off and adjust the speed.
  • Page 6 The Fastlane can fit in virtually any swimming pool. For optimal water flow, we recommend that you allow at least 12 feet (3,7m) between the wall on which the Fastlane is installed and the opposing wall in line with the Swim Unit. The Fastlane has more than 9 square feet (.83m2) of water intake to eliminate any entrap- ment hazards.

  • Page 7: Wall Mount Bracket

    Note: Please read instructions fully prior to installing the wall mount bracket. 4.A. Gunite Pool If the pool being constructed is gunite, please follow the instructions below. The Wall Mount Fastlane Mounting Kit for Gunite pools includes the following: (refer to Fig 4.1) (1) PVC Wall Bracket (2) Bonding Clamp (2) 3/8"...
  • Page 8 Figures 4.2. and 4.5. The area below the bracket should be no more than 5 degrees less than the vertical down to at least 39" (99cm) below the waterline. The Fastlane is 21" (53,3cm) wide.
  • Page 9 24ft 6in (7,5m). This will allow the hydraulic hoses attached to the Fastlane to terminate just inside the junction box. See section 5 for additional information. The threaded rods must be tied into the pools bonding grid. Secure a bonding clamp to each threaded rod.
  • Page 10 Fastlane Swim Unit Installation ® #8 Solid Copper Wire MUST BE ATTACHED TO POOL BONDING GRID Bonding Clamp (See Detail A) Threaded Bonding Clamp DETAIL A Fig. 4.4 Prior to shooting gunite, it is critical that the opening of each thru-wall and the threaded rods that extend into the finished pool be covered.
  • Page 11 (1) Clear Silicone Position the PVC template where the Fastlane will attach to the pool wall and align the bottom of the template with the expected water level in the pool (which will typically be located at the centerline of the skimmer) as shown in Figure 4.6.
  • Page 12 Fastlane Swim Unit Installation ® Install the star thru-wall fittings with the holes for the cover at 12, 3, 6, and 9 (clock positions) as shown in Figure 4.7 Pool Wall Star Thru-Wall Fitting Holes in thru-wall fitting oriented at 12, 3, 6, 9 clock positions Fig.
  • Page 13 In this case, the flex pipe between the wall mount bracket and the junction box must be 24ft 6in (7,5m). This will allow the hydraulic hose attached to the Fastlane to terminate just inside the junction box. Refer to section 5 for additional information.
  • Page 14 Prior to pouring concrete, it is critical that the opening of each thru-wall and the sacrificial bolt be covered. No concrete can be embedded in these areas. Pour the concrete collar around the top flange of the pool encasing the threaded rods and conduit in place. This encasement will help secure the Fastlane (Fig 4.12). Threaded Rod...
  • Page 15 Fastlane Swim Unit Installation ® After the concrete has cured remove the sacrificial 3/8” (9,5mm) washers and bolts and install the pool liner. Before beginning the liner installation, be sure to note the orientation of the star thru-wall holes at the 12, 3, 6, and 9 (clock positions) as they will be hidden once the liner is installed.
  • Page 16 4.C. Gunite Pool with a Vinyl Liner If the pool being constructed is a gunite pool with a vinyl liner, please follow the instructions below. The Wall Mount Fastlane Mounting Kit for steel/polymer/gunite pools with a vinyl liner includes the following: (1) PVC Wall Bracket (2) Bonding Clamp (2) 3/8”...
  • Page 17 Fastlane Swim Unit Installation ® Thread the 3/8” (9,5mm) jam nut onto the threaded rod. Thread the hex coupling onto the threaded rod so that half of the hex coupling is threaded onto the rod and the other half that’s facing the pool is protruding off the threaded rod.
  • Page 18 Once encased in concrete, these rods will serve as a suitable hanger. The threaded rods must penetrate 1-1/4" to 1-1/2" (31,8mm x 38mm) into the finished pool and will be used to hang the Fastlane (Fig 4.18). Wall Bracket...
  • Page 19 24ft 6in (7,5m). This will allow the hydraulic hose attached to the Fastlane to terminate just inside the junction box. Refer to section 5 for additional information. The threaded rods must be tied into the pools bonding grid. Secure a bonding clamp to each threaded rod.
  • Page 20 Fastlane Swim Unit Installation ® After the liner is installed, add water to the pool to weigh the liner down pulling it tight. When the liner is tight, cut the holes for each thru-wall fitting and threaded rod hole using a sharp utility knife. Cut the holes as small as possible for the threaded rods (Fig 4.22).
  • Page 21 Remove the hardware from the PVC bracket. In this application the bracket will serve primarily as a template. Position the bracket on the pool wall where the Fastlane will be placed. Align the etched mark on the bracket with the expected waterline, which is typically halfway up the skimmer opening. The bracket must be level on the pool wall.
  • Page 22 1-1/2” (38mm) into the pool. Install an additional flat washer and jam nut onto each threaded Drawing Name: Part Name: Drawing Number: FIBERGLASS FASTLANE INSTALLATION TRIMMING OF BRACKET Part#-Rev rod on the inside of the pool (Fig 4.26 DETAIL B).
  • Page 23 In this case, the flex pipe between the wall mount bracket and the junction box must be 24ft 6in (7,5m). This will allow the hydraulic hoses attached to the Fastlane to terminate just inside the junction box. See section 5 for additional information.
  • Page 24 No concrete can be embedded in these areas. When all of the connections on the outside of the pool are complete, a concrete collar should be poured around the threaded rods and conduit. This encasement will help secure the Fastlane (Fig 4.30) Threaded Rod...
  • Page 25 It is at the junction box where a step up to 1/2" run hose occurs. The hydraulic hose from the Fastlane Swim Unit to the junction box is 3/8" (9,5mm) and the run hose from the junction box to the Power Unit is 1/2".
  • Page 26 The packaging can be collapsed and used as a protective surface upon which to assemble the Fastlane. The foam packing material can be used to wedge under the base to prevent it from tipping over. When assembling the Fastlane, a low torque setting should be used on the drill to prevent the holes in the acrylic from stripping.
  • Page 27 Make sure that the stainless steel bonding wire attached to the motor mount is positioned inside of the upper housing. Repeat this process for the other side of the Fastlane 1" Machine Screw (4 per side) Fig.
  • Page 28 Swim Unit Installation ® 6.7 Carefully lay the Fastlane onto its face. Position the hydraulic hoses up the back of the upper housing. The two hat sections will be placed over the hydraulic hoses. Make sure that the mounting hole in the end of the hat section is facing up.
  • Page 29 Fastlane Swim Unit Installation ® 6.9 Slide the horizontal water-conditioning grill back into its track inside the housing. The horizontal grill is the wider of the two grills (Fig 6.7). Slide the Horizontal Grill back into place Fig. 6.7 6.10 Install the stainless steel grab bar to the upper housing using the provided stainless steel screws and lock nuts.
  • Page 30 Fastlane Swim Unit Installation ® 6.11 Reattach the throat to the upper housing. Again, there will be 2 screws on either side of the throat (Fig 6.9). Fig. 6.9 6.12 Slide the vertical water-conditioning grill back down into the housing (Fig 6.10).
  • Page 31 Fastlane Fig. 6.11 6.14 Once the Fastlane is installed in the pool, place the housing lid onto the housing and use the provided screws to attach. There will be three screws per side, for a total of six (Fig 6.12).
  • Page 32 Fig. 7.1 Using two people, carefully lower the Fastlane into the pool. Align the holes at the top of the protective hat sections with the threaded mounting rods and rest the Fastlane into place. The Fastlane will hang from the mounting rods.
  • Page 33 DECK MOUNT FASTLANE HOSE COVER TRAY INSTALLATION 8.1 Choose where the Fastlane is to be placed in the pool. The water depth must be 39" (99cm). There must be a minimum of 24" (61cm) between the Fastlane and any adjacent wall or pool obstruction.
  • Page 34 Fig. 9.1 9.2 Carefully lay the assembled Fastlane down on its front face. There are six pre-drilled holes in the center of the top housing (between the protective hat channels). Align the top set of holes in the rear of the housing with appropriate number hole in the hanger bracket (if the freeboard is 6"...
  • Page 35 9.6 Place the Fastlane lid onto the top of the Fastlane and use the six 3/4" (19mm) stainless steel screws that were provided (3 on each side) (See Fig 6.12).
  • Page 36 Fastlane Swim Unit Installation ® Section 10 INSTALLATION OF THE HYDRAULIC POWER UNIT 10.1 Placement Considerations: The Power Unit should be placed on a flat, level surface. If placing outside, it is recommended the Outdoor Power Unit Weather Guard be purchased (see Fig 10.1), but should not be subject to driving rain.

  • Page 37: Hydraulic Power Unit

    Fastlane Swim Unit Installation ® Section 11A ELECTRICAL REQUIREMENTS FOR THE UNITED STATES (60HZ) (and countries with similar electrical requirements) A Ground Fault Circuit Interrupter (GFCI) is required for this product. A GFCI is a device that shuts off an electrical circuit when it detects that electricity is flowing along an unintended path. The path could be through a person or water.
  • Page 38 ELECTRICAL REQUIREMENTS FOR THE UK (50HZ) (and countries with similar electrical requirements) The unique design of the Fastlane facilitates sales to UK and international customers. The Fastlane is shipped in kit form for easy assembly and installation into any new conventional pool following the de- tailed instructions provided.
  • Page 39 (19L) bucket used to fill the power unit. 12.4 Turn on the Fastlane, making sure to hold the hose firmly in your hand over the bucket. The returning hydraulic fluid will flow into the bucket. The system will automatically shut off when the float level switch inside the fluid reservoir is tripped.
  • Page 40 All Deckmount Fastlane shipments include a copper bonding lug that's pre-attached to the hose cover tray (deck plate). Once the Fastlane is installed into the pool, the stainless steel wire that exits the top of the unit must be attached to the bonding lug on the hose cover tray. A #8 solid copper wire is then attached to the bonding lug which must tie into the pool's bonding grid.
  • Page 41 ® Section 13 WALL MOUNTED FASTLANE BONDING . Stainless steel bonding wire that exits the top of the Fastlane attached to threaded mounting rod. . Bonding clamps attached to threaded mounting rods tied to pool bonding grid with #8 solid copper wire.
  • Page 42 Swim Unit Installation ® Section 13 DECK MOUNTED FASTLANE BONDING Stainless steel bonding wire that exits the top of the Fastlane attached to bonding lug on the hose cover tray. Bonding lug on hose cover tray tied to pool equipment with #8 solid copper wire.
  • Page 43 Attach stainless steel "Bonding Test Wire" to the bonding lug located on the hydraulic power unit. 2) Run the test wire across the pool deck to the Fastlane bonding connection. For Wall Mount units, the connection will be at the threaded mounting rod (as shown). For Deck Mount units it will be at the hose cover tray.

  • Page 44: General Information

    The hydraulic power unit controller is equipped with a built-in timer, shutting the unit off after 30 minutes. The Fastlane will “remember” the speed of the swim current at which it was turned off and will default to that same speed when the unit is turned back on.
  • Page 45 Endless Pool winterizing procedures. • Do not use the Fastlane if there is any evidence of damage or tampering. Call the Endless Pools Customer Service Department at 800 910 2714 immediately. The Submerged Suction Outlet Model #29-19 (part #124011) must be secured as described in this manual before the Fastlane is used again.
  • Page 46 Prepaid returns of all Fastlane products are accepted less a 10% restocking fee, up to 30 days from the date of purchase if undamaged and in its original shipping containers. Accessories, options and equipment that have been used are non-refundable All product returns require proper pre-authorization from our Customer Service Department and must be shipped to the address shown below.
  • Page 48 Endless Pools • 1601 Dutton Mill Rd • Aston, PA 19014-2931 D30001 0818 800-910-2714 US • 610-497-8693 fax • www.myendlesspool.com © 2018 Endless Pools...
