FASTLANE HYDRAULIC POWER UNIT ASSEMBLY

Placement Considerations

The Hydraulic Power Unit (HPU) should be elevated from the ground and placed on a flat
surface that can accommodate both the HPU and the PVC Support Base for the Water
Quality System (WQS). If placing the HPU outside, it is recommended the Outdoor Power
Unit with Weather Guard be purchased to protect it against the everyday elements. If
placing the unit indoors at a level below the pool deck, such as a basement, a floor drain is
highly recommended to accommodate the unlikely siphoning of the pool through a hole in a
hydraulic run hose. Whether placing indoors or outdoors, this is an air-cooled unit and
must have ample ventilation. Therefore, a minimum of 12" of air space must be provided
on all sides of the HPU motor. In addition, the HPU needs to be checked periodically for
maintenance and should be easily accessible.

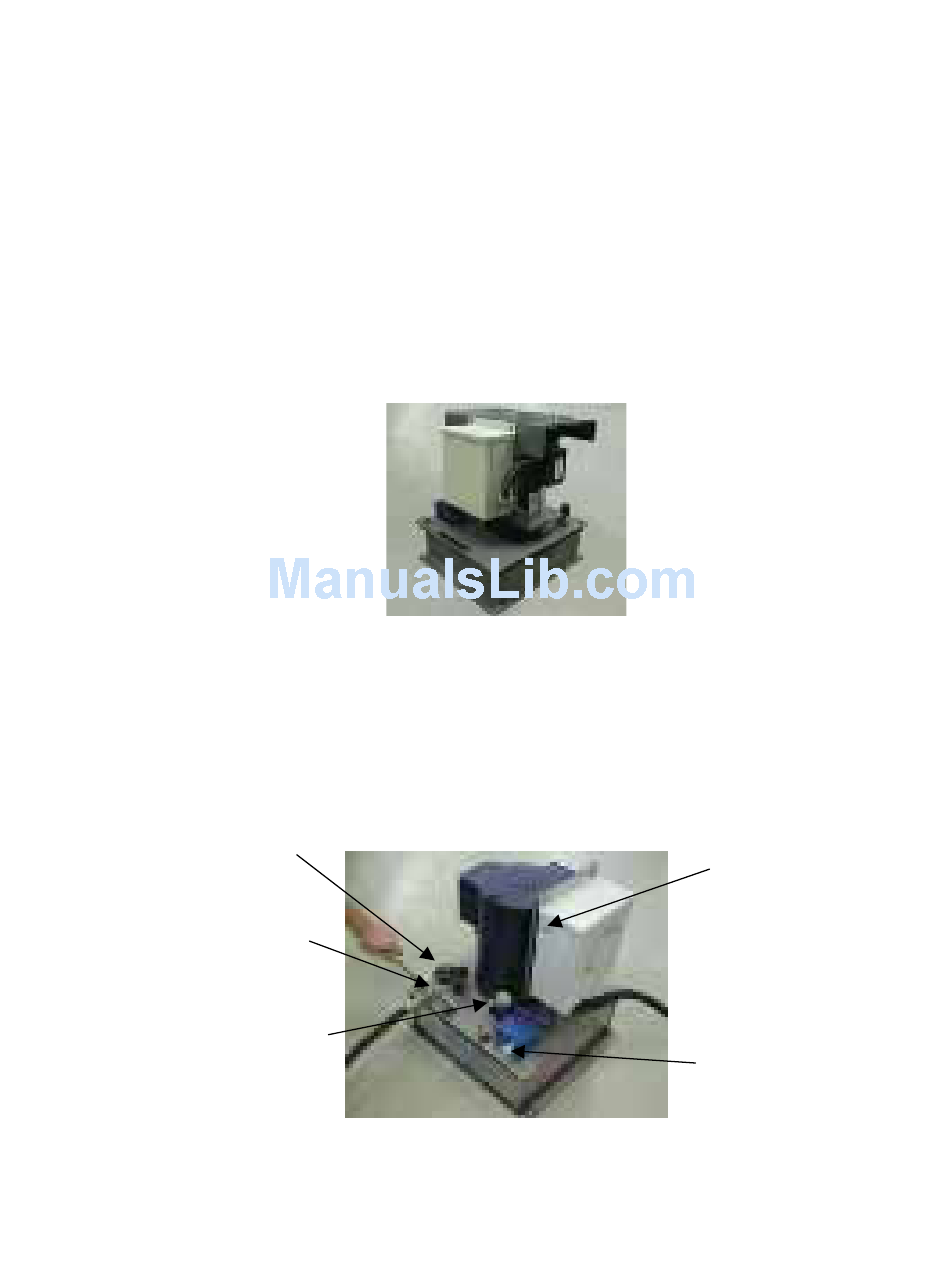

1. Carefully remove the HPU from its packaging. NOTE: The HPU is very heavy.
2. Place the HPU in the selected position and verify that the hose connections are
pointed in the desired direction.
3. Connect the hydraulic hoses that either hang over the pool wall or go through the
pool liner to the Power Unit. NOTE: The low-pressure hose has red tape on the
end. Connect the low-pressure line to the post at the fill cap and the high-pressure
line to the port with the proportional relief valve.
Low Pressure
Proportional Relief Valve
FLPoolOMWMWQSver1.4.a
Fill Cap
2/3/09
Antenna
High Pressure
