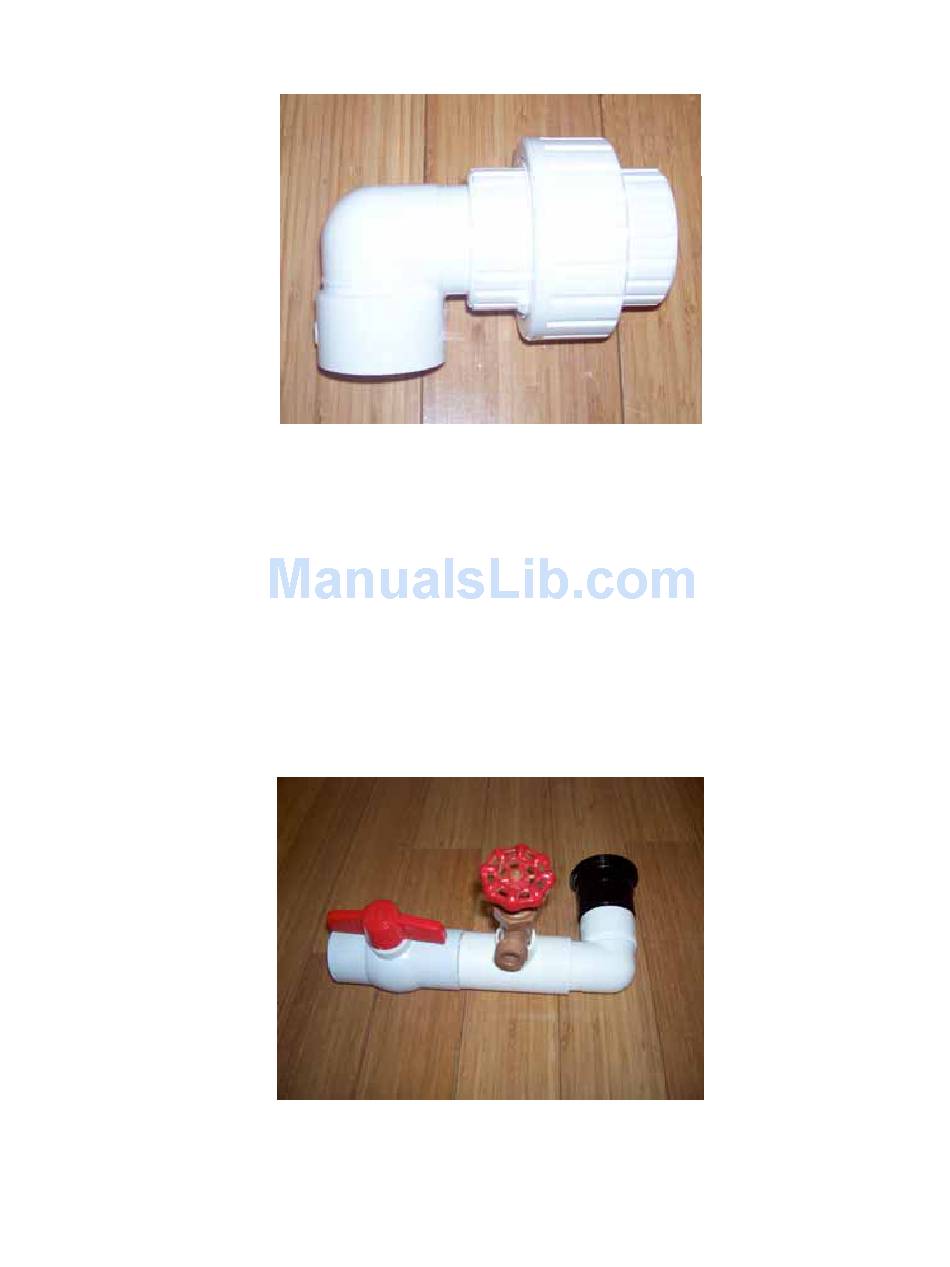

Figure 5: Pre-plumbed Heater Outlet Assembly (with Electric Heater ONLY)
11. NOTE: This step is to be followed only if there is no heater or if a gas heater
is being used. Connect the pre-plumbed filter-return assembly (Refer to Figure 6)
to the filter outlet. If there is no optional gas heater, glue the flexible PVC pipe
directly into the ball valve of the filter-return assembly and glue directly into the
elbow on the return fitting poolside (See section titled, CONNECTING RETURN WALL
FITTING, Refer to Diagram #4: Return Wall Fitting Diagram). If the optional gas
heater has been purchased, glue the flexible PVC pipe directly into the ball valve of
the filter-return assembly and glue directly into the gas heater inlet line. Glue the
additional length of flexible PVC pipe between the gas heater outlet and the elbow on
the return fitting poolside. The location of the gas heater will be dictated by the
heater manufacturer's specifications, local codes, and gas supply.
Figure 6: Pre-plumbed Filter-Return Assembly (without Electric Heater ONLY)
12. Glue another length of flexible PVC pipe into the ball valve of the pre-plumbed
suction assembly (Refer to Figure 3) and glue the other end into the elbow on the
skimmer / suction fitting poolside. (See section titled, SKIMMER ASSEMBLY, Refer to
Diagram #3: Skimmer / Suction Thru-Wall Diagram)
