Connecting Return Wall Fitting; Diagram #4: Return Wall Fitting Diagram; Drainage - Endless Pools FASTLANE Owner's Manual

Page 13 of 32
• Push fitting (#8) through the wall of the pool from the inside. MAKE SURE TO USE A
GASKET (#9) on both sides of the wall of the pool. Place the cork ring next to the
gasket outside the pool and secure the wall-fitting nut (#10) to (#8) now sticking
through the pool wall. Tighten with a large pair of channel locks. Make sure the nut is
very snug but do not over-tighten, as this may crack the fitting.
• Outside the pool, glue the male portion of the street elbow (#6) into the tailpiece of the
thru-wall fitting (#8).
• From inside the pool, thread the eyeball fitting into the thru-wall fitting (#8). Point the
eyeball towards the bottom of the pool for optimal water circulation in the Fastlane Pool.
• When the water quality system equipment needs maintenance, the eyeball fitting should
be removed and the provided plug should be threaded into the thru-wall fitting (#8) to
prevent the pool from draining.

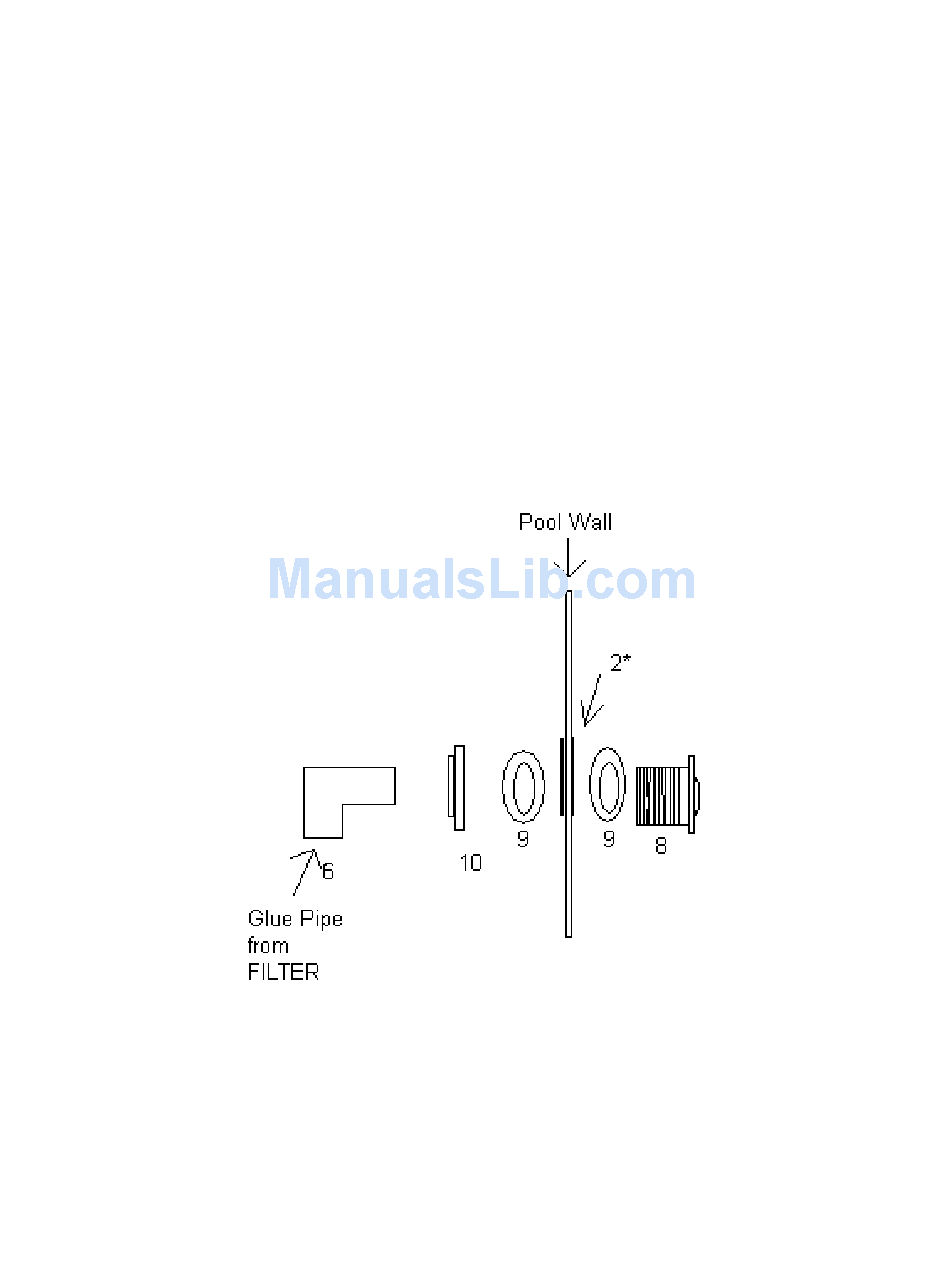

DIAGRAM #4: RETURN WALL FITTING DIAGRAM

Drainage

Drainage needs to be provided around the pool and near the water quality equipment. It is
important to be prepared in the unlikely event of a leak. If operating the Fastlane Pool
indoors, it is ideal to install floor drains in the area around the pool's perimeter, but not
directly under the pool. It is worth the time and effort now to install a drainage system
rather than be unprepared in the event of a mishap.
FLPoolOMWMWQSver1.4.a

CONNECTING RETURN WALL FITTING

(Refer to Diagram #4: Return Wall Fitting Diagram)
Thru-Wall
2/3/09
