ELECTRICAL CONNECTION FOR THE WATER QUALITY SYSTEM

NOTE: A licensed electrician must complete all electrical connections.
If not already done so, connect the 6' electrical whip from the Controller Box to the
incoming 220-volt, 30-amp GFCI electrical supply lines.
For a Water Quality System (WQS) without a heater:
1. Remove one of the unused 1/2" knockouts in the bottom of the Controller Box that is
attached to the Hydraulic Power Unit. Slide the liquid tight fitting over the cord of
the WQS pump with the compression nut end first. With the liquid tight fitting still
loose on the cord, push the threaded end of the fitting into that hole in the Controller
Box and determine the length of cord that will need to feed into the box.
2. When the correct length is determined, tighten the compression nut on the cord.
Then feed the locknut over the cord and thread the locknut onto the fitting to
securely affix it to the Controller Box.
3. On the contactor located inside the Controller Box, attach the WQS pump's cord to
the LOAD side of the contactor. The black wire goes to terminal R1, the white wire
goes to terminal R3, and the green wire goes to the ground bus bar on the bottom of
the Controller Box.
For a Water Quality System with an Electric Heater:

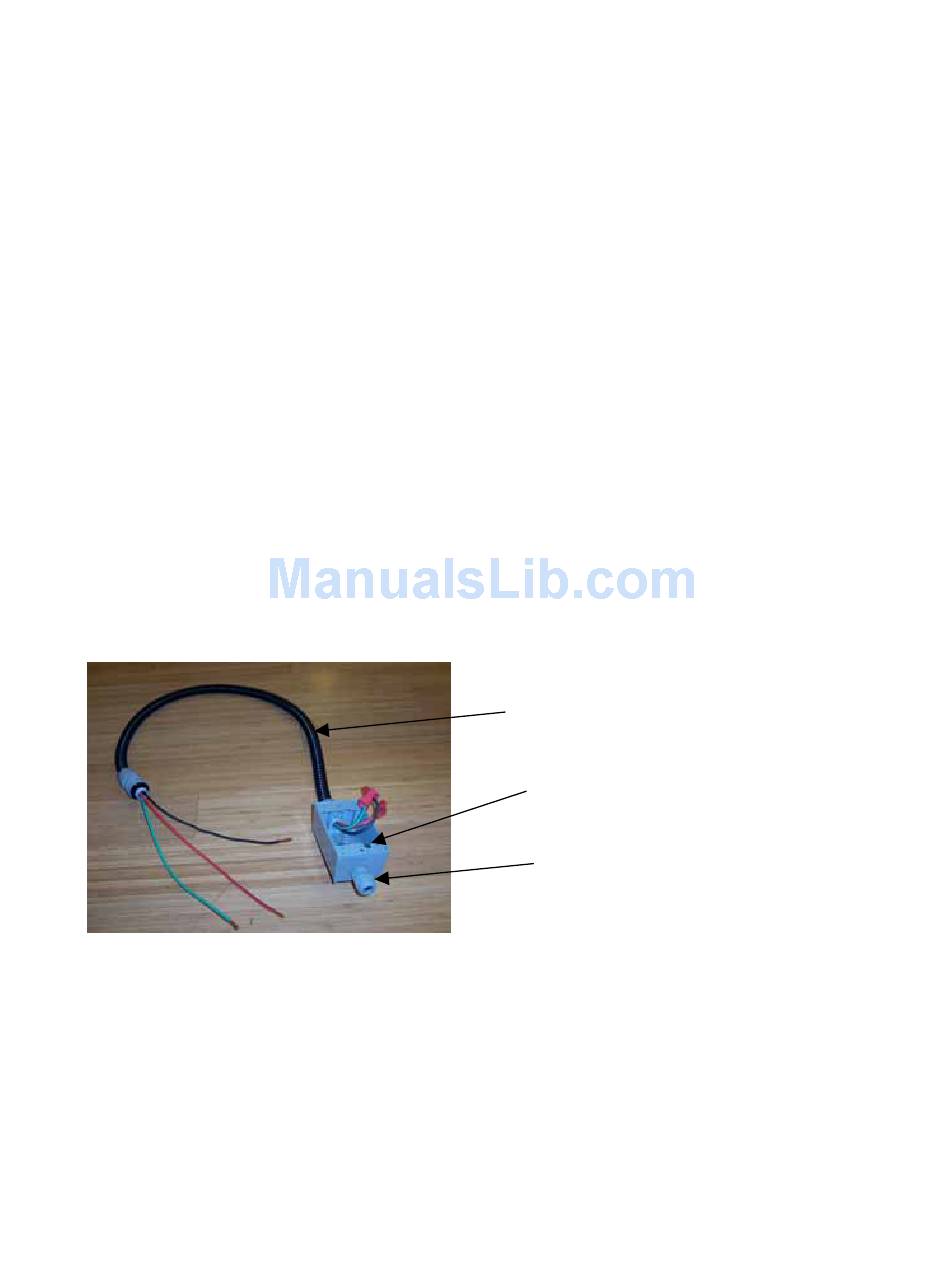

1. Inside the water quality system packaging, there is an electrical whip with a junction
box at one end.
2. If not done already, install the short threaded nipple into the backside of the junction
box. This is done by first threading the nipple into the junction box, and then from
inside the box, threading one of the conduit lock nuts onto the nipple, thus locking
the nipple onto the junction box. Slide one of the washers onto the nipple end that
protrudes from the junction box. NOTE: The washers should be positioned so
that the raised portion of the washer is facing the heater box. Remove the
knockout cover from the side of the electric heater and slide the nipple with washer
through the knockout. Then, from inside the heater, install the other washer and
other conduit lock nut to the nipple, securing the junction box onto the side of the
electric heater. When fastened to the heater, the whip connected to the junction box
should be pointing towards the Hydraulic Power Unit.
FLPoolOMWMWQSver1.4.a
Whip (to HPU)
Junction Box (w/ hole and
threaded nipple on back)
Cord Grip Fitting
