System board connectors

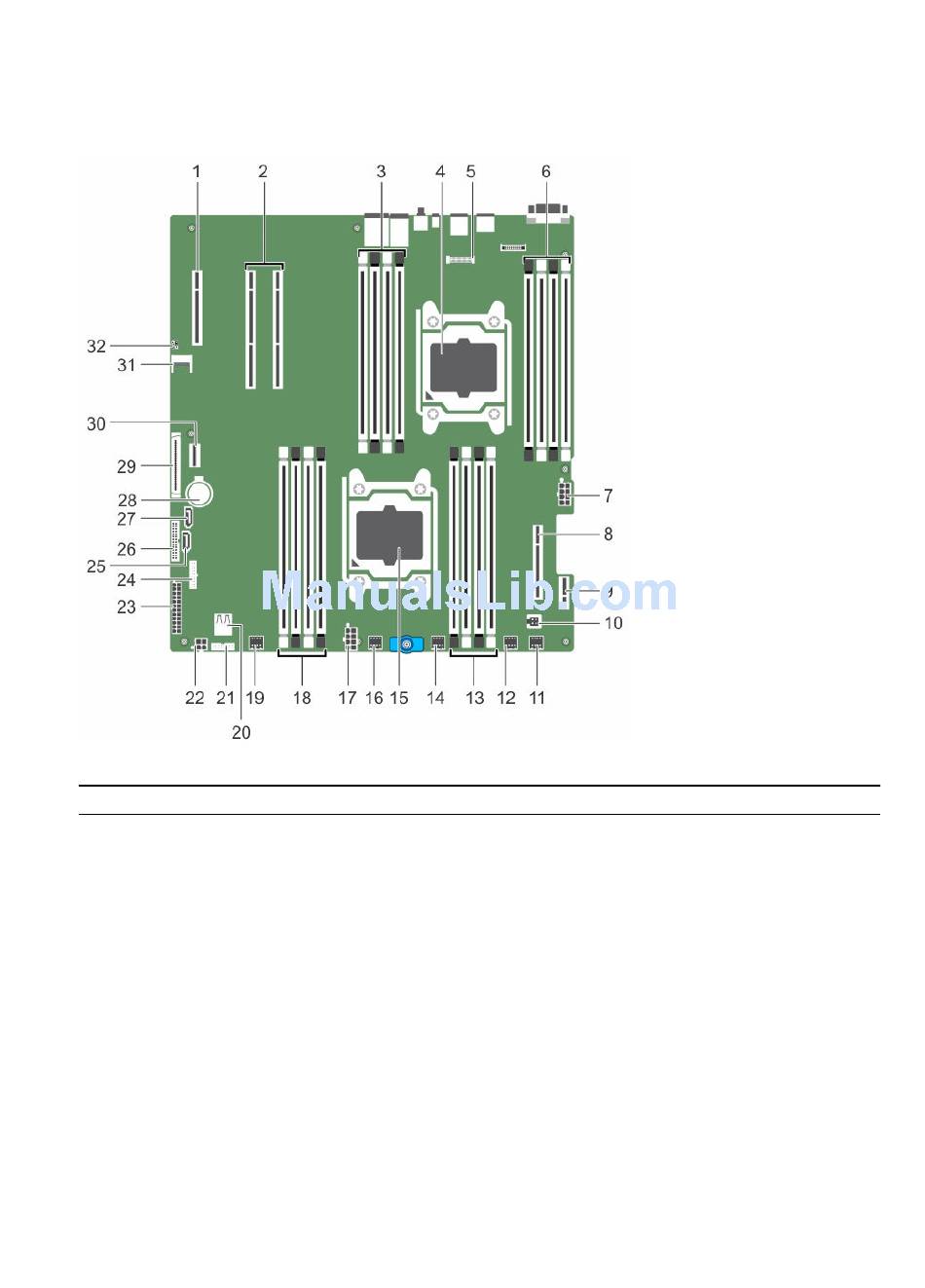

Figure 56. System board connectors and jumpers
Item Connector
1 PCIE _G2_X4 (PCH)
2 PCIE_G3_X16 (CPU1)
3 B1,B5,B2,B6
4 CPU2
5 J-AMEA
6 B8,B4,B7,B3
7 CPU2_PWR_C (P3)
8 Int_PCIE_G3_X8 (CPU2)
9 IDSDM
10 INTRUSION
Description
PCIE Slot 3 (x4)
PCIe Slot 2 and PCIe Slot 1 (PCIe Slot is
closer to the CPU2 socket)
DIMMS for CPU2 channels 0&1
Processor socket 2
iDrac ports card connector
DIMMS for CPU2 channels 2&3
CPU2 power connector
Internal PCIe slot
Internal Dual SD Module
Intrusion switch connector
153
