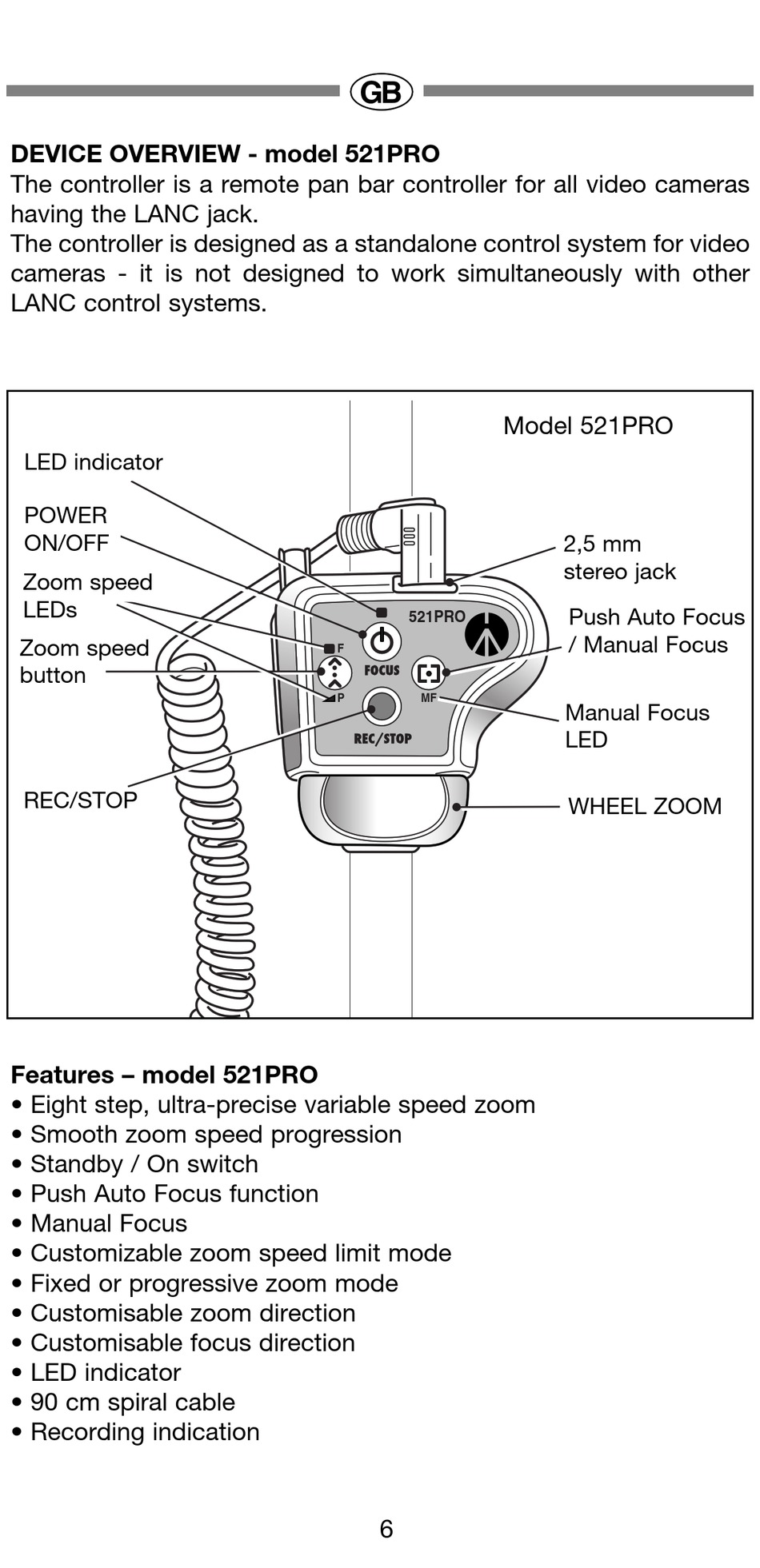

DEVICE OVERVIEW - model 521PRO
The controller is a remote pan bar controller for all video cameras
having the LANC jack.
The controller is designed as a standalone control system for video
cameras - it is not designed to work simultaneously with other
LANC control systems.
LED indicator
LED indicator
POWER
POWER
ON/OFF
ON/OFF
Zoom speed
Zoom speed
LEDs
LEDs
Zoom speed
Zoom speed
button
button
REC/STOP
REC/STOP
Features – model 521PRO
• Eight step, ultra-precise variable speed zoom
• Smooth zoom speed progression
• Standby / On switch
• Push Auto Focus function
• Manual Focus
• Customizable zoom speed limit mode
• Fixed or progressive zoom mode
• Customisable zoom direction
• Customisable focus direction
• LED indicator
• 90 cm spiral cable
• Recording indication
GB
521PRO
F
P MF
6
Model 521PRO
2,5 mm
2,5 mm stereo jack
stereo jack
Push Auto
Push Auto Focus
Focus /
/ Manual Focus
Manual Focus
Manual
Manual Focus
Focus LED
LED
WHEEL ZOOM
WHEEL ZOOM
