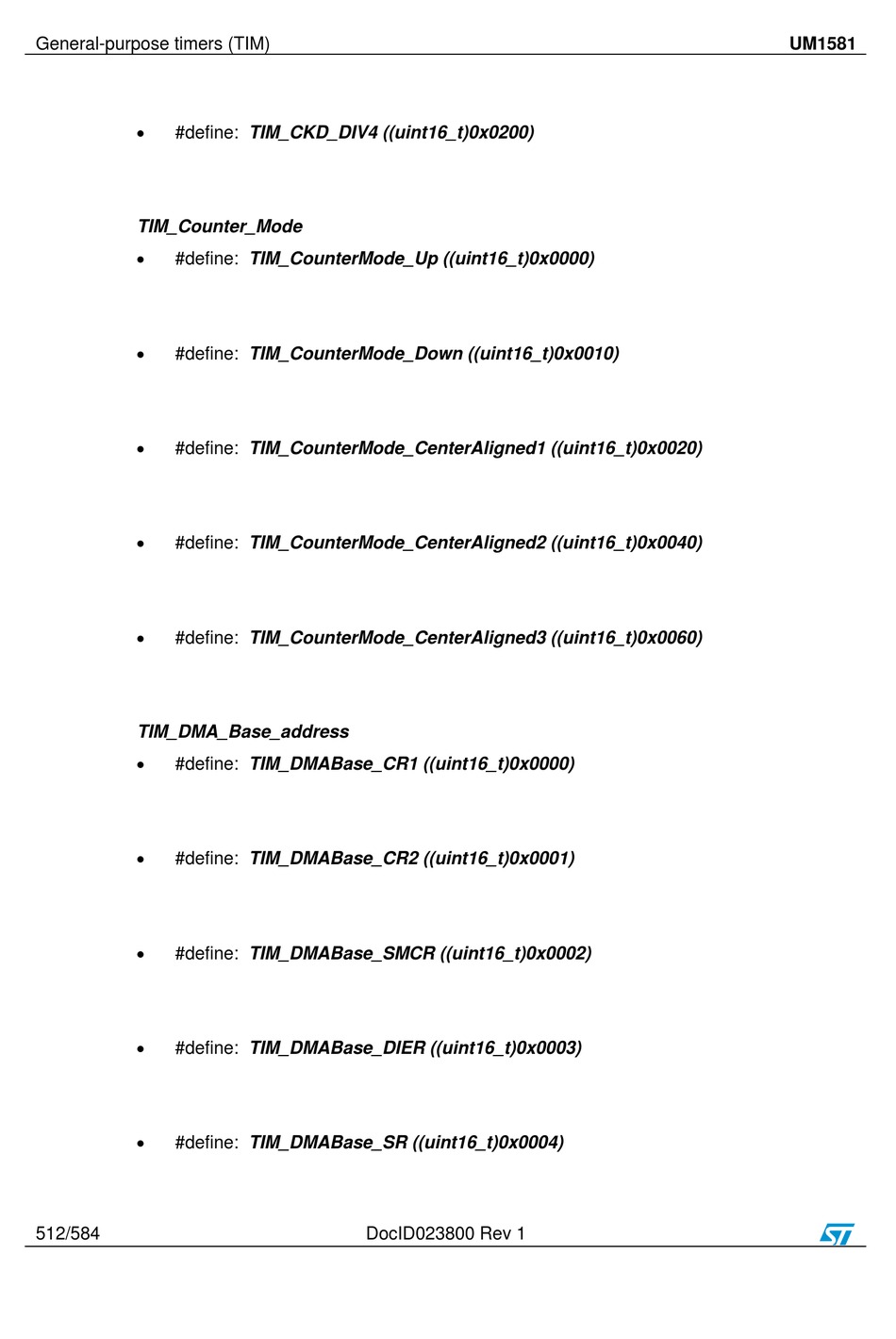

ST STM32F31xx User Manual page 512

General-purpose timers (TIM)

#define: TIM_CKD_DIV4 ((uint16_t)0x0200)
TIM_Counter_Mode

#define: TIM_CounterMode_Up ((uint16_t)0x0000)

#define: TIM_CounterMode_Down ((uint16_t)0x0010)

#define: TIM_CounterMode_CenterAligned1 ((uint16_t)0x0020)

#define: TIM_CounterMode_CenterAligned2 ((uint16_t)0x0040)

#define: TIM_CounterMode_CenterAligned3 ((uint16_t)0x0060)
TIM_DMA_Base_address

#define: TIM_DMABase_CR1 ((uint16_t)0x0000)

#define: TIM_DMABase_CR2 ((uint16_t)0x0001)

#define: TIM_DMABase_SMCR ((uint16_t)0x0002)

#define: TIM_DMABase_DIER ((uint16_t)0x0003)

#define: TIM_DMABase_SR ((uint16_t)0x0004)
