UM1581
5.3

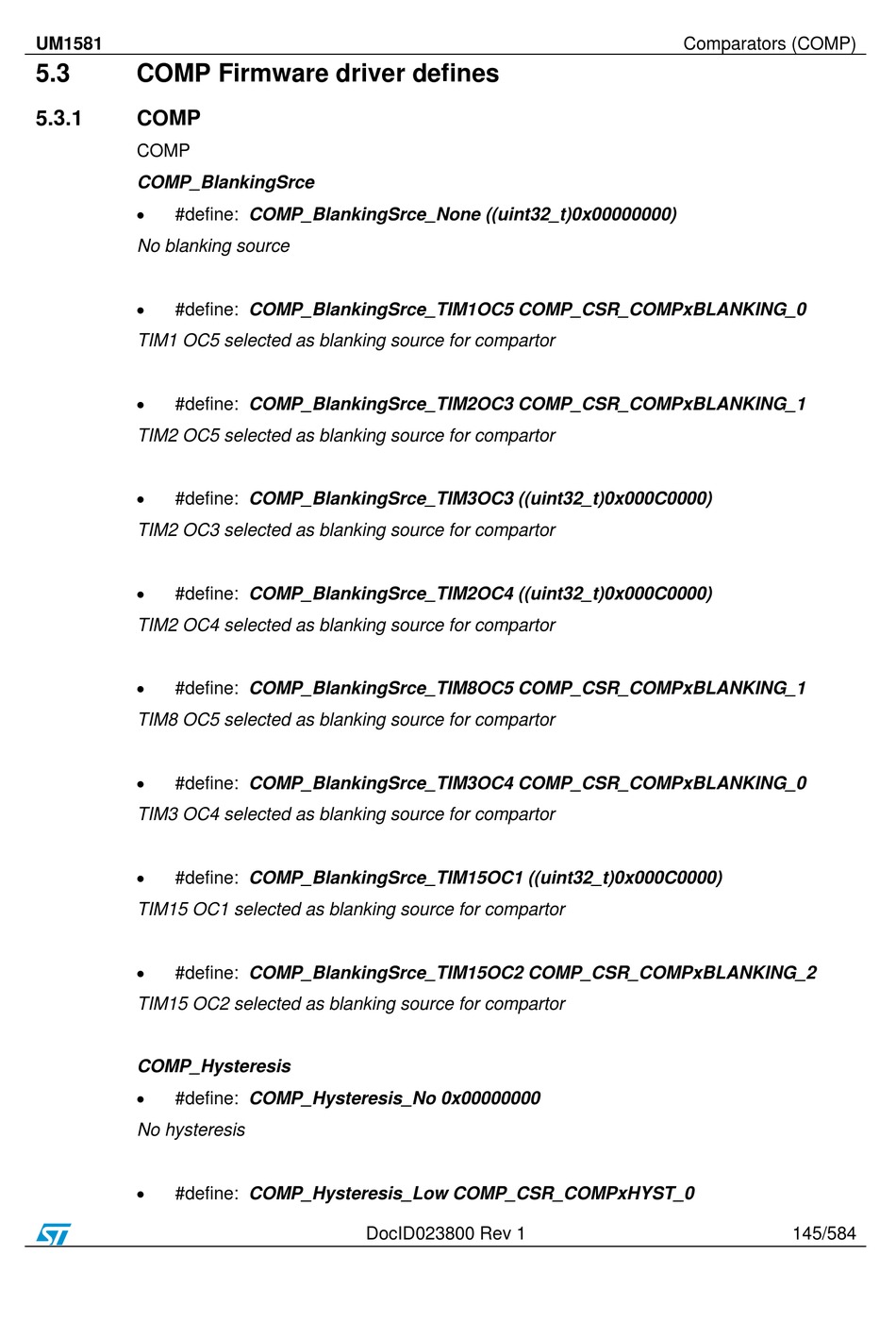

COMP Firmware driver defines

5.3.1

COMP

COMP
COMP_BlankingSrce

#define: COMP_BlankingSrce_None ((uint32_t)0x00000000)
No blanking source

#define: COMP_BlankingSrce_TIM1OC5 COMP_CSR_COMPxBLANKING_0
TIM1 OC5 selected as blanking source for compartor

#define: COMP_BlankingSrce_TIM2OC3 COMP_CSR_COMPxBLANKING_1
TIM2 OC5 selected as blanking source for compartor

#define: COMP_BlankingSrce_TIM3OC3 ((uint32_t)0x000C0000)
TIM2 OC3 selected as blanking source for compartor

#define: COMP_BlankingSrce_TIM2OC4 ((uint32_t)0x000C0000)
TIM2 OC4 selected as blanking source for compartor

#define: COMP_BlankingSrce_TIM8OC5 COMP_CSR_COMPxBLANKING_1
TIM8 OC5 selected as blanking source for compartor

#define: COMP_BlankingSrce_TIM3OC4 COMP_CSR_COMPxBLANKING_0
TIM3 OC4 selected as blanking source for compartor

#define: COMP_BlankingSrce_TIM15OC1 ((uint32_t)0x000C0000)
TIM15 OC1 selected as blanking source for compartor

#define: COMP_BlankingSrce_TIM15OC2 COMP_CSR_COMPxBLANKING_2
TIM15 OC2 selected as blanking source for compartor
COMP_Hysteresis

#define: COMP_Hysteresis_No 0x00000000
No hysteresis

#define: COMP_Hysteresis_Low COMP_CSR_COMPxHYST_0
DocID023800 Rev 1
Comparators (COMP)
145/584
