UM1581
22.1.2

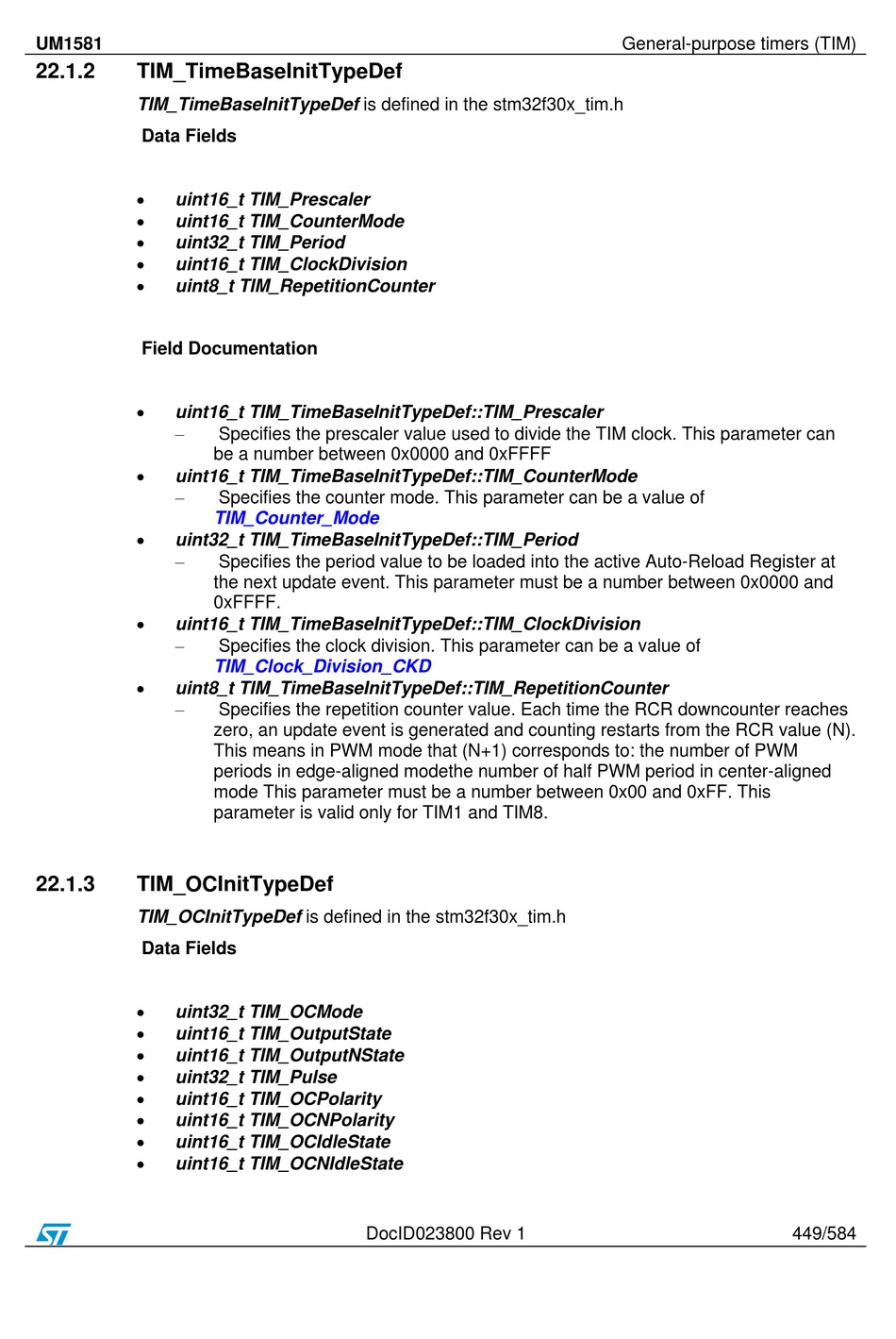

TIM_TimeBaseInitTypeDef

TIM_TimeBaseInitTypeDef is defined in the stm32f30x_tim.h
Data Fields

uint16_t TIM_Prescaler

uint16_t TIM_CounterMode

uint32_t TIM_Period

uint16_t TIM_ClockDivision

uint8_t TIM_RepetitionCounter
Field Documentation

uint16_t TIM_TimeBaseInitTypeDef::TIM_Prescaler


uint16_t TIM_TimeBaseInitTypeDef::TIM_CounterMode


uint32_t TIM_TimeBaseInitTypeDef::TIM_Period


uint16_t TIM_TimeBaseInitTypeDef::TIM_ClockDivision


uint8_t TIM_TimeBaseInitTypeDef::TIM_RepetitionCounter

22.1.3

TIM_OCInitTypeDef

TIM_OCInitTypeDef is defined in the stm32f30x_tim.h
Data Fields

uint32_t TIM_OCMode

uint16_t TIM_OutputState

uint16_t TIM_OutputNState

uint32_t TIM_Pulse

uint16_t TIM_OCPolarity

uint16_t TIM_OCNPolarity

uint16_t TIM_OCIdleState

uint16_t TIM_OCNIdleState
Specifies the prescaler value used to divide the TIM clock. This parameter can
be a number between 0x0000 and 0xFFFF
Specifies the counter mode. This parameter can be a value of
TIM_Counter_Mode
Specifies the period value to be loaded into the active Auto-Reload Register at
the next update event. This parameter must be a number between 0x0000 and
0xFFFF.
Specifies the clock division. This parameter can be a value of
TIM_Clock_Division_CKD
Specifies the repetition counter value. Each time the RCR downcounter reaches
zero, an update event is generated and counting restarts from the RCR value (N).
This means in PWM mode that (N+1) corresponds to: the number of PWM
periods in edge-aligned modethe number of half PWM period in center-aligned
mode This parameter must be a number between 0x00 and 0xFF. This
parameter is valid only for TIM1 and TIM8.
DocID023800 Rev 1
General-purpose timers (TIM)
449/584
