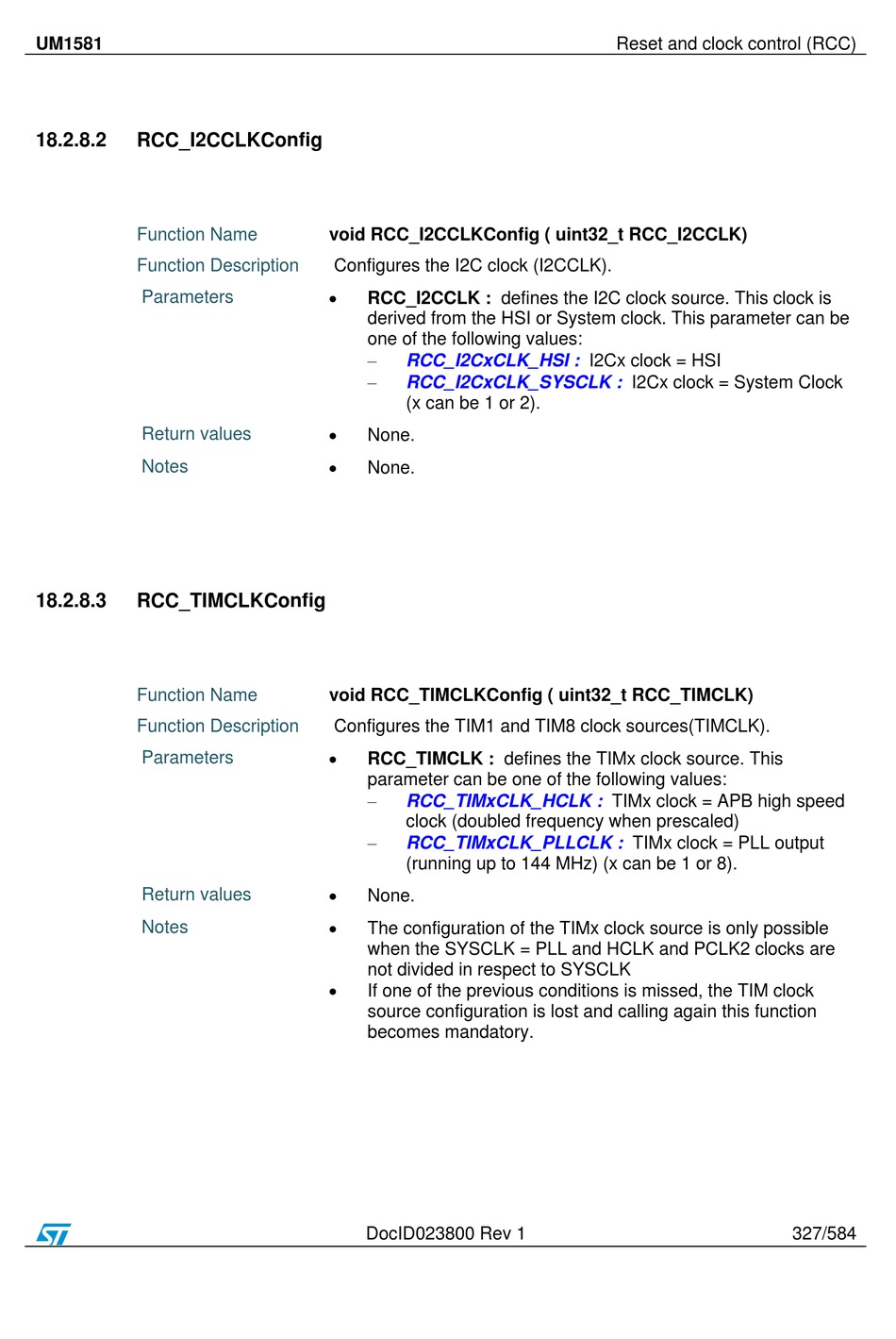

ST STM32F31xx User Manual page 327

UM1581
18.2.8.2 RCC_I2CCLKConfig
Function Name
Function Description
Parameters
Return values
Notes
18.2.8.3 RCC_TIMCLKConfig
Function Name
Function Description
Parameters
Return values
Notes
void RCC_I2CCLKConfig ( uint32_t RCC_I2CCLK)
Configures the I2C clock (I2CCLK).

RCC_I2CCLK : defines the I2C clock source. This clock is
derived from the HSI or System clock. This parameter can be
one of the following values:

RCC_I2CxCLK_HSI :

RCC_I2CxCLK_SYSCLK :
(x can be 1 or 2).

None.

None.
void RCC_TIMCLKConfig ( uint32_t RCC_TIMCLK)
Configures the TIM1 and TIM8 clock sources(TIMCLK).

RCC_TIMCLK : defines the TIMx clock source. This
parameter can be one of the following values:

RCC_TIMxCLK_HCLK :
clock (doubled frequency when prescaled)

RCC_TIMxCLK_PLLCLK :
(running up to 144 MHz) (x can be 1 or 8).

None.

The configuration of the TIMx clock source is only possible
when the SYSCLK = PLL and HCLK and PCLK2 clocks are
not divided in respect to SYSCLK

If one of the previous conditions is missed, the TIM clock
source configuration is lost and calling again this function
becomes mandatory.
DocID023800 Rev 1
Reset and clock control (RCC)
I2Cx clock = HSI
I2Cx clock = System Clock
TIMx clock = APB high speed
TIMx clock = PLL output
327/584
