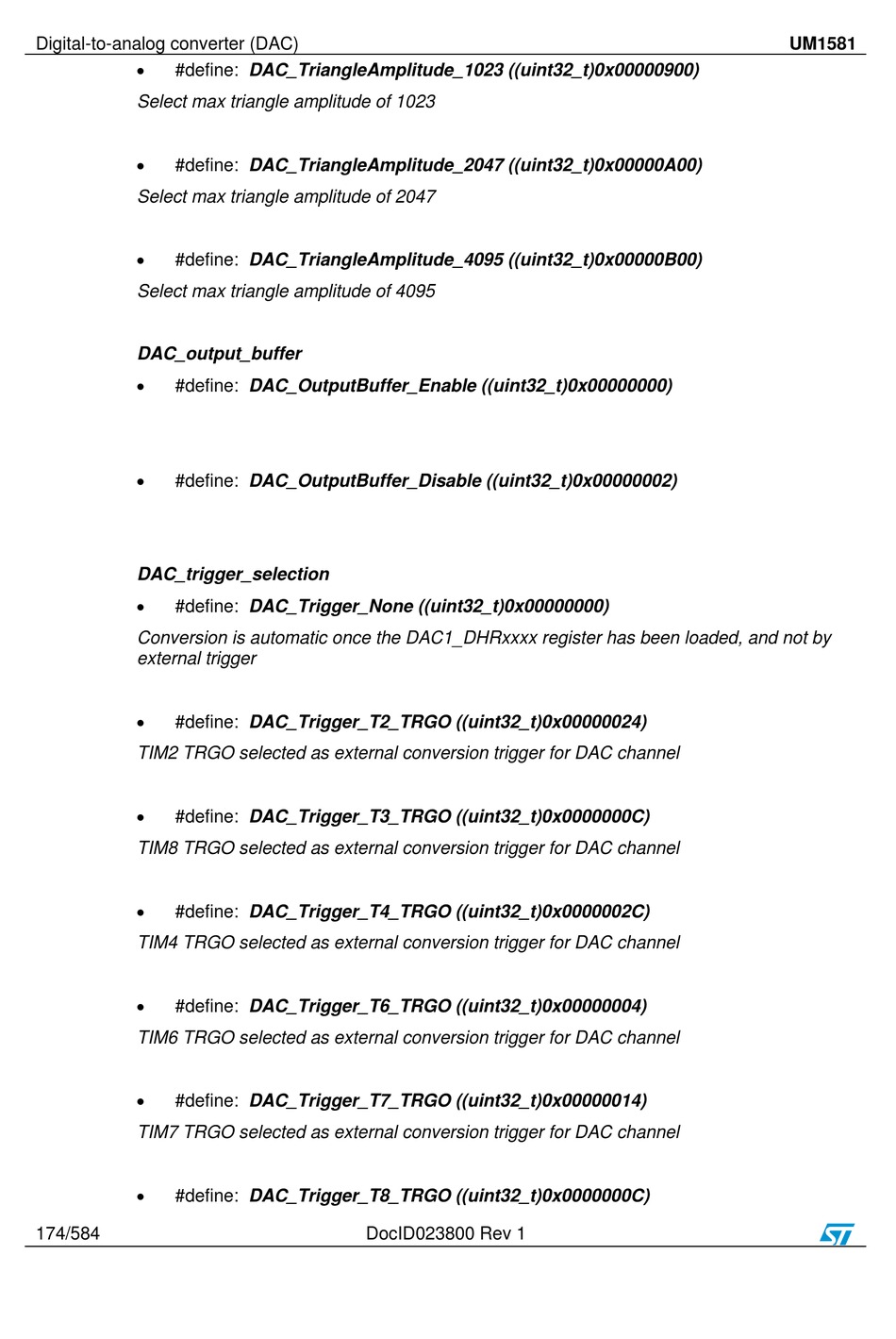

ST STM32F31xx User Manual page 174

Digital-to-analog converter (DAC)

#define: DAC_TriangleAmplitude_1023 ((uint32_t)0x00000900)
Select max triangle amplitude of 1023

#define: DAC_TriangleAmplitude_2047 ((uint32_t)0x00000A00)
Select max triangle amplitude of 2047

#define: DAC_TriangleAmplitude_4095 ((uint32_t)0x00000B00)
Select max triangle amplitude of 4095
DAC_output_buffer

#define: DAC_OutputBuffer_Enable ((uint32_t)0x00000000)

#define: DAC_OutputBuffer_Disable ((uint32_t)0x00000002)
DAC_trigger_selection

#define: DAC_Trigger_None ((uint32_t)0x00000000)
Conversion is automatic once the DAC1_DHRxxxx register has been loaded, and not by
external trigger

#define: DAC_Trigger_T2_TRGO ((uint32_t)0x00000024)
TIM2 TRGO selected as external conversion trigger for DAC channel

#define: DAC_Trigger_T3_TRGO ((uint32_t)0x0000000C)
TIM8 TRGO selected as external conversion trigger for DAC channel

#define: DAC_Trigger_T4_TRGO ((uint32_t)0x0000002C)
TIM4 TRGO selected as external conversion trigger for DAC channel

#define: DAC_Trigger_T6_TRGO ((uint32_t)0x00000004)
TIM6 TRGO selected as external conversion trigger for DAC channel

#define: DAC_Trigger_T7_TRGO ((uint32_t)0x00000014)
TIM7 TRGO selected as external conversion trigger for DAC channel

#define: DAC_Trigger_T8_TRGO ((uint32_t)0x0000000C)
