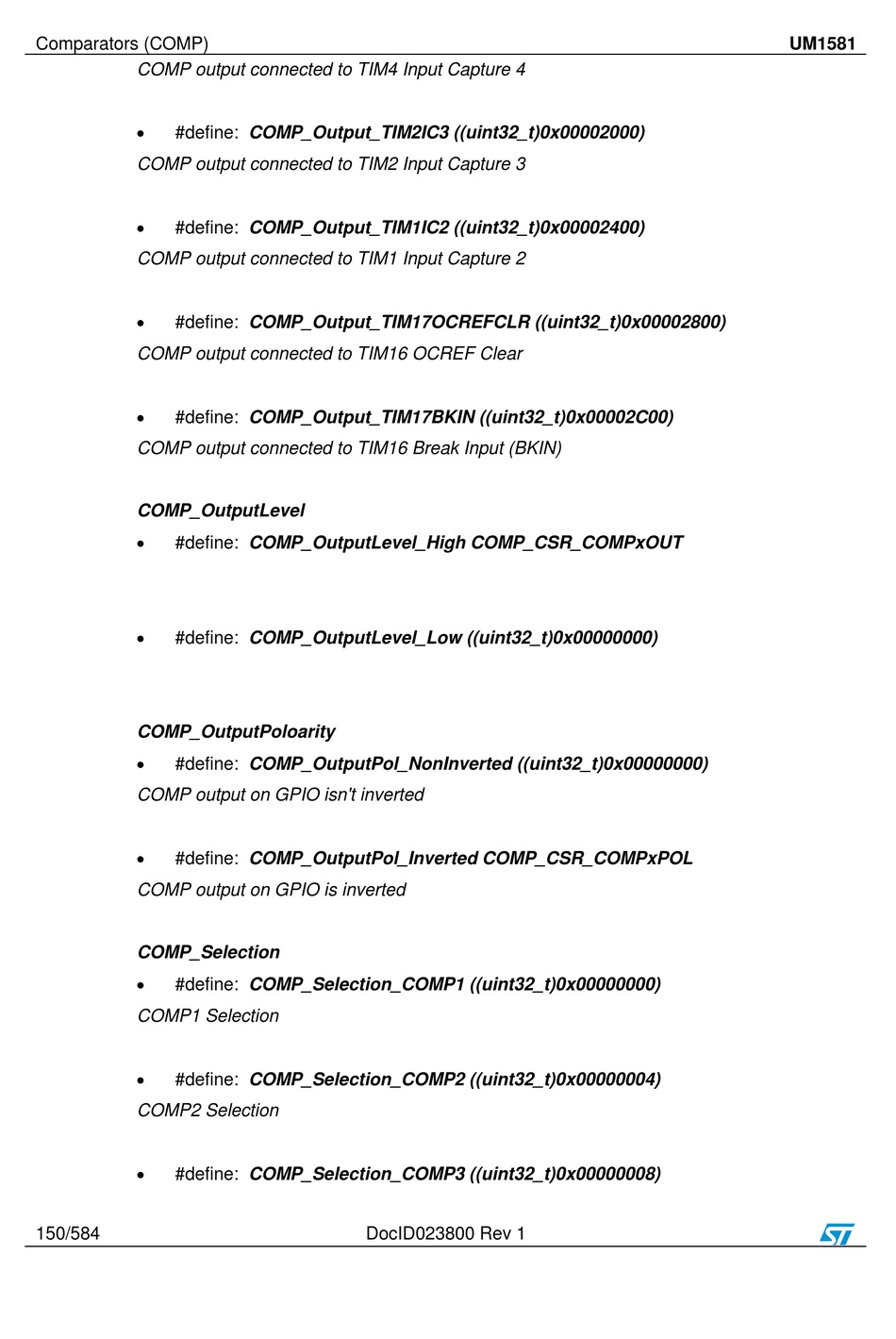

ST STM32F31xx User Manual page 150

Comparators (COMP)
COMP output connected to TIM4 Input Capture 4

#define: COMP_Output_TIM2IC3 ((uint32_t)0x00002000)
COMP output connected to TIM2 Input Capture 3

#define: COMP_Output_TIM1IC2 ((uint32_t)0x00002400)
COMP output connected to TIM1 Input Capture 2

#define: COMP_Output_TIM17OCREFCLR ((uint32_t)0x00002800)
COMP output connected to TIM16 OCREF Clear

#define: COMP_Output_TIM17BKIN ((uint32_t)0x00002C00)
COMP output connected to TIM16 Break Input (BKIN)
COMP_OutputLevel

#define: COMP_OutputLevel_High COMP_CSR_COMPxOUT

#define: COMP_OutputLevel_Low ((uint32_t)0x00000000)
COMP_OutputPoloarity

#define: COMP_OutputPol_NonInverted ((uint32_t)0x00000000)
COMP output on GPIO isn't inverted

#define: COMP_OutputPol_Inverted COMP_CSR_COMPxPOL
COMP output on GPIO is inverted
COMP_Selection

#define: COMP_Selection_COMP1 ((uint32_t)0x00000000)
COMP1 Selection

#define: COMP_Selection_COMP2 ((uint32_t)0x00000004)
COMP2 Selection

#define: COMP_Selection_COMP3 ((uint32_t)0x00000008)
