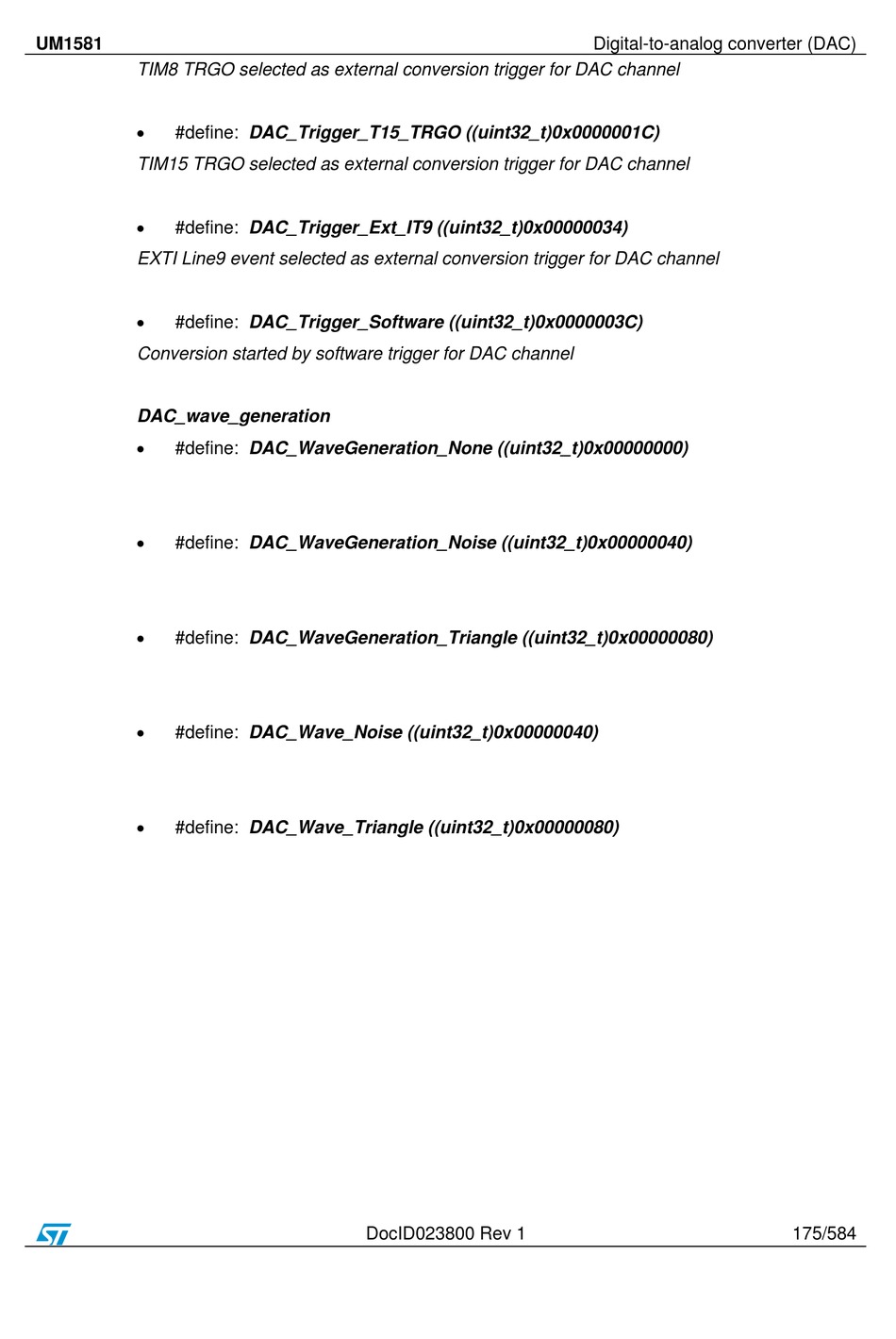

ST STM32F31xx User Manual page 175

UM1581
TIM8 TRGO selected as external conversion trigger for DAC channel

#define: DAC_Trigger_T15_TRGO ((uint32_t)0x0000001C)
TIM15 TRGO selected as external conversion trigger for DAC channel

#define: DAC_Trigger_Ext_IT9 ((uint32_t)0x00000034)
EXTI Line9 event selected as external conversion trigger for DAC channel

#define: DAC_Trigger_Software ((uint32_t)0x0000003C)
Conversion started by software trigger for DAC channel
DAC_wave_generation

#define: DAC_WaveGeneration_None ((uint32_t)0x00000000)

#define: DAC_WaveGeneration_Noise ((uint32_t)0x00000040)

#define: DAC_WaveGeneration_Triangle ((uint32_t)0x00000080)

#define: DAC_Wave_Noise ((uint32_t)0x00000040)

#define: DAC_Wave_Triangle ((uint32_t)0x00000080)
DocID023800 Rev 1
Digital-to-analog converter (DAC)
175/584
